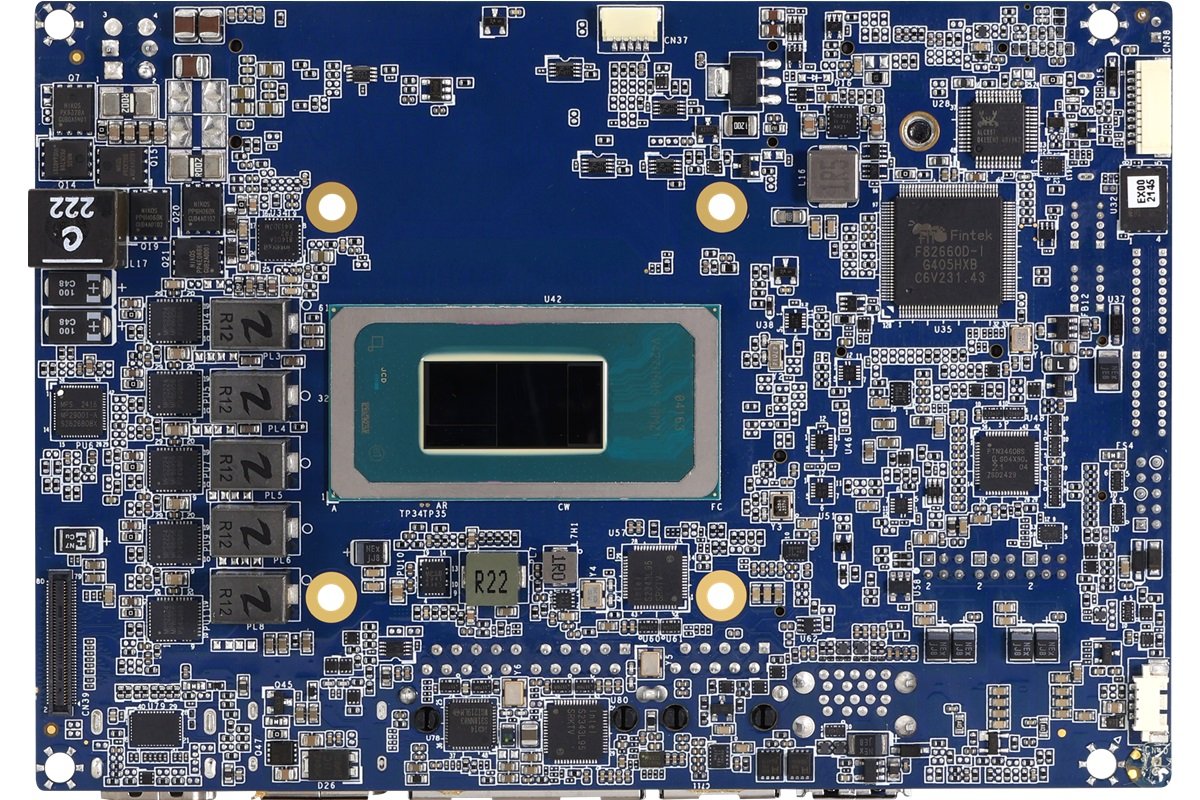

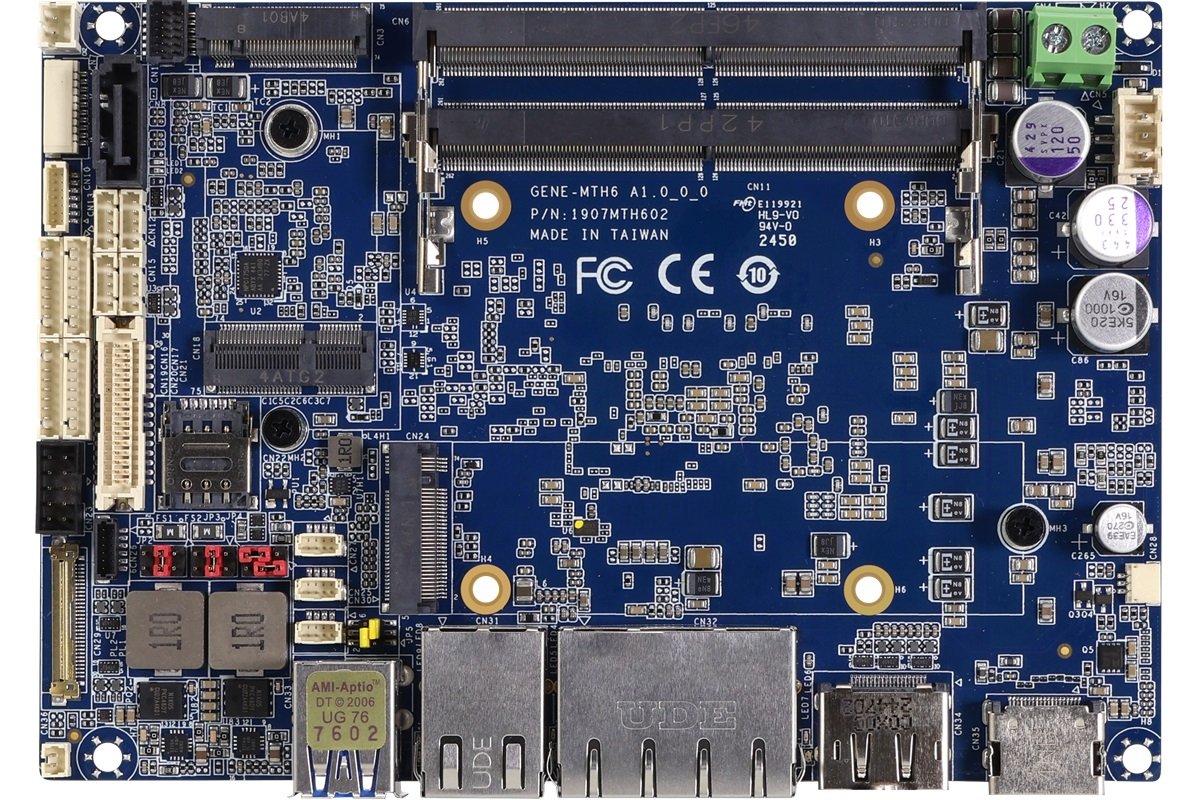

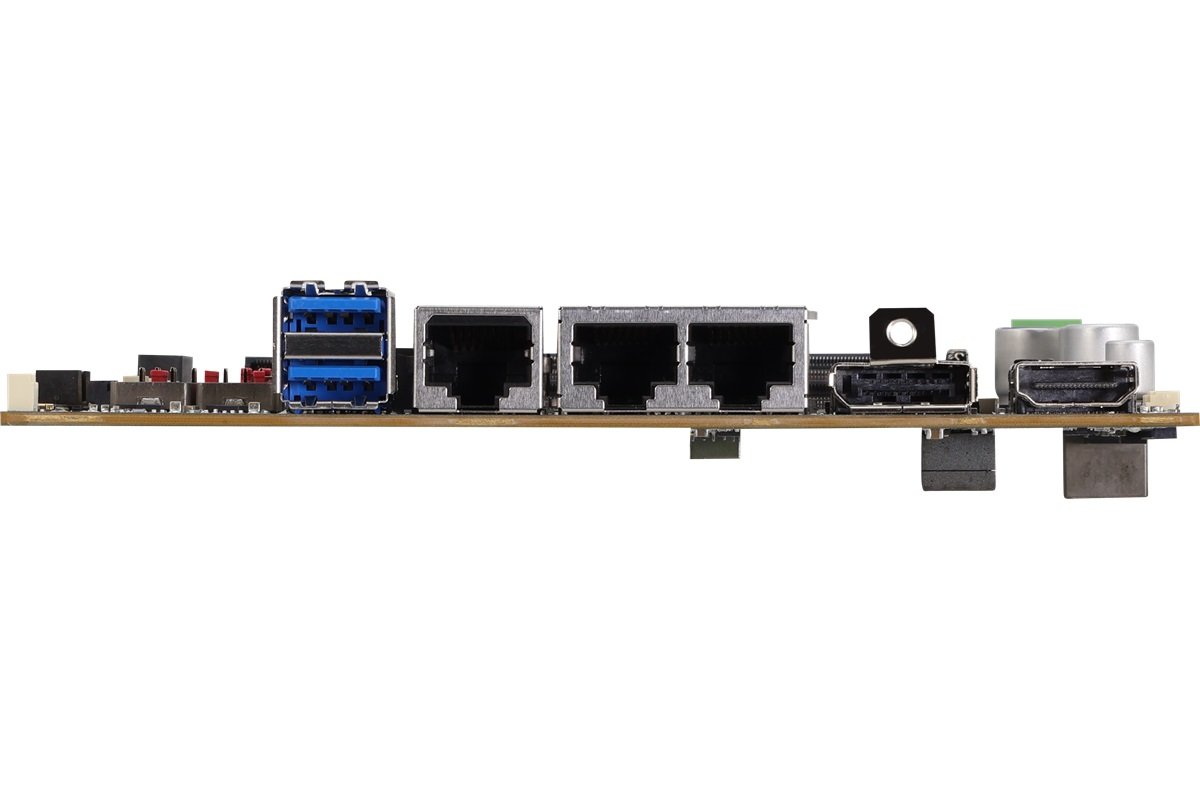

GENE-MTH6
3.5" SubCompact Board with Intel® Core™ Ultra SoC
Key features:
- Intel® Core™ Ultra processors (Series 1)
- DDR5 5600 MHz, Dual Channel SODIMM x 2, up to 96GB
- LVDS x 1, eDP x 1, DP x 1, HDMI x 1
- LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9 ~ 36V
| PART NUMBER | GENE-MTH6-A10-0001 | GENE-MTH6-A10-0002 | GENE-MTH6-A10-0003 |
|---|---|---|---|
| CPU | Intel® Core™ Ultra 7 Processor 155H | Intel® Core™ Ultra 5 Processor 125H | Intel® Core™ Ultra 7 Processor 155U |
| Display | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 |
| LAN | GbE x 1 2.5GbE x 2 | GbE x 1 2.5GbE x 2 | GbE x 1 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| Audio | Line-in/Line-out/MIC | Line-in/Line-out/MIC | Line-in/Line-out/MIC |
| COM | 4 | 4 | 4 |
| Storage | SATA x 1 | SATA x 1 | SATA x 1 |
| Expansion Slot | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 FPC2 x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 FPC2 x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 FPC2 x 1 |
| TPM | 2.0 | 2.0 | 2.0 |
| Power | 9~36V | 9~36V | 9~36V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| Others | Nano SIM, GPIO x 8, SMBUS | Nano SIM, GPIO x 8, SMBUS | Nano SIM, GPIO x 8, SMBUS |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-MTH6
Product information "GENE-MTH6"
3.5" SubCompact Board with Intel® Core™ Ultra SoC
Key features:
- Intel® Core™ Ultra processors (Series 1)
- DDR5 5600 MHz, Dual Channel SODIMM x 2, up to 96GB
- LVDS x 1, eDP x 1, DP x 1, HDMI x 1
- LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9 ~ 36V
| PART NUMBER | GENE-MTH6-A10-0001 | GENE-MTH6-A10-0002 | GENE-MTH6-A10-0003 |
|---|---|---|---|
| CPU | Intel® Core™ Ultra 7 Processor 155H | Intel® Core™ Ultra 5 Processor 125H | Intel® Core™ Ultra 7 Processor 155U |
| Display | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 | HDMI x 1 DP x 1 LVDS x 1 eDP x 1 |
| LAN | GbE x 1 2.5GbE x 2 | GbE x 1 2.5GbE x 2 | GbE x 1 2.5GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| Audio | Line-in/Line-out/MIC | Line-in/Line-out/MIC | Line-in/Line-out/MIC |
| COM | 4 | 4 | 4 |
| Storage | SATA x 1 | SATA x 1 | SATA x 1 |
| Expansion Slot | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 FPC2 x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 FPC2 x 1 | M.2 2280 M-Key x 1 M.2 3052 B-Key x 1 M.2 2230 E-Key x 1 FPC2 x 1 |
| TPM | 2.0 | 2.0 | 2.0 |
| Power | 9~36V | 9~36V | 9~36V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| Others | Nano SIM, GPIO x 8, SMBUS | Nano SIM, GPIO x 8, SMBUS | Nano SIM, GPIO x 8, SMBUS |
| CPU: | Ultra 5 Processor 125H, Ultra 5 Processor 125U, Ultra 7 Processor 155H, Ultra 7 Processor 155U |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 2x 48GB |
| Display : | DP2.0, HDMI, LVDS, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB 3.2 Gen 2 x2, USB 2.0 (Pin headers) x4 |
| Expansion : | M.2 2230 E-Key x 1, M.2 2280 M-key x 1, M.2 3052 B-key x 1 |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 2, i219 x1, i219, 1GbE RJ-45 x 1, i226 |
