LED Backlight Drivers
Smart LED Backlight Drivers for TFT Displays: Configurable LED Converters for High-Bright and NVIS Backlights, with Dimming up to 15,000:1
The majority of TFT LCD’s now have LED backlights rather than the original CCFL tubes. We also find that many displays are now supplied with integrated LED backlight drivers which allow for easier integration.
However, certain markets require more control and for that reason certain hi-rel displays are still supplied where a separate LED backlight driver is needed. Also, where displays have a modified backlight (perhaps High bright or NVIS) the original converter cannot be used.Â
To support these applications we have developed our own range of Smart LED Converters to provide the best control over modern LED backlights, and allow the customer to configure the backlight converter to their exact needs.

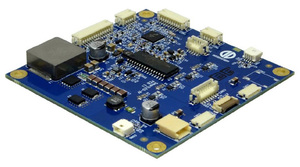

FORTEC UK designs and manufactures its own Smart LED backlight drivers (converters) for TFT LCD displays: the Smart LED-II (40W), Smart LED-IIIB (17W) and Smart LED-IV (45W), with inputs from 8 to 28V and dimming ratios up to 15,000:1. They are needed where a display is supplied without an integrated driver, as with some high-reliability displays, or where the backlight has been modified (for example high-bright or NVIS) and the original converter can’t be used. Each driver can be configured to a range of TFT displays using the Smart LED Rover software over UART, works as both a brightness control and a temperature monitor, and operates from -30 to +80°C.
The Smart LED Backlight Drivers:Â
- Configurable (using Smart LED Rover software) to a range of TFT displaysÂ
- Usable as a temperature monitor and brightness controlÂ
- Have a wide temperature range of -30 to + 80°CÂ
- Dimming: Smart LED-II = 10,000:1, Smart LED-III = 6000:1, Smart LED-IV = 15,000:1Â
- Operating Temperature of -30 to + 80°CÂ
- Communicates with the converter via UARTÂ
For more information on our LED Backlight Drivers please contact us today on 01480 411600 to see how we can help you find the perfect display solution.
Our range of LED Backlight Drivers
| Converter Type | Configurable Control Range | Input(Vcc in) | Output | Current/Channel | Total Power(Max) |
| Smart LED-II | 0-100% / 8-bit Max 0-5V | 11-16V | 7-10V | 200-2300mA 2 Rails | 40W |
| Smart LED-IIIB |
0-100% / 8-bit Max 0-5V | 10-28V | 9-40V | 30-260mA 4 Rails | 17W |
| Smart LED-IV |
0-100% / 8-bit
Max 0-5V | 8-28V | 30-60V | 30-500mA 4 Rails | 45W |
