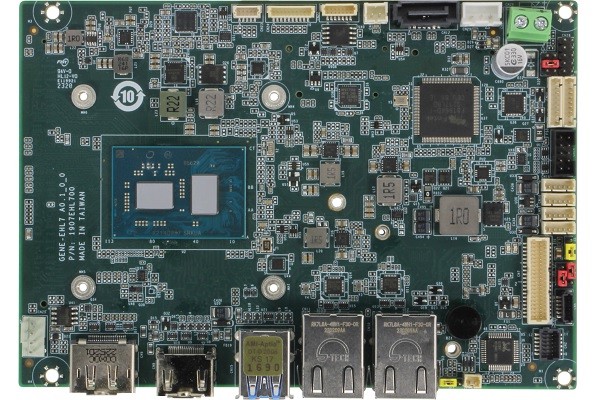

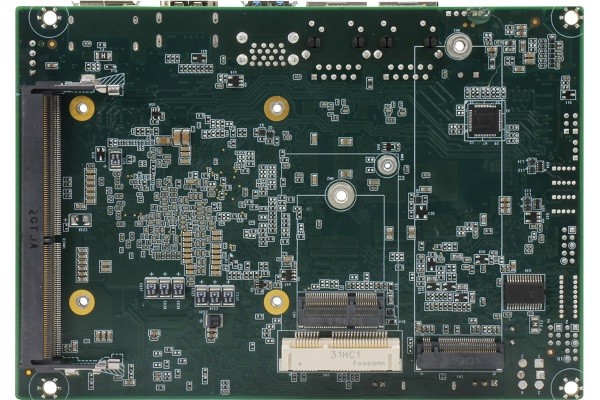

GENE-EHL7
SubCompact Board with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Processors
Key features:
- DDR4 3200MHz SODIMM x 1, up to 32GB

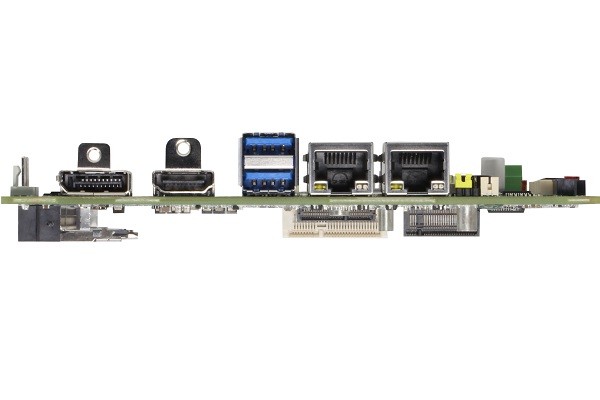

- HDMI 1.4 x 1, DP 1.4 x 1, LVDS/eDP x 1
- GbE x 2, SATA 6.0 Gb/s x 1, GPIO x 8-bit
- USB 3.2 Gen 2 x 2, USB 2.0 x 4, RS-232/422/485 x 1, RS-232 x 1
- Mini PCIe Card x 1, M.2 2230 E-Key x 1, M.2 2280 M-Key x 1
| PART NUMBER | GENE-EHL7-A10-0001 | GENE-EHL7-A10-0002 | GENE-EHL7-A10-0003 |
|---|---|---|---|
| CPU | N6210 | J6412 | x6413E |
| DISPLAY | DP x 1, HDMI x 1,LVDS x 1 | DP x 1, HDMI x 1,LVDS x 1 | DP x 1, HDMI x 1,LVDS x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| RS-232 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 |
| STORAGE | SATA x 1 | SATA x 1 | SATA x 1 |
| EXPANSION SLOT | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 mPCIe (Full size)x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 mPCIe (Full size)x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 mPCIe (Full size)x 1 |
| TPM | 2.0 | 2.0 | 2.0 |
| POWER | 12V | 12V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | Audio, DIO, SMBUS | Audio, DIO, SMBUS | Audio, DIO, SMBUS |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-EHL7
Product information "GENE-EHL7"
SubCompact Board with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Processors
Key features:
- DDR4 3200MHz SODIMM x 1, up to 32GB
- HDMI 1.4 x 1, DP 1.4 x 1, LVDS/eDP x 1
- GbE x 2, SATA 6.0 Gb/s x 1, GPIO x 8-bit
- USB 3.2 Gen 2 x 2, USB 2.0 x 4, RS-232/422/485 x 1, RS-232 x 1
- Mini PCIe Card x 1, M.2 2230 E-Key x 1, M.2 2280 M-Key x 1
| PART NUMBER | GENE-EHL7-A10-0001 | GENE-EHL7-A10-0002 | GENE-EHL7-A10-0003 |
|---|---|---|---|
| CPU | N6210 | J6412 | x6413E |
| DISPLAY | DP x 1, HDMI x 1,LVDS x 1 | DP x 1, HDMI x 1,LVDS x 1 | DP x 1, HDMI x 1,LVDS x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| RS-232 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 |
| STORAGE | SATA x 1 | SATA x 1 | SATA x 1 |
| EXPANSION SLOT | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 mPCIe (Full size)x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 mPCIe (Full size)x 1 | M.2 2280 M-Key x 1 M.2 2230 E-Key x 1 mPCIe (Full size)x 1 |
| TPM | 2.0 | 2.0 | 2.0 |
| POWER | 12V | 12V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | Audio, DIO, SMBUS | Audio, DIO, SMBUS | Audio, DIO, SMBUS |
| CPU: | J6413E, N6210, x6413E |
|---|---|
| Processor Family: | Intel® Atom®, Intel® Celeron®, Intel® Pentium® |
| Memory : | 32GB |
| Display : | Display Port, HDMI, LVDS, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2230 E-Key x 1, M.2 2280 M-key x 1 |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 1GbE RJ-45 x 2, RTL8111H |
