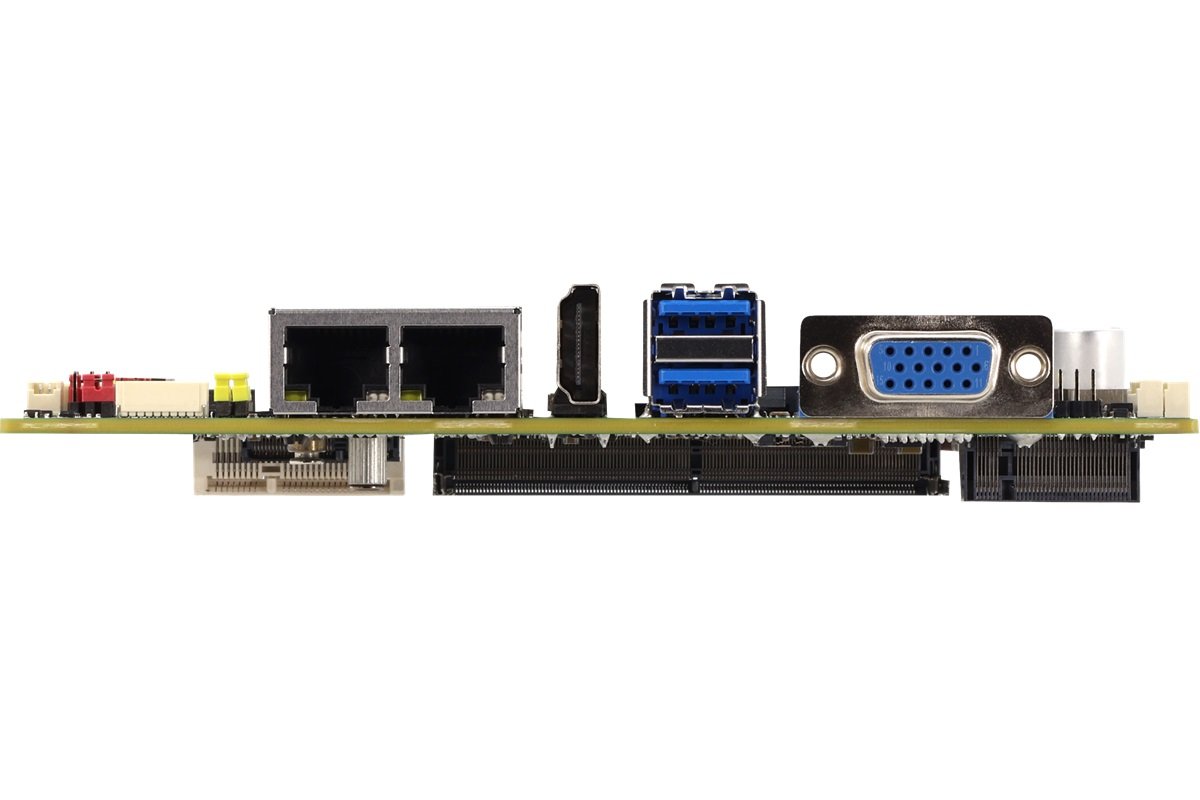

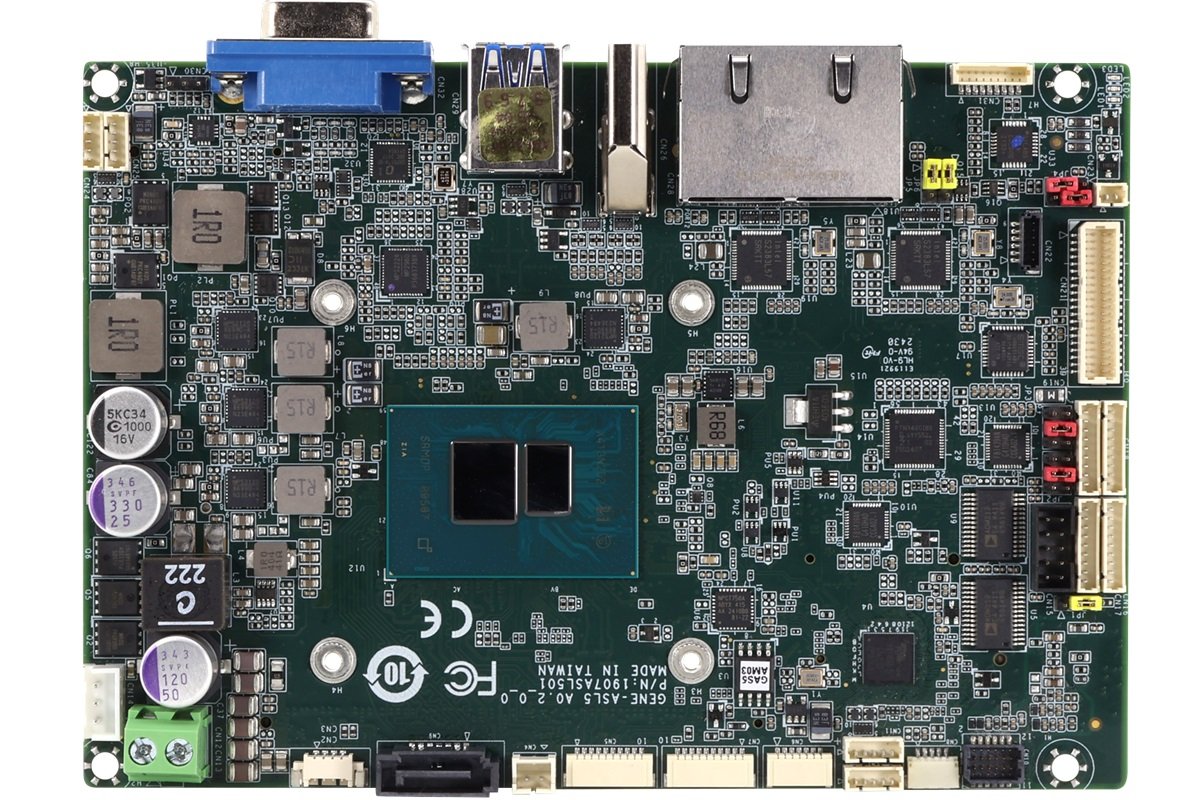

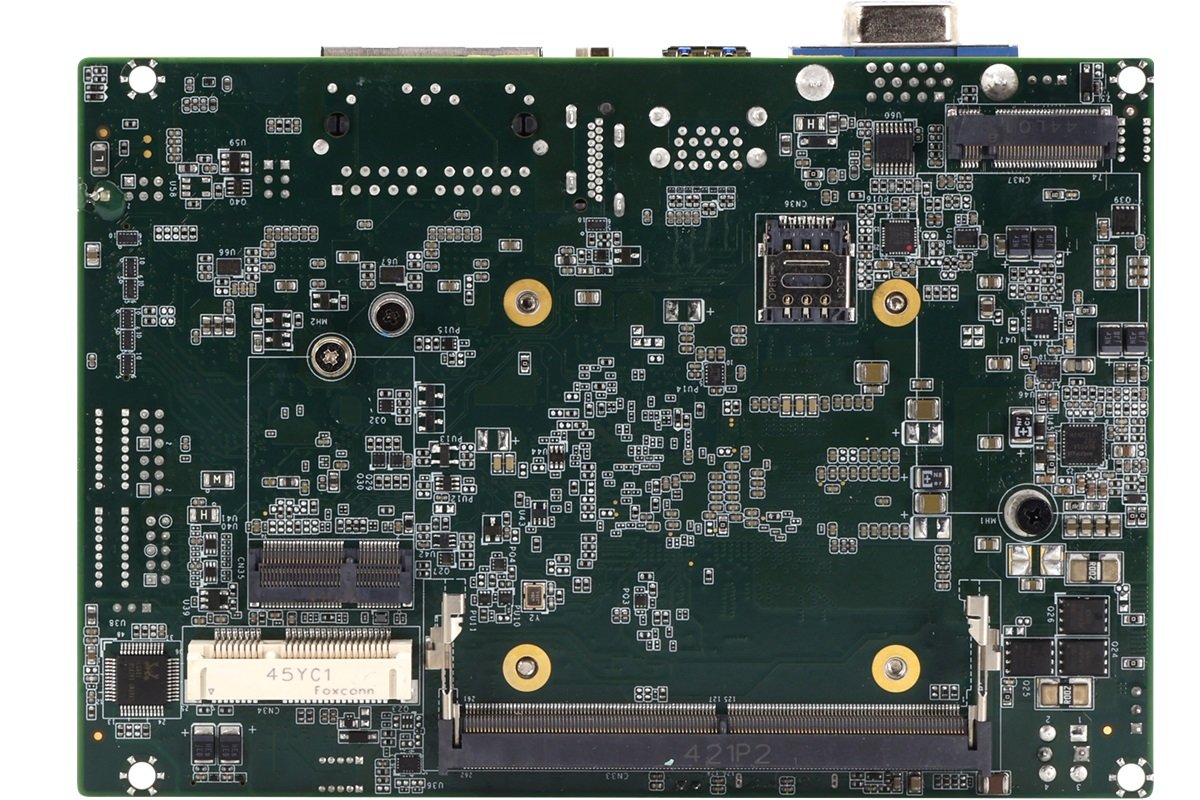

GENE-ASL5
3.5" SubCompact Board with Intel Atom® Processors x7000RE Series Processors
Key features:
- Intel Atom® Processors x7000RE Series Processors
- DDR5 4800 MHz, Dual Channel SODIMM x 1, Up to 16GB
- LVDS Dual Channel 18/24 bit x 1, VGA x 1, HDMI x 1
- Intel® 2.5GbE x 2 , SATA III x 1, GPIO x 8bit
- USB 3.2 Gen2 x 2 , USB2.0 x 4
- Full size mPCIe/mSATA
- M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9-36V
- Supports WiTAS
| PART NUMBER | GENE-ASL5W2-A10-0001 | GENE-ASL5W2-A10-0002 | GENE-ASL5W2-A10-0003 |
|---|---|---|---|
| CPU | Intel Atom® x7433RE | Intel Atom® x7213RE | Intel Atom® x7835RE |
| Display | VGA x 1 HDMI x 1 LVDS x 1 | VGA x 1 HDMI x 1 LVDS x 1 | VGA x 1 HDMI x 1 LVDS x 1 |
| LAN | 2.5GbE x 2 | 2.5GbE x 2 | 2.5GbE x 2 |
| COM | 4 | 4 | 4 |
| Storage | SATA x 1 | SATA x 1 | SATA x 1 |
| Expansion Slot | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 |
| TPM | 2.0 | 2.0 | 2.0 |
| Power | 9~36V | 9~36V | 9~36V |
| Temp | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Others | GPIO x 8, Touch Controller, SMBUS | GPIO x 8, Touch Controller, SMBUS | GPIO x 8, Touch Controller, SMBUS |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-ASL5
Product information "GENE-ASL5"
3.5" SubCompact Board with Intel Atom® Processors x7000RE Series Processors
Key features:
- Intel Atom® Processors x7000RE Series Processors
- DDR5 4800 MHz, Dual Channel SODIMM x 1, Up to 16GB
- LVDS Dual Channel 18/24 bit x 1, VGA x 1, HDMI x 1
- Intel® 2.5GbE x 2 , SATA III x 1, GPIO x 8bit
- USB 3.2 Gen2 x 2 , USB2.0 x 4
- Full size mPCIe/mSATA
- M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9-36V
- Supports WiTAS
| PART NUMBER | GENE-ASL5W2-A10-0001 | GENE-ASL5W2-A10-0002 | GENE-ASL5W2-A10-0003 |
|---|---|---|---|
| CPU | Intel Atom® x7433RE | Intel Atom® x7213RE | Intel Atom® x7835RE |
| Display | VGA x 1 HDMI x 1 LVDS x 1 | VGA x 1 HDMI x 1 LVDS x 1 | VGA x 1 HDMI x 1 LVDS x 1 |
| LAN | 2.5GbE x 2 | 2.5GbE x 2 | 2.5GbE x 2 |
| COM | 4 | 4 | 4 |
| Storage | SATA x 1 | SATA x 1 | SATA x 1 |
| Expansion Slot | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 | M.2 B-Key 3052 x 1 M.2 E-Key 2230 x 1 MiniCard x1 |
| TPM | 2.0 | 2.0 | 2.0 |
| Power | 9~36V | 9~36V | 9~36V |
| Temp | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Others | GPIO x 8, Touch Controller, SMBUS | GPIO x 8, Touch Controller, SMBUS | GPIO x 8, Touch Controller, SMBUS |
| CPU: | x7213RE, x7433RE, x7835RE |
|---|---|
| Processor Family: | Intel® Atom® |
| Memory : | 16GB |
| Display : | HDMI, LVDS, VGA, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB 3.2 Gen 2 x2, USB 2.0 (Pin headers) x4 |
| Expansion : | M.2 2230 E-Key x 1, M.2 3052 B-key x 1 |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | -40 to +85 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 2, i226 |
