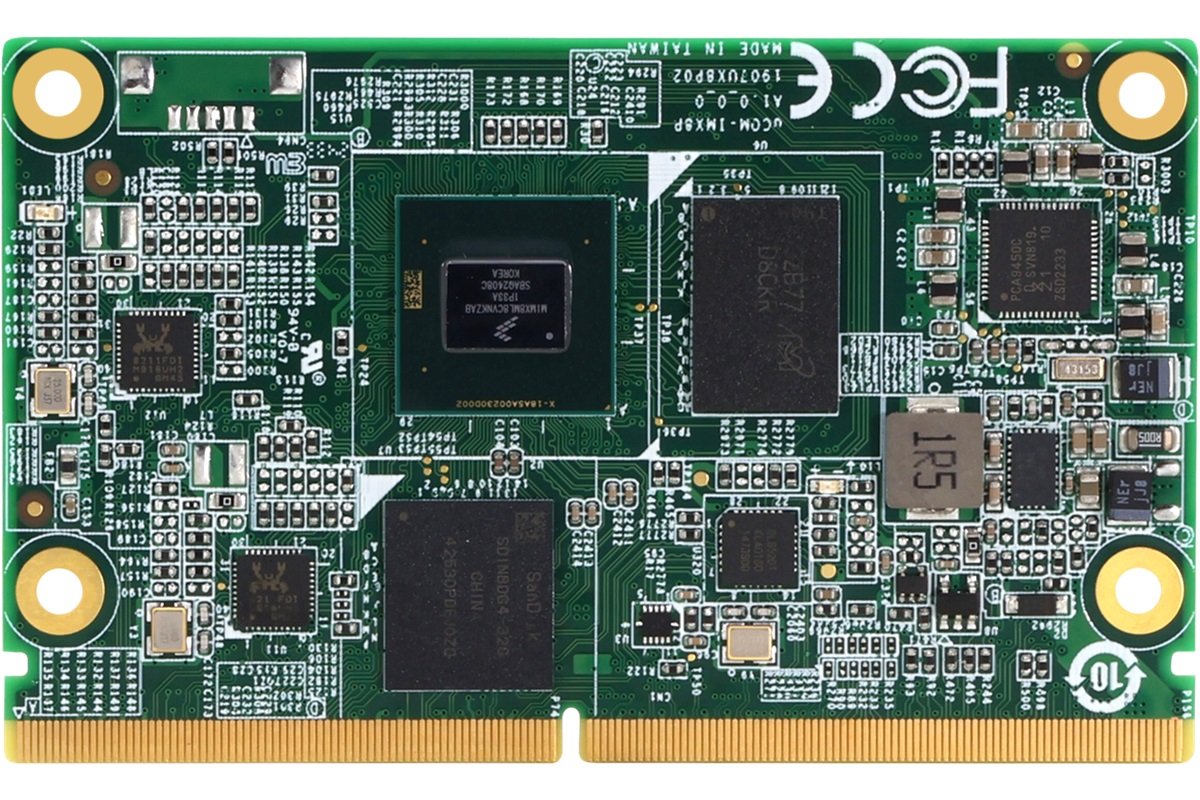

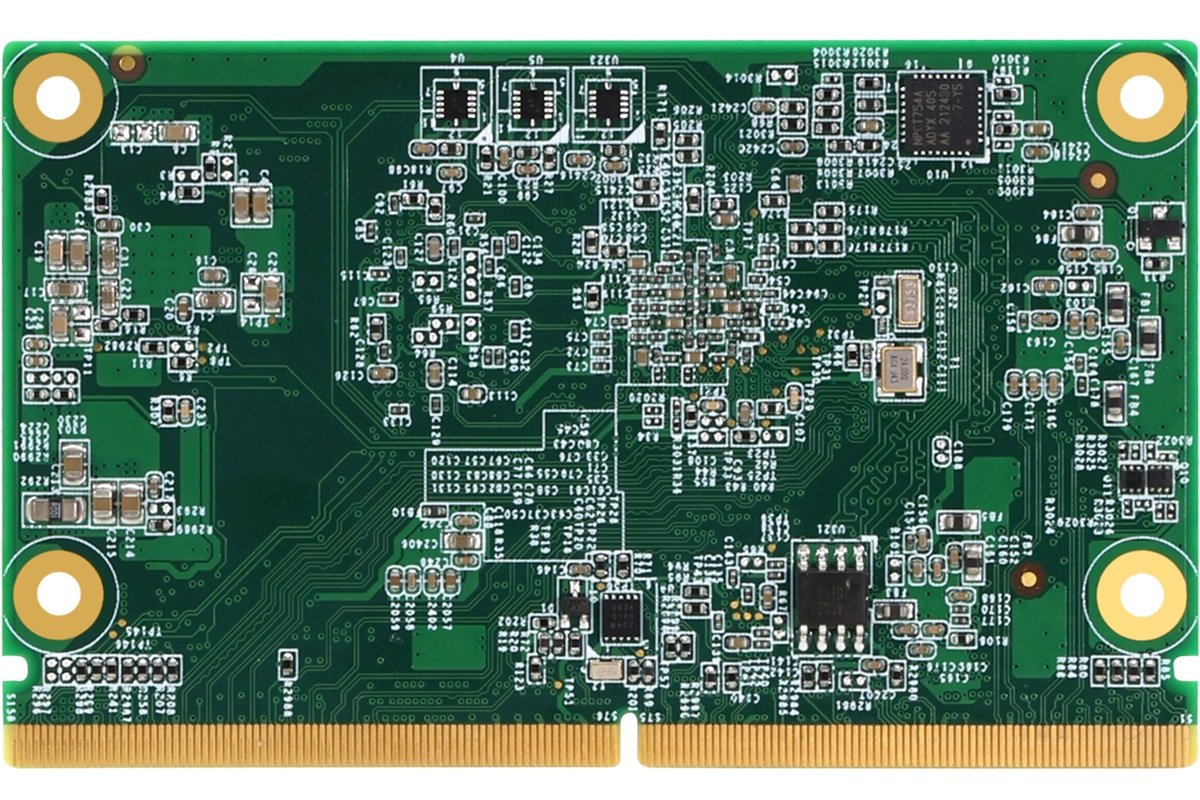

uCOM-IMX8P
SMARC CPU Module with NXP ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor
Key features:
- ARM NXP i.MX 8M Plus - Arm® Cortex®-A53, Cortex-M7, up to 1.6GHz per core
- Onboard LPDDR4, Up to 4GB
- HDMI2.0a x 1, LVDS x 1, MIPI-DSI 4 Lane x 1 (By request)
- GbE x 2
- USB 3.0 Gen1 x 2, USB 2.0 x 3 (support OTG x 1)
- PCIe Gen3 x 1
- UART x 4, GPIO x 14, CAN FD x 2, TPM 2.0
| PART NUMBER | uCOM-IMX8P-A11-0001 | uCOM-IMX8P-A11-0002 |
|---|---|---|
| Form Factor | SMARC | SMARC |
| CPU | ARM NXP i.MX8M Plus Quad- Core Cortex-A53 1.6GHz Processor (2.3 TOPs) | ARM NXP i.MX8M Plus Quad- Core Cortex-A53 1.6GHz Processor (2.3 TOPs) |
| Memory | Onboard LPDDR4 2GB | Onboard LPDDR4 4GB |
| ECC Support | — | — |
| Display | HDMI 2.0a x 1 LVDS x 1 (2 CH, 18/24bit) | HDMI 2.0a x 1 LVDS x 1 (2 CH, 18/24bit) |
| Storage | 16GB eMMC | 32GB eMMC |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB3.0 Gen1 + USB 2.0 x 2 (Host) USB 2.0 x 2 (Host) USB 2.0 x 1 (OTG) | USB3.0 Gen1 + USB 2.0 x 2 (Host) USB 2.0 x 2 (Host) USB 2.0 x 1 (OTG) |
| UART | 4-wire 1.8V UART x 2 2-wire 1.8V UART x 2 (one for debug port) | 4-wire 1.8V UART x 2 2-wire 1.8V UART x 2 (one for debug port) |
| Expansion | PCIe Gen 3.0 x 1 | PCIe Gen 3.0 x 1 |
| Power | +5V | +5V |
| Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Others | CAN-FD x 2 SPI x 2 I2C x 1(General purpose) GPIO 14 bits (one for PWM) MIPI-CSI x 2 | CAN-FD x 2 SPI x 2 I2C x 1(General purpose) GPIO 14 bits (one for PWM) MIPI-CSI x 2 TPM 2.0 |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
uCOM-IMX8P
Product information "uCOM-IMX8P"
SMARC CPU Module with NXP ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor
Key features:
- ARM NXP i.MX 8M Plus - Arm® Cortex®-A53, Cortex-M7, up to 1.6GHz per core
- Onboard LPDDR4, Up to 4GB
- HDMI2.0a x 1, LVDS x 1, MIPI-DSI 4 Lane x 1 (By request)
- GbE x 2
- USB 3.0 Gen1 x 2, USB 2.0 x 3 (support OTG x 1)
- PCIe Gen3 x 1
- UART x 4, GPIO x 14, CAN FD x 2, TPM 2.0
| PART NUMBER | uCOM-IMX8P-A11-0001 | uCOM-IMX8P-A11-0002 |
|---|---|---|
| Form Factor | SMARC | SMARC |
| CPU | ARM NXP i.MX8M Plus Quad- Core Cortex-A53 1.6GHz Processor (2.3 TOPs) | ARM NXP i.MX8M Plus Quad- Core Cortex-A53 1.6GHz Processor (2.3 TOPs) |
| Memory | Onboard LPDDR4 2GB | Onboard LPDDR4 4GB |
| ECC Support | — | — |
| Display | HDMI 2.0a x 1 LVDS x 1 (2 CH, 18/24bit) | HDMI 2.0a x 1 LVDS x 1 (2 CH, 18/24bit) |
| Storage | 16GB eMMC | 32GB eMMC |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB3.0 Gen1 + USB 2.0 x 2 (Host) USB 2.0 x 2 (Host) USB 2.0 x 1 (OTG) | USB3.0 Gen1 + USB 2.0 x 2 (Host) USB 2.0 x 2 (Host) USB 2.0 x 1 (OTG) |
| UART | 4-wire 1.8V UART x 2 2-wire 1.8V UART x 2 (one for debug port) | 4-wire 1.8V UART x 2 2-wire 1.8V UART x 2 (one for debug port) |
| Expansion | PCIe Gen 3.0 x 1 | PCIe Gen 3.0 x 1 |
| Power | +5V | +5V |
| Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Others | CAN-FD x 2 SPI x 2 I2C x 1(General purpose) GPIO 14 bits (one for PWM) MIPI-CSI x 2 | CAN-FD x 2 SPI x 2 I2C x 1(General purpose) GPIO 14 bits (one for PWM) MIPI-CSI x 2 TPM 2.0 |
| Operating humidity Technical Data: | 0% - 90% relative humidity |
|---|---|
| Power Supply Type Technical Data: | AT/ATX |
| SMBus/I2C Technical Data: | I2C x5 |
| CPU: | Cortex®-A53 Processor, 1.6GHz |
| Processor Family: | NXP ARM i.MX8M Plus Quad-Core |
| Memory : | LPDDR4 |
| Memory : | LPDDR4, up to 4GB x1 |
| Display : | HDMI / LVDS |
| Ethernet Ports: | 1-2 |
| Storage : | eMMC 5.1, 16/32GB x1 |
| USB Ports: | USB 3.0 Gen 1+USB 2.0 x2 (Host), USB 2.0 x2 (Host), USB 2.0 x1 (OTG) |
| Serial Ports: | 3 - 4 |
| USBs: | 5-8 |
| COM: | UART x 2 (4-wire), UART x 2 (2-wire) |
| Expansion : | PCIe Gen 3.0 x1 |
| Operating System : | Linux, Windows 10 |
| TPM : | TPM 2.0 (Optional) |
| Ethernet Technical Data: | Gigabit Ethernet x 2 |
| Display Output Technical Data: | HDMI x1, LVDS x1, MIPI-DSI x1 |
| Certifications: | CE, FCC class A |
| Dimensions Technical Data: | 82mm x 50mm |
| DIO/GPIO Technical Data: | 14 bit GPIO |
| Audio Technical Data: | I2S x 1 |
