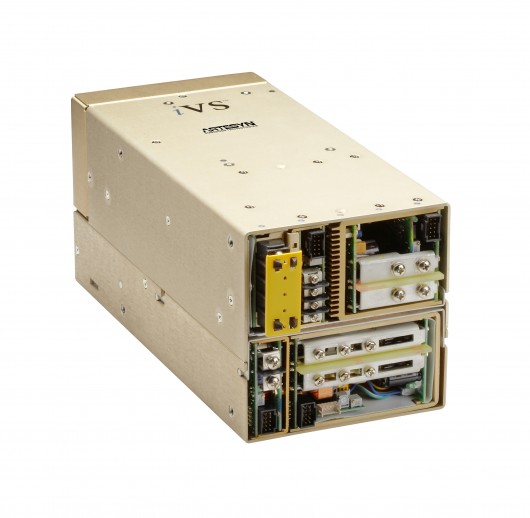

The iVS Series from Advanced Energy is a configurable AC/DC power supply providing up to 4920W and can provide up to 24 outputs.
Available at the following power ratings: 1500W / 1800W / 3210W / 4500W / 4920W
Features:
- Active power factor correction
- Upgradable firmware
- Analogue or I2C digital control/monitoring
- Configurable inhibit and enable
- Modular design
- Individual voltage adjustment on each output
- High power density (12W/in3)
- Field configurable, plug and play power
- Modular design
- UL60950, UL2601, EN60950, EN60601-1, EN55022-B, EN61000
Models in the series: iVS1 / iVS3 / iVS6 / iVS8 / iVS8H (3 phase)
Example of model number: iVS1-5L1-1Q1-2EO-4LLO-00-A-###
If you are interested in our product, you can contact us through our contact page.
The iVS Series from Advanced Energy is a configurable AC/DC power supply providing up to 4920W and can provide up to 24 outputs.
Available at the following power ratings: 1500W / 1800W / 3210W / 4500W / 4920W
Features:
- Active power factor correction
- Upgradable firmware
- Analogue or I2C digital control/monitoring
- Configurable inhibit and enable
- Modular design
- Individual voltage adjustment on each output
- High power density (12W/in3)
- Field configurable, plug and play power
- Modular design
- UL60950, UL2601, EN60950, EN60601-1, EN55022-B, EN61000
Models in the series: iVS1 / iVS3 / iVS6 / iVS8 / iVS8H (3 phase)
Example of model number: iVS1-5L1-1Q1-2EO-4LLO-00-A-###
| Cooling Method: | Forced Air |
|---|---|
| Format: | Digital Controlled |
| Input Voltage: | 90-264V |
| Market Sector: | Industrial, Medical |
| No. of Outputs: | Multi (5+) |
| Operating Temp Range: | -40 °C to +70 °C |
| Output Power: | 4920W |
| Output Voltage: | Variable |
| Power Format: | Digital Controlled Power Supplies |
| Power Type: | AC-DC |
