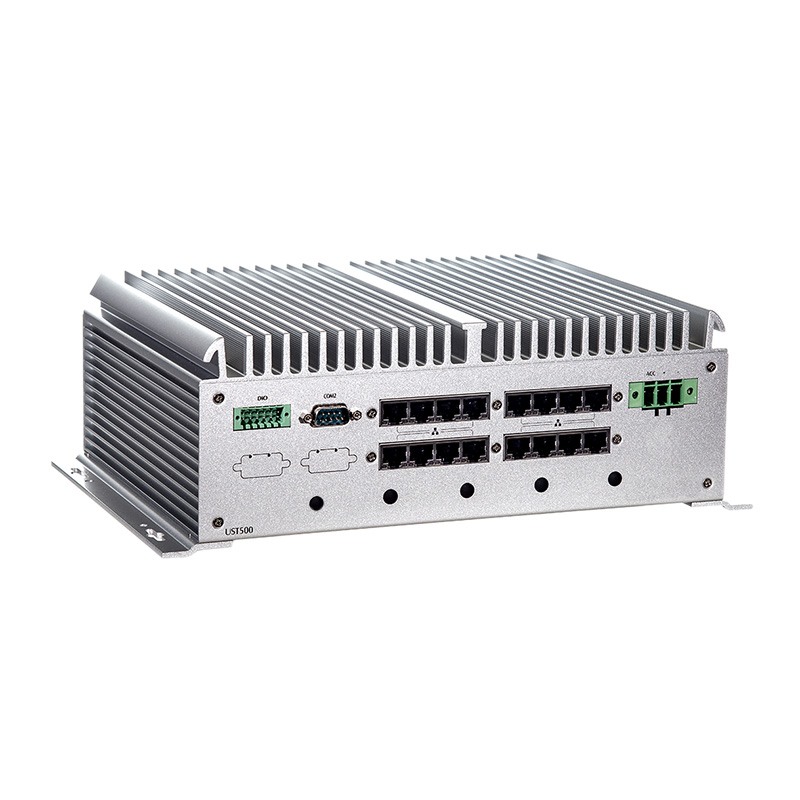

Fanless Embedded System with 7th/6th Gen Intel® Core™, Pentium® and Celeron® Processor for Railway and Vehicle PC

The UST500-517-FL is powered by the LGA1151 socket 7th/6th generation Intel® Core™ and Pentium® processors up to 65W with the Intel® Q170 chipset. The integrated 16 PoE ports are available in RJ-45 or M12 connectors for IP cameras. It provides a full scope of power protection that includes intelligent vehicle power management technology for ACC on/off delay, shutdown delay, and over/under voltage protection. Enhanced by its robust structure and system design, the UST500-517-FL is able to operate under a wide temperature range from -40°C to +70°C and vibration endurance up to 3 Grms. This transportation embedded box is in compliance with ISO 7637-2 and EN 50155 for mobile surveillance applications. There are 16 Gigabit LAN ports which support 802.3at/af Power over Ethernet with a total power budget of 200W. Its DVI-D, HDMI and VGA interfaces support three surveillance monitors. Furthermore, its external accessible SIM card slot enables users to easily change SIM card for different telecommunication service. With wireless LAN modules, this user-friendly transportation embedded system can real-time transmits the video to the control center. The two built-in or four swappable SATA hard drives are used for mass storage of video files.


Technical Data:

Internal Part NumberUST500-517-FL
CPU 7th gen Intel® Kaby Lake processor, TDP: 35 - 65W 6th gen Intel® Skylake processor, TDP: 35 - 65W
ChipsetIntel® Q170
System Memory2 x DDR4-1866/2133/2400 SO-DIMM, up to 32GB
I/O Front1 x Mic-in, 1 x Line-out, 1 x DVI-D, 1 x VGA, 1 x COM port (RS232/422/485), 1 x HDMI, 4 x USB 3.0
I/O Back1 x DIO (6-in, 2-out), 1 x COM port (RS232/422/485), Flexible Lan selection (see datasheet), 1 x terminal block for power
Storage Expansion 2 x 2.5” 15 mm internal SATA drive with 2 SATA, Intel® RAID 0/1 supported 2 x 2.5” 15 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported 4 x 2.5” 15 mm swappable SATA drive with 4 SATA, Intel® RAID 0/1/5/10 supported 1 x Half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
General Expansion 2 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with external SIM socket) 1 x Half-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe) 1 x Half-size Rev.1.2 PCI Express Mini Card slot (USB)
Power Requirements General use: 1 x Terminal block, 9 to 36 VDC Vehicle: 1 x terminal block, 12/24 VDC with ACC ignition
OS OptionsWindows 10
Dimensions11.02” x 8.27” x 3.91”
FCC class A
EN 50155
EN 45545-2
