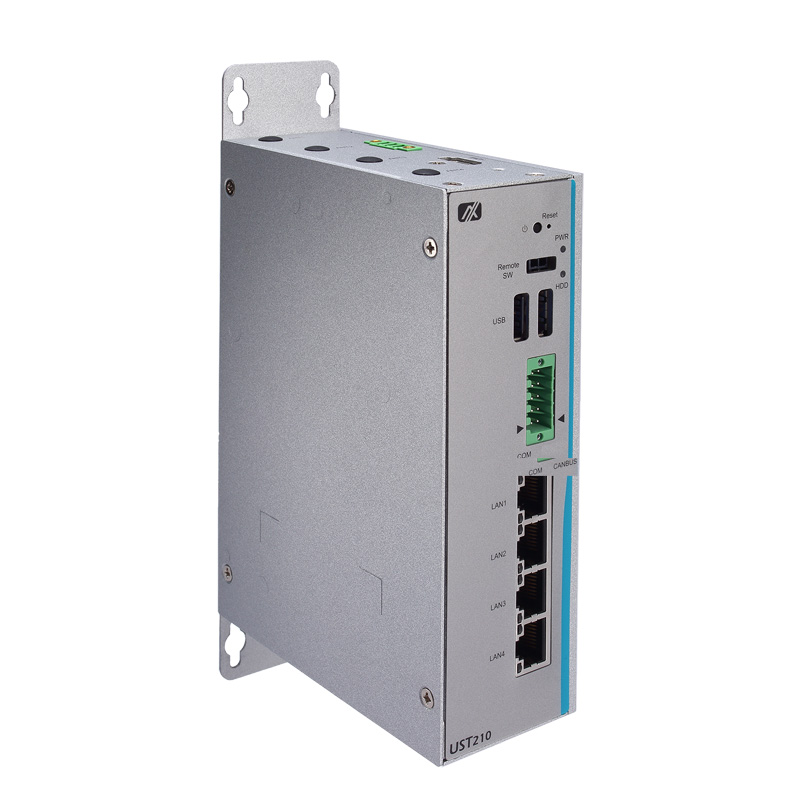

Robust and Compact DIN-rail Fanless Embedded System with Intel Atom® x5-E3940 Processor for In-Vehicle Gateway
Manufacturer | Axiomtek |
Internal Part Number | UST210-83K-FL |
CPU | Intel Atom® x5-E3940 4C @1.6 GHz, TDP: 9.5W |
Chipset | SoC Integrated |
System Memory | 1 x DDR3L-1866 SO-DIMM, up to 8GB |
I/O Front | Up to 2 x Terminal block Serial console or RS-232/422/485**, 1 x Terminal block CANBus 2.0 A/B**, supports SocketCAN*, 4 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® I210-AT), 2 x USB 3.0 |
I/O Back | 4x antenna opening, x1 HDMI, x1 Power Input |
Storage Expansion | x1 internal 2.5" SATA drive (9.5mm height), 1 x Half-sized mSATA (occupied 1 x PCI Express Mini Card slot) |
Power Requirements | General Use: 1 x Terminal block, 9 to 36 VDC (typical:12/24V), Vehicle: 1 x Terminal block, 9 to 36 VDC with Smart Ignition (typical:12/24V) |
OS Options | HiLinux Windows 10 |
Dimensions | Non-PoE SKU: 48 mm (1.89") (W) x 110.4 mm (4.33") (D) x 155 mm (6.1") (H), PoE SKU: 67 mm (2.63") (W) x 110.4 mm (4.33") (D) x 155 mm (6.1") (H) |
Certifications | CE FCC class A MIL-STD-810G |
