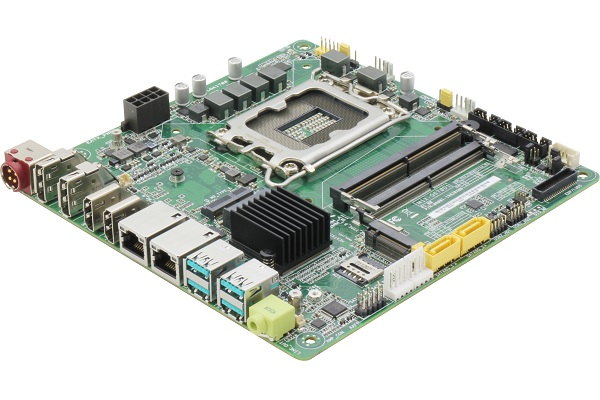

MIX-Q670D1
MIX-Q670D1
Mini-ITX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processor, Max. 65W TDPs
Key features:
- 12th/13th/14th Gen Intel® Core™ LGA1700 Processors
- DDR5 4800MHz SODIMM x 2, Max. 64GB
- HDMI 2.0 x 2 + DP 1.2 x 2
- M.2 2280 M-Key x 1 (PCIe /[x4/], NVMe), M.2 2230 E-Key x 1,
- M.2 3042/52 B-Key x 1 w/ SIM slot
- USB 3.2 x 4, USB 2.0 x 4
- GbE LAN x 2
- SATA III x 2
- DC 12V Input
| PART NUMBER | MIX-Q670D1-A11 |
|---|---|
| CPU | Socket |
| RAM | SODIMM x 2 |
| FAN/FANLESS | Fan |
| DISPLAY | HDMI x 2, DP x 2, LVDS/eDP x 1 |
| LVDS/EDP | 1 |
| STORAGE | SATA III x 2, M.2 M-Key |
| LAN | GbE x 2 |
| USB | USB 2.0 x 4 , USB 3.2 x 4 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | M.2 B-Key x 1 , M.2 E-Key x 1 |
| POWER | DC 12V |
| TPM | 2 |
| TEMP | 0~60˚C |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIX-Q670D1
Product information "MIX-Q670D1"
Mini-ITX with 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processor, Max. 65W TDPs
Key features:
- 12th/13th/14th Gen Intel® Core™ LGA1700 Processors
- DDR5 4800MHz SODIMM x 2, Max. 64GB
- HDMI 2.0 x 2 + DP 1.2 x 2
- M.2 2280 M-Key x 1 (PCIe /[x4/], NVMe), M.2 2230 E-Key x 1,
- M.2 3042/52 B-Key x 1 w/ SIM slot
- USB 3.2 x 4, USB 2.0 x 4
- GbE LAN x 2
- SATA III x 2
- DC 12V Input
| PART NUMBER | MIX-Q670D1-A11 |
|---|---|
| CPU | Socket |
| RAM | SODIMM x 2 |
| FAN/FANLESS | Fan |
| DISPLAY | HDMI x 2, DP x 2, LVDS/eDP x 1 |
| LVDS/EDP | 1 |
| STORAGE | SATA III x 2, M.2 M-Key |
| LAN | GbE x 2 |
| USB | USB 2.0 x 4 , USB 3.2 x 4 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | M.2 B-Key x 1 , M.2 E-Key x 1 |
| POWER | DC 12V |
| TPM | 2 |
| TEMP | 0~60˚C |
| CPU: | 12th Generation, 13th Generation, 14th Generation, Intel® Core 14th/13th/12th Gen i7/i5/i3, Pentium® & Celeron® - socket, LGA1700 socket, Max. 65W TDP |
|---|---|
| Processor Family: | Intel® Celeron®, Intel® Core, Intel® Pentium® |
| Memory : | Dual Channel DDR5 DDR5 4800MHz SO-DIMM ×2 Max. 64 GB (Non-ECC) |
| Display : | DP 1.2 ×2, DP up to 3840 × 2160 @60Hz, HDMI 2.0 ×2, HDMI up to 3840 × 2160 @60Hz, LVDS |
| Storage : | SATA III x 2, M.2 M-Key 2280 x 1 |
| USB Ports: | USB2.0 x 4 (header), USB 3.2 Gen2 x4 |
| Expansion : | M.2 2230 E-Key x 1, M.2 3042 B-Key x1, M.2 3052 B-key x 1, PCIe [x16] slot ×1 |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | Audio: Realtek ALC897, Line-out / Mic-in, Intel® Ethernet Controller I210-AT ×1, Watchdog timer, i219-LM x1 |
