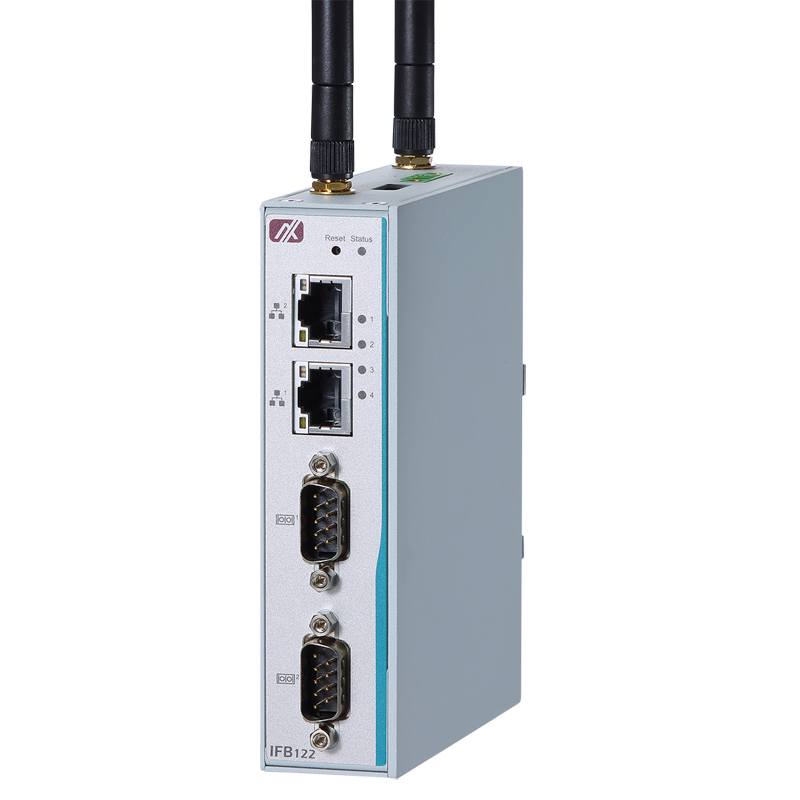

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 2 COM, 2 LANs and DIO (2-in/1-out)


  •  RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 256MB DDR3 SDRAM onboard
  • 4GB eMMC flash onboard
  • PCI Express Mini Card slot (Wi-Fi or 3G/4G)
  • 2 digital inputs and 1 digital output
  • Power input range of 9V to 48V DC with terminal block
  • Embedded embedded Linux operating system (Yocto)
  • Fanless and compact design
  • Wide operating temperature range from -40°C to +70°C F

Technical Data:

Internal Part NumberIFB122
CPUNXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
ChipsetSoC integrated
System Memory256 MB DDR3-1600 onboard
I/O Front1 x DIO (2-IN/ 1-OUT)
Storage Expansion1 x eMMC 4 GB Flash onboard
Power Requirements9 to 48 VDC power input
Dimensions31 x 100 x 125 mm (1.22" x 3.94" x 4.92")
CertificationsFCC Part 15
Heavy Industrial CE


Below are the downloads / factsheets available for this product. If you require any further information please contact us.

Product Datasheet
