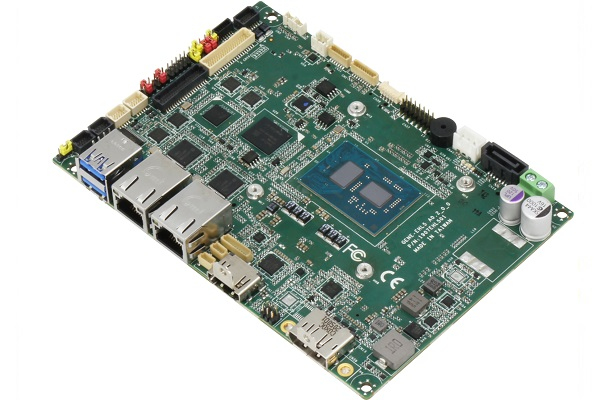

GENE-EHL5 | Elkhart Lake |SubCompact Board with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Proc
Key features:
- DDR4 SODIMM Slot x 1, up to 32GB, support IBECC
- LVDS/eDP x 1 (Default: LVDS), DP 1.4 x 1 (Optional VGA x 1), HDMI 2.0b x 1
- SATA 6Gb/s x 1, eMMC x 1
- USB 3.2 Gen 2 x 2 (Rear I/O), USB 2.0 x 4 (Pin header)
- M.2 2280 B-Key (PCIe /[x1/]), M.2 2242 B-Key (PCIe /[x1/]), M.2 2230 E-Key x 1, M.2 3052 B-Key x 1
- Wide DC Input 9~36V (Optional: 12V Only)
| PART NUMBER | GENE-EHL5-A12-0003 | GENE-EHL5-A12-0004 | GENE-EHL5-A12-0005 | GENE-EHL5-A12-0007 | GENE-EHL5W2-A12-0008 |
|---|---|---|---|---|---|
| CPU | Intel® Celeron® Processor J6412 | Intel® Celeron® Processor J6412 | Intel® Pentium® Processor J6426 | Intel Atom® x6425E | Intel Atom® x6425E |
| DISPLAY | DP++ x 1, HDMI x 1 LVDS x 1 | VGA x 1, LVDS x 1 | DP++ x 1, HDMI x 1 LVDS x 1 | DP++ x 1, HDMI x 1 VDS x 1 | VGA x 1, LVDS x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| RS- 232/422/485 | 4 | 4 | 4 | 4 | 4 |
| STORAGE | SATA x 1 eMMC 32GB | SATA x 1 | SATA x 1 | SATA x 1 eMMC 32GB | SATA x 1 |
| EXPANSION SLOT | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x1, M.2 B-Key 3052 x1 |
| TPM | 2.0 | NA | 2.0 | 2.0 | NA |
| POWER | 9~36V | 12V | 9~36V | 9~36V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | GPIO x 16, nano SIM, Touch Controller, SMBUS, Audio | GPIO x 16, nano SIM, SMBUS, Audio | GPIO x 16, nano SIM, Touch Controller, SMBUS, CANBUS x 2, Audio | GPIO x 16, nano SIM, Touch Controller, SMBUS, CANBUS x 2, Audio | GPIO x 16, SMBUS |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
GENE-EHL5
Product information "GENE-EHL5"
GENE-EHL5 | Elkhart Lake |SubCompact Board with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Proc
Key features:
- DDR4 SODIMM Slot x 1, up to 32GB, support IBECC
- LVDS/eDP x 1 (Default: LVDS), DP 1.4 x 1 (Optional VGA x 1), HDMI 2.0b x 1
- SATA 6Gb/s x 1, eMMC x 1
- USB 3.2 Gen 2 x 2 (Rear I/O), USB 2.0 x 4 (Pin header)
- M.2 2280 B-Key (PCIe /[x1/]), M.2 2242 B-Key (PCIe /[x1/]), M.2 2230 E-Key x 1, M.2 3052 B-Key x 1
- Wide DC Input 9~36V (Optional: 12V Only)
| PART NUMBER | GENE-EHL5-A12-0003 | GENE-EHL5-A12-0004 | GENE-EHL5-A12-0005 | GENE-EHL5-A12-0007 | GENE-EHL5W2-A12-0008 |
|---|---|---|---|---|---|
| CPU | Intel® Celeron® Processor J6412 | Intel® Celeron® Processor J6412 | Intel® Pentium® Processor J6426 | Intel Atom® x6425E | Intel Atom® x6425E |
| DISPLAY | DP++ x 1, HDMI x 1 LVDS x 1 | VGA x 1, LVDS x 1 | DP++ x 1, HDMI x 1 LVDS x 1 | DP++ x 1, HDMI x 1 VDS x 1 | VGA x 1, LVDS x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| RS- 232/422/485 | 4 | 4 | 4 | 4 | 4 |
| STORAGE | SATA x 1 eMMC 32GB | SATA x 1 | SATA x 1 | SATA x 1 eMMC 32GB | SATA x 1 |
| EXPANSION SLOT | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x 1, M.2 B-Key 3052 x 1 | M.2 B-Key 2280 x 1,M.2 B-Key 2242 x 1 M.2 E-Key 2230 x1, M.2 B-Key 3052 x1 |
| TPM | 2.0 | NA | 2.0 | 2.0 | NA |
| POWER | 9~36V | 12V | 9~36V | 9~36V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C |
| OTHERS | GPIO x 16, nano SIM, Touch Controller, SMBUS, Audio | GPIO x 16, nano SIM, SMBUS, Audio | GPIO x 16, nano SIM, Touch Controller, SMBUS, CANBUS x 2, Audio | GPIO x 16, nano SIM, Touch Controller, SMBUS, CANBUS x 2, Audio | GPIO x 16, SMBUS |
| CPU: | Intel® Celeron® J6412/J6426, Atom® x6425E, N6210, x6211E, x6425RE |
|---|---|
| Processor Family: | Intel® Atom®, Intel® Celeron®, Intel® Pentium® |
| Memory : | 32GB |
| Display : | Display Port, HDMI, LVDS, VGA, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2230 E-Key x 1, M.2 2242 B-Key x 1, M.2 2280 M-key x 1, M.2 3052 B-key x 1 |
| Power Requirement: | 9 to 36V (Optional 12V) |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | RJ45 x2, Intel I210 1GbE |
