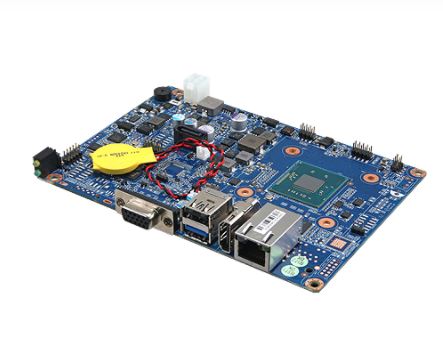

ECM-BYT-LITE
ECM-BYT-LITE
Intel® Atom™ SoC Processors E3845 3.5” Micro Module
Features
- Onboard Intel® Atom™ SoC E3845 BGA Processor
- One 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L 1066/ 1333 SDRAM
- VGA, HDMI
- 1 x Gigabit Ethernet
- Fanless Operation
- 1 SATA II, 1 Mini-PCIe, 1 USB 3.0, 3 USB 2.0, 1 COM
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
ECM-BYT-LITE
Product information "ECM-BYT-LITE"
Intel® Atom™ SoC Processors E3845 3.5” Micro Module
Features
- Onboard Intel® Atom™ SoC E3845 BGA Processor
- One 204-pin DDR3L SODIMM Socket Supports Up to 8GB DDR3L 1066/ 1333 SDRAM
- VGA, HDMI
- 1 x Gigabit Ethernet
- Fanless Operation
- 1 SATA II, 1 Mini-PCIe, 1 USB 3.0, 3 USB 2.0, 1 COM
| Certifications Technical Data: | CE, FCC Class, RoHS Compliant |
|---|---|
| Operating humidity Technical Data: | 40°C @ 95% Relative humidity |
| Power Connector Technical Data: | DC-In |
| Power Supply Type Technical Data: | AT/ATX |
| CPU: | Intel® Celeron® J1900 |
| Processor Family: | Intel® Celeron® |
| Display : | HDMI / LVDS / VGA |
| Storage : | Compact Flash x1, SATA II x1 |
| USB Ports: | USB 3.0 x1, USB 2.0 x1, USB 2.0 (pin header) x2 |
| COM: | RS-232 x3, RS-232/422/485 x1 |
| Expansion : | mPCle |
| Expansion : | mPCIe (Supports mSATA)x1 or PCI-e x1 |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | RJ45 x2, Intel I211AT |
| Display Output Technical Data: | HDMI x1, VGA x1, LVDS (dual channel 18/24-bit) x1 |
| Dimensions Technical Data: | 146mm(L) x 101mm(W) |
| DIO/GPIO Technical Data: | 8-bit x1 |
| Audio Technical Data: | Realtek ALC888S Audio x1 |
