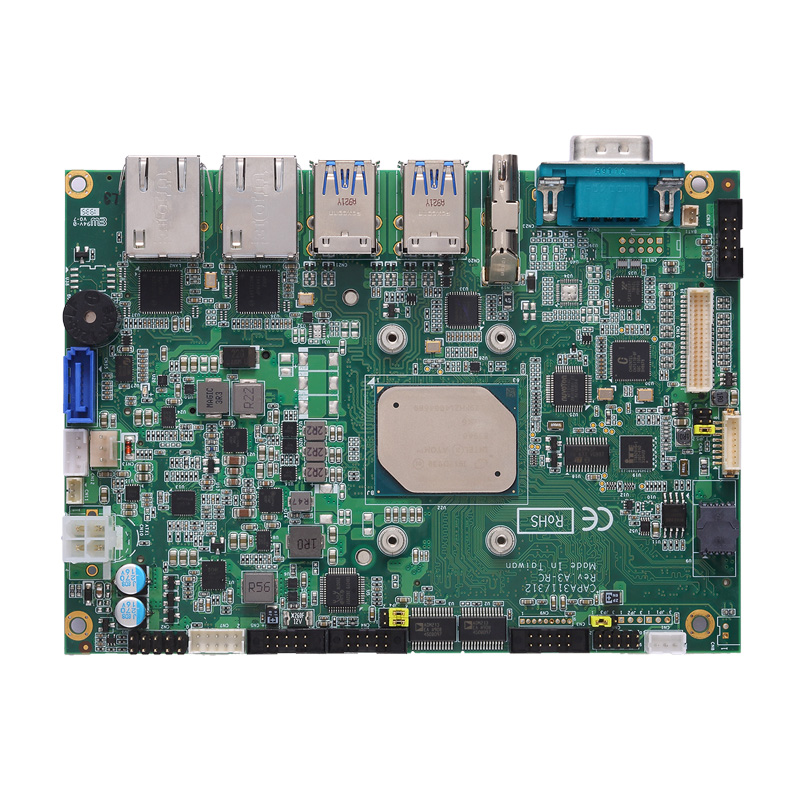

3.5" Embedded SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, 2 GbE LAN and Audio

  • Intel® Atom® x5-E3940 processor
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 2 USB 2.0 and 4 USB 3.0
  • 2 full-size PCI Express Mini Card slots



Technical Data:

Internal Part NumberCAPA311
Form Factor3.5" SBC
CPUIntel® Atom® x5-E3940 processor onboard
ChipsetSoC integrated
System Memory1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
General I/O2 x USB 2.0, 4 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232
Graphics I/O1 x HDMI, 1 x LVDS; 18/24-bit single/dual channel, 1 x VGA (optional), 1 x eDP (optional)
Network I/O2 x 10/100/1000 Mbps Ethernet with Intel® i211-AT; support Wake-on-LAN, PXE Boot ROM
Storage Expansion1 x Full-size PCI Express Mini Card slot with mSATA supported 1 x Full-size PCI Express Mini Card slot 1 x SIM slot


Below are the downloads / factsheets available for this product. If you require any further information please contact us.

Product Datasheet
