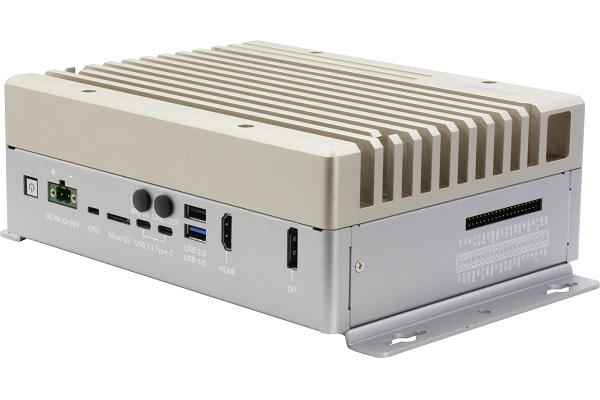

AI@Edge Fanless Embedded Box PC with NVIDIA Jetson AGX Orin 32GB

Powered by the 12-core ARM® Cortex®-A78AE v8.2 64-bit CPU, and featuring NVIDIA’s Ampere architecture, AAEON’s BOXER-8640AI will provide more sophisticated AI inferencing for vision-based AI applications, such as smart traffic management and safety.


  • 1792-core Amper GPU with Tensor cores
  • Support RJ-45 x 4 for PoE (802.11af, total 60W)
  • Support DB-9 x 1 for RS-232/422/485, CANBUS x 1
  • Support 40-pin header, Mic in and Line out
  • Supoort M.2 E key, M key and SATA storage

Technical Data:

Internal Part NumberBOXER-8640AI
CPU8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3
ChipsetNVIDIA Jetson AGX Orin 32GB
System Memory32GB 256-Bit LPDDR5x 205GB/s
I/O FrontPoE x 4 (IEEE, total 60W) USB Type A x 1 for USB 3.2 Gen 1 USB Type C x 2 for USB 3.2 Gen 1 USB Type A x 1 for USB 2.0 RS-232/422/485 x1 CANBUS x 1 HDMI 2.0 x1 DP 1.4 x 1 Mic-in x 1 Line-out x 1 MicroSD slot x 1
I/O BackMicro USB x 1 for OS Flash Recovery button x 1 Power button x 1 40-pin header compliance with NVIDIA Dev Kit 40 pins (4 pins CANBUS occupied)
Storage Expansion64GB eMMC 5.1, Micro SD card slot 2.5” SATA drive bay M.2 Key M 2280
General ExpansionUSB 2.0 header x 1 (Optional, circuit reserved) M.2 Key E 2230 x 1 for WiFi/Bluetooth (PCIe[x1] + USB) M.2 Key M 2280 x 1 (PCIe[x4]) SATA x 1 RS-232/422/485 pin header x 1
Power RequirementsDC 12V~24V 2-pin terminal
OS OptionsHiLinux
Dimensions210mm x 232mm x 164.2mm
FCC class A
