Yingjiao

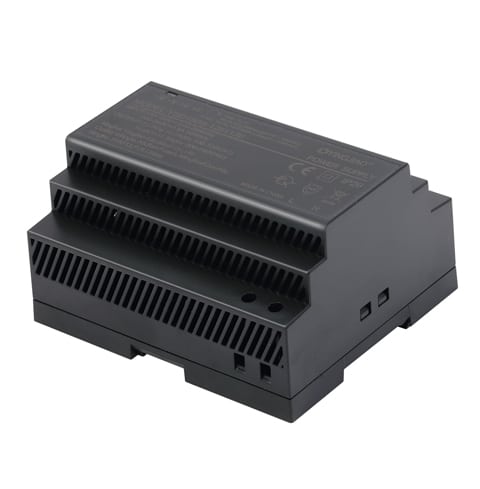

YSD150S
Key Features:
- Universal AC input range
- Class II isolation
- Over voltage category lll
- DC output voltage adjustable
- Installed on DIN rail TS-35/7.5 or 15
- 100% full load burn-in test
- 3 years warranty
| MODEL NO. | YSD150S-12 | YSD150S-15 | YSD150S-24 | YSD150S-48 | ||||
| Input Voltage | 90-264VAC 127-370VDC | |||||||
| DC Voltage | 12V | 12V | 15V | 15V | 24V | 24V | 48V | 48V |
| Rated Current | 11.3A | 10.2A | 9.5A | 8.55A | 6.25A | 5.31A | 3.2A | 2.72A |
| Rated Power | 135.6W/230VAC | 122.4W/115VAC | 142.5W/230VAC | 128.3W/115VAC | 150W/230VAC | 127.4W/115VAC | 153.6W/230VAC | 130.6W/115VAC |
| Dimension | 105*70.2*58.4mm/4.13*2.76*2.3in | |||||||
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
YSD150S
Product information "YSD150S"
Key Features:
- Universal AC input range
- Class II isolation
- Over voltage category lll
- DC output voltage adjustable
- Installed on DIN rail TS-35/7.5 or 15
- 100% full load burn-in test
- 3 years warranty
| MODEL NO. | YSD150S-12 | YSD150S-15 | YSD150S-24 | YSD150S-48 | ||||
| Input Voltage | 90-264VAC 127-370VDC | |||||||
| DC Voltage | 12V | 12V | 15V | 15V | 24V | 24V | 48V | 48V |
| Rated Current | 11.3A | 10.2A | 9.5A | 8.55A | 6.25A | 5.31A | 3.2A | 2.72A |
| Rated Power | 135.6W/230VAC | 122.4W/115VAC | 142.5W/230VAC | 128.3W/115VAC | 150W/230VAC | 127.4W/115VAC | 153.6W/230VAC | 130.6W/115VAC |
| Dimension | 105*70.2*58.4mm/4.13*2.76*2.3in | |||||||
| Dimensions: | 105 x 90 x 58.4 mm |
|---|---|
| Efficiency: | 89%, 89.5, 90.5% |
| Output Current: | 2.72A, 3.125A, 5.33A, 6.25A, 8.55A, 9.5A, 10.2A, 11.3A |
| Output Power: | Up to 150W |
| Output Voltage: | 12V, 15V, 24V, 48V |
| Operating Temperature: | -20 to +70 degC |
| Certifications: | EN 62368-1 |
