TP-DD1020-A00
TP-DD1020-A00

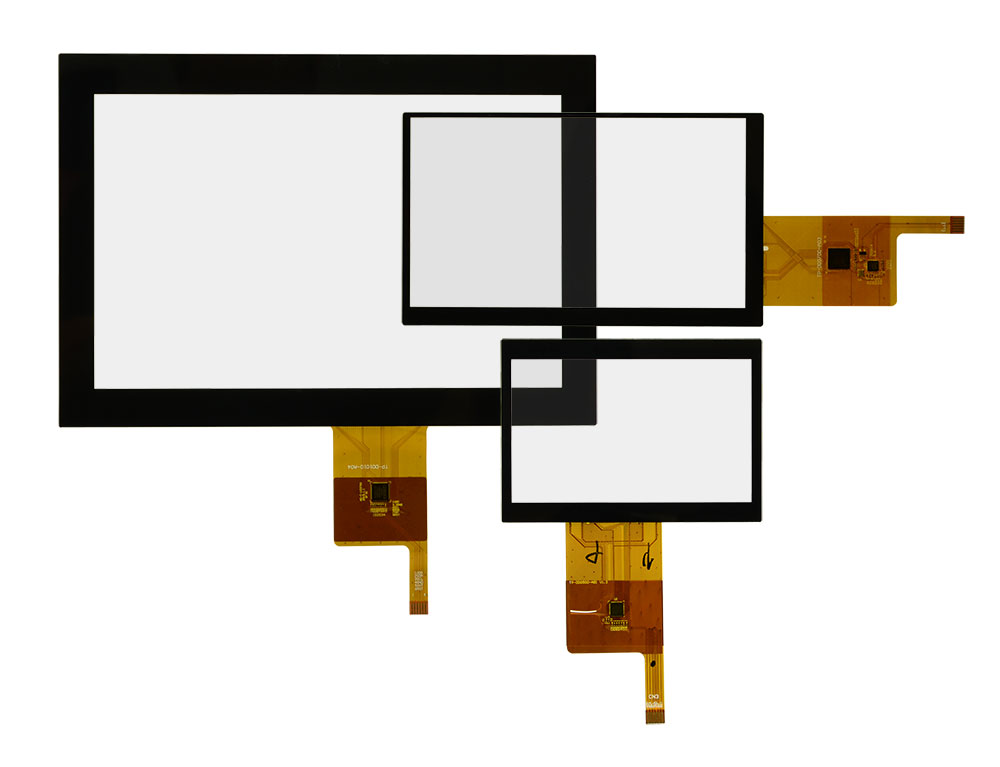

TP-DD1020-A00 is a 10.2" (25.91cm) PCAP multi-touchscreen with modern black printing and HID compliant USB and I²C controller chip-on-flex. These do not require drivers for modern operating systems (e.g. Windows, Linux or Android).
This touch screen fits perfectly on the KOE 10.2" Full HD TFT Display TX26D208VM0AAA.
Information on the COF touch controller chip: ILI2511
If you are interested in our product, you can contact us through our contact page.
TP-DD1020-A00 is a 10.2" (25.91cm) PCAP multi-touchscreen with modern black printing and HID compliant USB and I²C controller chip-on-flex. These do not require drivers for modern operating systems (e.g. Windows, Linux or Android).
This touch screen fits perfectly on the KOE 10.2" Full HD TFT Display TX26D208VM0AAA.
Information on the COF touch controller chip: ILI2511
Controller Type: | Ilitek ILI2510 |
---|---|
Screen Diagonal: | 10.1" |
Tail Position: | Bottom Right |
Thickness: | 1.8mm |
Touch Option: | PCAP |
Touch Points: | 10 Multi points |
Operating Temperature: | -20 to +70 degC |
