TP-DD0700-A24
TP-DD0700-A24

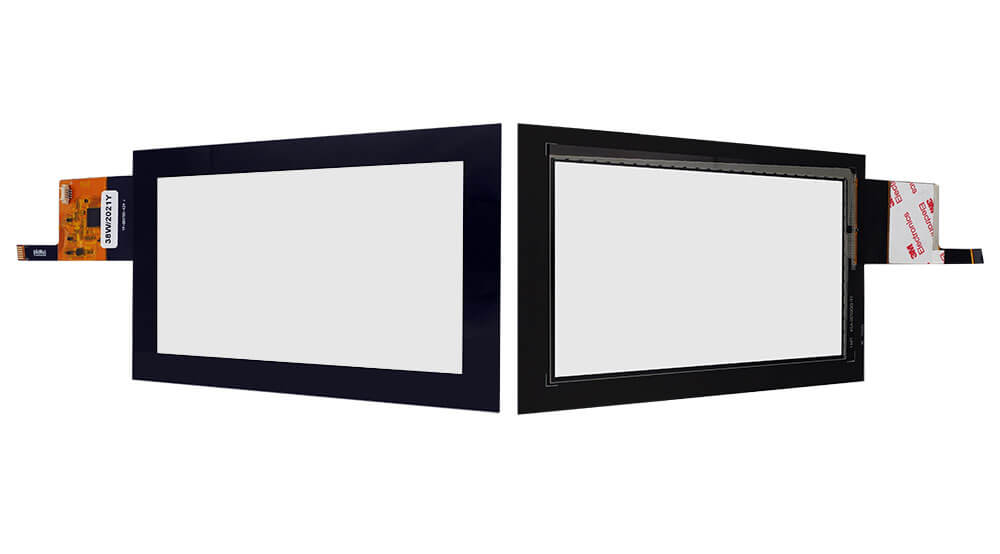

TP-DD0700-A24 is a 7" (17.78cm) PCAP mulit-touchscreen with modern black printing. It features an I²C as well as a USB Interface and was specially developed to match KOE's high resolution 7" Full HD TFT display TX18D200VM0EAA.
- I²C + USB Interface
- Chip-on-flex
Information on the COF touch controller chip: ILI2520
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
TO-09-291
Product information "TP-DD0700-A24"
TP-DD0700-A24 is a 7" (17.78cm) PCAP mulit-touchscreen with modern black printing. It features an I²C as well as a USB Interface and was specially developed to match KOE's high resolution 7" Full HD TFT display TX18D200VM0EAA.
- I²C + USB Interface
- Chip-on-flex
Information on the COF touch controller chip: ILI2520
Controller Type: | Ilitek ILI2510 |
---|---|
Format: | 16:9 |
Screen Diagonal: | 7" |
Tail Position: | Left Top |
Thickness: | 1.1mm |
Touch Option: | PCAP |
Touch Points: | 10 Multi points |
Operating Temperature: | -30 to +70 degC |
