Product information "SSF3588-I"

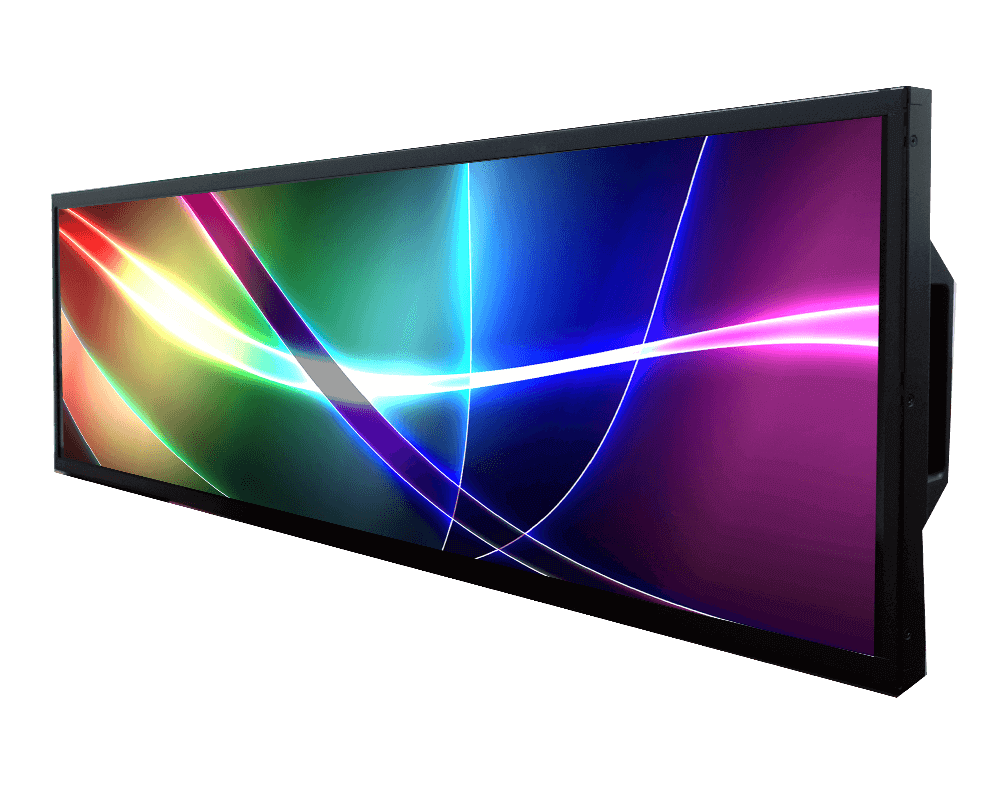

The SSF/SSH3588-I is a 35.8 inch color TFT-LCD display with special aspect ratio 16:4.4 and wide resolution 1920 x 534. It is Litemax’s Spanpixel series product which designed for high brightness 1600 nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.

Key Features

  • Resizing LCD
  • Ultra-Wide Screen (16 : 4.4)
  • High Brightness 1600 nits
  • Sunlight Readable
  • LED Backlight
  • Slim Bezel
  • BL MTBF: 100,000 hours
Screen Diagonal: 35.8"
Sunlight Readable : Yes
Viewing Angle: 178°/178°
Brightness: 1600cd/m2
Resolution: 1920x534
Interface: LVDS
Ratio: 10000:1
Operating Temperature: 0 to +50 degC
