SSD4848-U
SSD4848-U

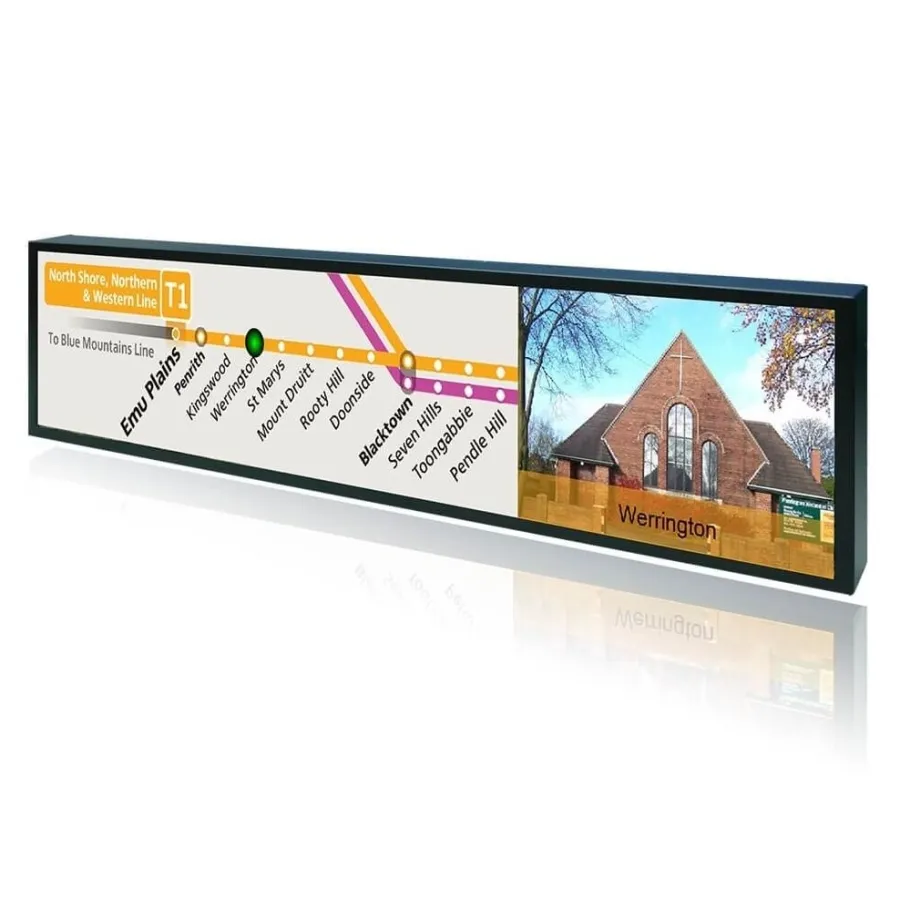

The SSD4848-U is a 48.4" TFT-LCD stretched display with a special aspect ratio of 16:3 alongside a wide resolution of 1920 x 358. It is part of Litemax’s Spanpixel series which is designed for sunlight readable application with 1600nits high brightness and a power efficiency LED backlight. Suitable for digital signage applications including: public transportation, exhibition hall, department store, and vending machine.
| Model name | SSF4848-U | SSH4848-U | SSD4848-U |
| Video interface | LVDS | VGA, DVI-D, HDMI, VIDEO, RS232, AUDIO | VGA, DVI-D, HDMI, VIDEO, RS232, AUDIO |
| Power consumption | 69W | 80.5W | 80.5W |
| Dimensions (mm) | 1244.6x 264.9 x 27.1 | 1244.6x 264.9 x 27.1 | 1247.4 x 267.7 x 70.3 |
| Bezel size (U/B/L/R) | 17.7/17.7/15.5/15.5 | 17.7/17.7/15.5/15.5 | 19.3/19.3/17/17 |
| Weight (Net) | 9.3 kg | 9.3 kg | 12 kg |
| Mounting | VESA 300 x 75 | ||
| OSD Key | 4 keys (Power switch, menu, +, -) | 4 keys (Power switch, menu, +, -) | |
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | |
| Product approval | CE, FCC |
If you are interested in our product, you can contact us through our contact page.
The SSD4848-U is a 48.4" TFT-LCD stretched display with a special aspect ratio of 16:3 alongside a wide resolution of 1920 x 358. It is part of Litemax’s Spanpixel series which is designed for sunlight readable application with 1600nits high brightness and a power efficiency LED backlight. Suitable for digital signage applications including: public transportation, exhibition hall, department store, and vending machine.
| Model name | SSF4848-U | SSH4848-U | SSD4848-U |
| Video interface | LVDS | VGA, DVI-D, HDMI, VIDEO, RS232, AUDIO | VGA, DVI-D, HDMI, VIDEO, RS232, AUDIO |
| Power consumption | 69W | 80.5W | 80.5W |
| Dimensions (mm) | 1244.6x 264.9 x 27.1 | 1244.6x 264.9 x 27.1 | 1247.4 x 267.7 x 70.3 |
| Bezel size (U/B/L/R) | 17.7/17.7/15.5/15.5 | 17.7/17.7/15.5/15.5 | 19.3/19.3/17/17 |
| Weight (Net) | 9.3 kg | 9.3 kg | 12 kg |
| Mounting | VESA 300 x 75 | ||
| OSD Key | 4 keys (Power switch, menu, +, -) | 4 keys (Power switch, menu, +, -) | |
| OSD control | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | |
| Product approval | CE, FCC |
| Dimensions: | 1244.6x 264.9 x 27.1, 1247.4 x 267.7 x 70.3 |
|---|---|
| Interface: | AD: VGA, DVI, HDMI |
| Screen Diagonal: | 48.4" |
| Storage temperature range: | -20°C to +60°C |
| Brightness: | 1600cd/m2 |
| Product Category: | SPANpixel |
| Resolution: | 1920x358 |
| Viewing Angle: | 178°/178° |
| Operating Temperature: | 0 to +50 degC |
