SSD4805-Y
SSD4805-Y

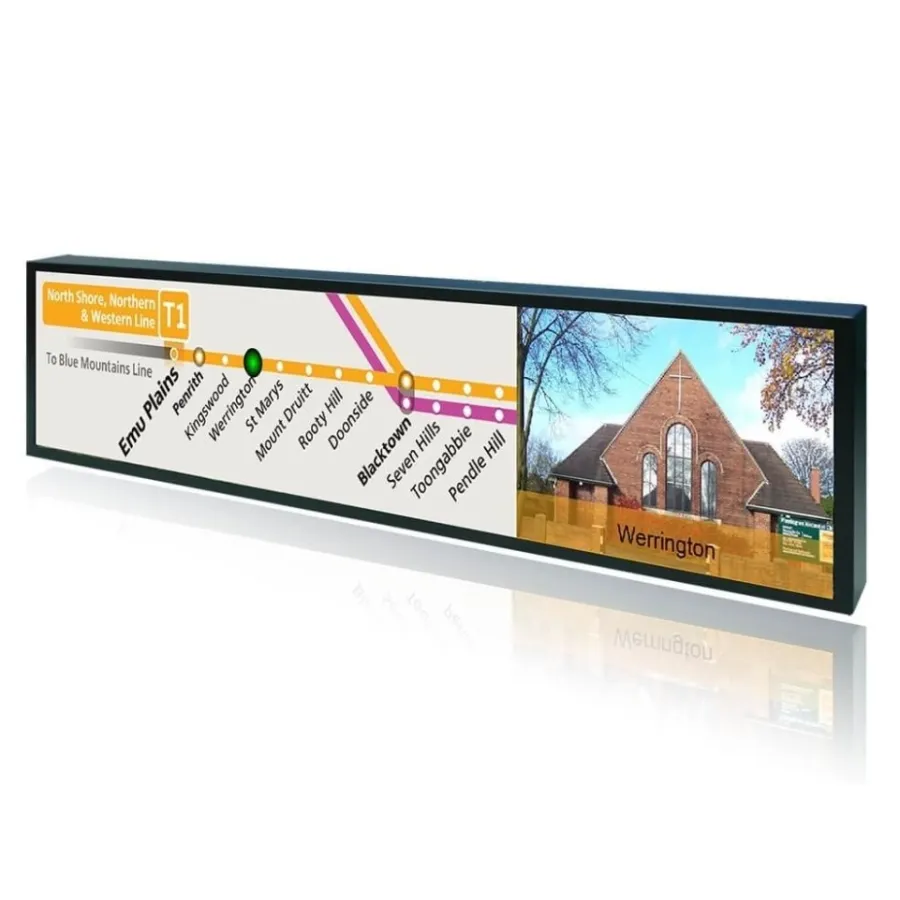

The SSD4805-Y is a 48-inch stretched bar LCD monitor with a special 16:3 aspect ratio and a wide resolution of 3840x720. This display is part of Litemax's Spanpixel series and is designed for sunlight-readable applications with a high brightness of 1000nit and an energy-efficient LED backlight. The SSD4805-Y is perfect for digital signage applications such as public transport, exhibition halls, department stores and vending machines.
| Model name | SSF4805-Y | SSH4805-Y | SSD4805-Y |
| AD Board Input Interface | DVI, HDMI, DP | DVI, HDMI, DP | DVI, HDMI, DP |
| Power consumption | 93W | 98W | 98W |
| Dimensions (mm) | 1217.85 x 248.18 x 30 | 1217.85 x 248.18 x 30 | 1220.4 x 250.8 x 70.2 |
| Bezel size (U/B/L/R) | 9.9/9.9/9.9/9.9 mm | 9.9/9.9/9.9/9.9 mm | 11.2/11.2/11.2/11.2 mm |
| Weight (Net) | 3.7 kg | 3.7 kg | 9.2 kg |
| Mounting | VESA 300x75, 650x100 | ||
| OSD key | 5 keys (Power Switch, Menu, +, -, Exit) | ||
| OSD Control | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc |
If you are interested in our product, you can contact us through our contact page.
The SSD4805-Y is a 48-inch stretched bar LCD monitor with a special 16:3 aspect ratio and a wide resolution of 3840x720. This display is part of Litemax's Spanpixel series and is designed for sunlight-readable applications with a high brightness of 1000nit and an energy-efficient LED backlight. The SSD4805-Y is perfect for digital signage applications such as public transport, exhibition halls, department stores and vending machines.
| Model name | SSF4805-Y | SSH4805-Y | SSD4805-Y |
| AD Board Input Interface | DVI, HDMI, DP | DVI, HDMI, DP | DVI, HDMI, DP |
| Power consumption | 93W | 98W | 98W |
| Dimensions (mm) | 1217.85 x 248.18 x 30 | 1217.85 x 248.18 x 30 | 1220.4 x 250.8 x 70.2 |
| Bezel size (U/B/L/R) | 9.9/9.9/9.9/9.9 mm | 9.9/9.9/9.9/9.9 mm | 11.2/11.2/11.2/11.2 mm |
| Weight (Net) | 3.7 kg | 3.7 kg | 9.2 kg |
| Mounting | VESA 300x75, 650x100 | ||
| OSD key | 5 keys (Power Switch, Menu, +, -, Exit) | ||
| OSD Control | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc | Brightness, Color, Contrast, Auto Turing, H/V Position ... etc |
| Dimensions: | 1217.85x248.18x30, 1220.4x250.8x70.2 |
|---|---|
| Interface: | AD: DVI, HDMI, DP |
| Screen Diagonal: | 48" |
| Storage temperature range: | -20°C to +60°C |
| Brightness: | 1000cd/m2 |
| Product Category: | SquarePixel |
| Resolution: | 3840x720 |
| Viewing Angle: | 178°/178° |
| Operating Temperature: | 0 to +50 degC |
