SSD4788-B
SSD4788-B

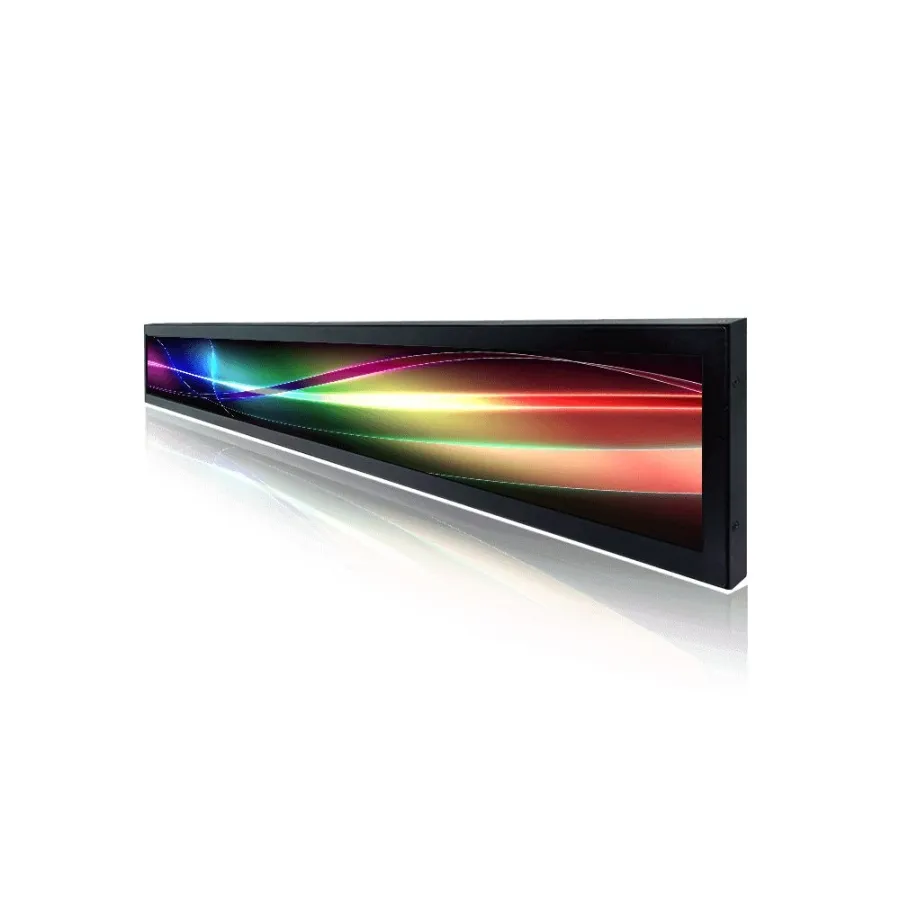

The SSD4788-B BAR Type Display have a 1920x178 resolution providing a 16:1.5 aspect ratio. The high bright LED backlit display provides over 1000 nits of brightness making the screen sunlight readable for outdoor applications.
| Model name | SSF4788-B | SSH4788-B | SSD4788-B |
| Video interface | LVDS | VGA, DVI-D, HDMI | VGA, DVI-D, HDMI |
| Power consumption | 37W | 42W | 42W |
| Dimensions (mm) | 1244.6 x 151.5 x 23.9 | 1244.6 x 151.5 x 23.9 | 1247.2 x 154.1 x 62.9 |
| Mounting | VESA 400 x 75 | ||
| Product approval | CE, FCC |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
SSD4788-BNB-G01
Product information "SSD4788-B"
The SSD4788-B BAR Type Display have a 1920x178 resolution providing a 16:1.5 aspect ratio. The high bright LED backlit display provides over 1000 nits of brightness making the screen sunlight readable for outdoor applications.
| Model name | SSF4788-B | SSH4788-B | SSD4788-B |
| Video interface | LVDS | VGA, DVI-D, HDMI | VGA, DVI-D, HDMI |
| Power consumption | 37W | 42W | 42W |
| Dimensions (mm) | 1244.6 x 151.5 x 23.9 | 1244.6 x 151.5 x 23.9 | 1247.2 x 154.1 x 62.9 |
| Mounting | VESA 400 x 75 | ||
| Product approval | CE, FCC |
| Dimensions: | 1244.6 x 151.5 x 23.9, 1247.2 x 154.1 x 62.9 |
|---|---|
| Interface: | AD: VGA, DVI, HDMI |
| Screen Diagonal: | 47.8" |
| Storage temperature range: | -20°C to +60°C |
| Brightness: | 1600cd/m2 |
| Product Category: | SPANpixel |
| Resolution: | 1920x178 |
| Viewing Angle: | 178°/178° |
| Ratio: | 1700:1 |
| Operating Temperature: | 0 to +50 degC |
