SMT-24060-EUVTD-P
Key Features:

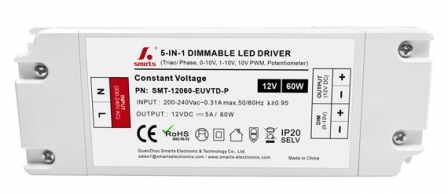

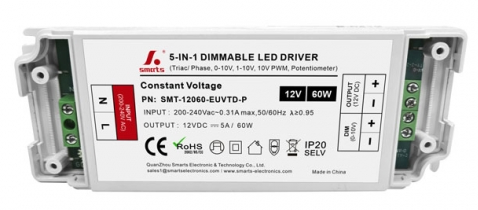

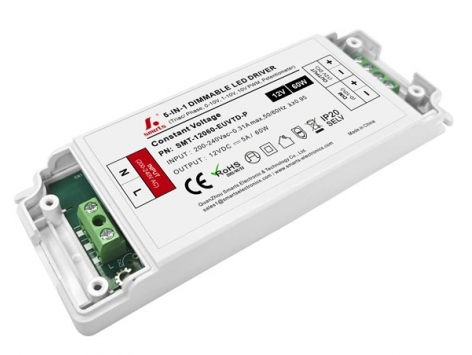

200-240 Vac constant voltage 60W TRIAC & 0-10 Vdc dimmable LED driver. Working efficiency up to 80%. With short circuit / over temperature / overload protection function. Dimming range between 0.1 - 100 % Smooth flicker free dimming. 7 years warranty.
| Model | SMT-12060-EUVTD-P | SMT-24060-EUVTD-P |
| Output Voltage | 12 Vdc | 24 Vdc |
| Output Current | 5 A | 2.5 A |
| Output Power | 60 W | 60 W |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
SMT-24060-EUVTD-P
Product information "SMT-24060-EUVTD-P"
Key Features:
200-240 Vac constant voltage 60W TRIAC & 0-10 Vdc dimmable LED driver. Working efficiency up to 80%. With short circuit / over temperature / overload protection function. Dimming range between 0.1 - 100 % Smooth flicker free dimming. 7 years warranty.
| Model | SMT-12060-EUVTD-P | SMT-24060-EUVTD-P |
| Output Voltage | 12 Vdc | 24 Vdc |
| Output Current | 5 A | 2.5 A |
| Output Power | 60 W | 60 W |
| Dimensions: | 145 x 53 x 16.5 mm |
|---|---|
| Efficiency: | 85% |
| Output Current: | 2.5A |
| Output Power: | 60W |
| Output Voltage: | 24V |
| Operating Temperature: | -40 to +60 degC |
| Certifications: | IEC/EN 61347-1, IEC/EN 61347-2-13 |
