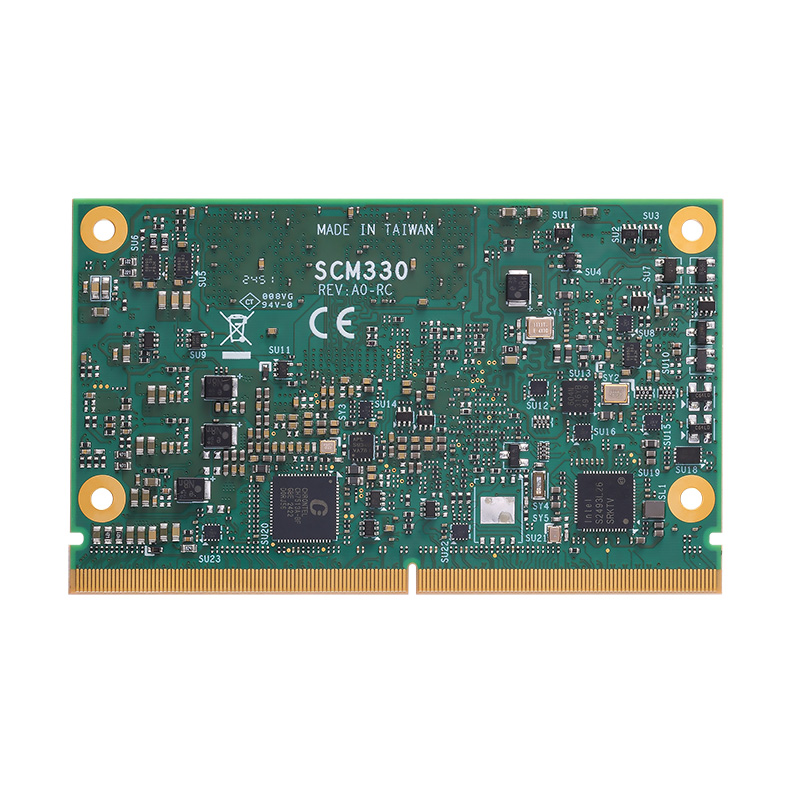

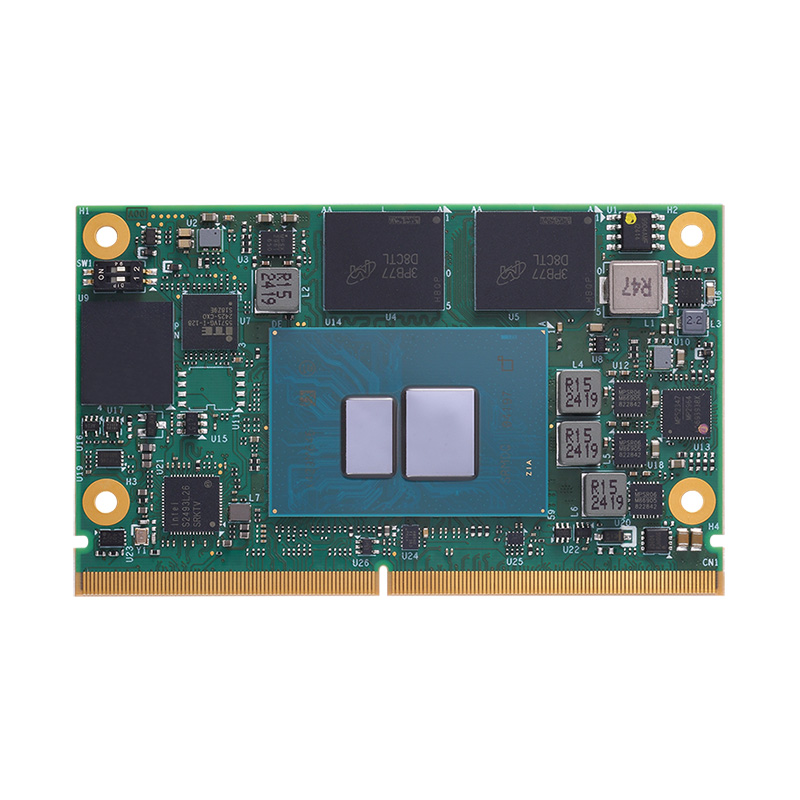

SCM330
Key features:
- Intel® Core™/Pentium®/Celeron® or Intel Atom® processors x7000 series
- LPDDR5-4800 with IBECC support, up to 16GB
- Up to 4 lanes of PCI Express
- 1 SATA Gen3
- 2 USB 3.2 Gen.1 and 6 USB 2.0
- Supports eMMC5.1 for up to 128GB of memory
- Supports fTPM
- SMARC2.1.1 pinout compliance
| Model | SCM330-i3N305 | SCM330-N97 | SCM330-x7835RE | SCM330-x7211RE |
| CPU | SMARC R2.1.1 i3N305 with 16GB RAM | SMARC R2.1.1 N97 with 8GB RAM | SMARC R2.1.1 x7835RE with 16GB RAM | SMARC R2.1.1 x7211RE with 8GB RAM |
| Display | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS |
| Storage | 64GB eMMC | 32GB eMMC | 64GB eMMC | 32GB eMMC |
| LAN | two 2.5GbE LAN | two 2.5GbE LAN | two 2.5GbE LAN | two 2.5GbE LAN |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
SCM330
Product information "SCM330"
Key features:
- Intel® Core™/Pentium®/Celeron® or Intel Atom® processors x7000 series
- LPDDR5-4800 with IBECC support, up to 16GB
- Up to 4 lanes of PCI Express
- 1 SATA Gen3
- 2 USB 3.2 Gen.1 and 6 USB 2.0
- Supports eMMC5.1 for up to 128GB of memory
- Supports fTPM
- SMARC2.1.1 pinout compliance
| Model | SCM330-i3N305 | SCM330-N97 | SCM330-x7835RE | SCM330-x7211RE |
| CPU | SMARC R2.1.1 i3N305 with 16GB RAM | SMARC R2.1.1 N97 with 8GB RAM | SMARC R2.1.1 x7835RE with 16GB RAM | SMARC R2.1.1 x7211RE with 8GB RAM |
| Display | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS | 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS |
| Storage | 64GB eMMC | 32GB eMMC | 64GB eMMC | 32GB eMMC |
| LAN | two 2.5GbE LAN | two 2.5GbE LAN | two 2.5GbE LAN | two 2.5GbE LAN |
| CPU: | Intel Atom® x7000E Series, Intel® Core, Pentium® & Celeron® |
|---|---|
| Processor Family: | Intel® Atom®, Intel® Celeron®, Intel® Core, Intel® Pentium® |
| Memory : | LPDDR5-4800 with IBECC support, up to 16GB |
| Display : | 18/24-bit single/dual channel (optional eDP 1.4b HBR3: 5120 x 3200@60Hz), DP 1.2 ×1, HDMI, LVDS |
| Storage : | SATA 3.0 Gb/s x1, eMMC 5.1, up to 128GB |
| USB Ports: | USB 2.0 x6, USB3.2 GEN2 x 2 (Rear) |
| Expansion : | CANBUS x2 |
| Expansion : | PCIe x1 (default) x 3, PCIe x1 x 4, PCIe x4 x 1 |
| Power Requirement: | AT: Vin; Vin, ATX: Vin, VSB, RTC battery: 2.0V to 3.3V, VSB: 4.75 to 5.25V |
| Operating Temperature : | 0 to +60 degC / -40 to +85 degC |
| Ethernet Technical Data: | 1 x I²C, 1 x LPC, 1 x SPI, 2 x TX/RX , 2 × 10/100/1000/2500 Mbps with Intel® I226-LM (Q670E/R680E SKU of V.A & R680E SKU of V.B), 7-CH in and 7-CH out GPIO (shared with Fan & HDA, Smart Battery support, UART x 4 |
