SBCPRO-X51

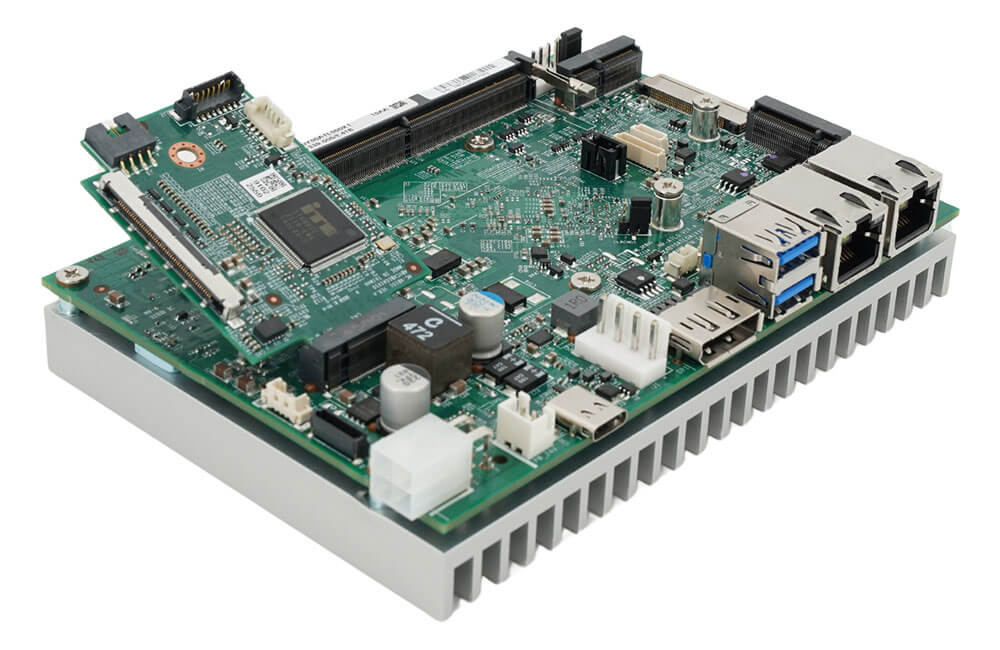

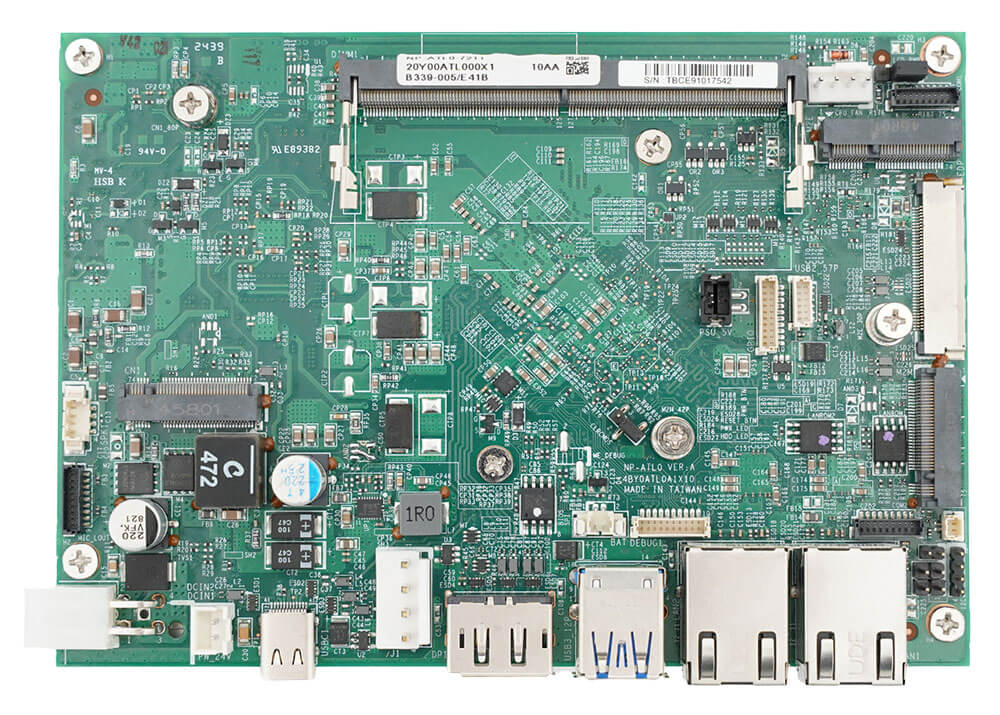

The SBCPRO-X51 is a powerful 3.5" single board computer featuring the Intel® Atom® x7211RE “Amston Lake-N” processor, engineered for high-performance industrial and IoT applications.
Its real strength lies in its M.2 expansion capabilities, offering virtually limitless customisation for your project requirements.
One standout option is the USB-C M.2 module, which simplifies system design by enabling display connection, power supply, and touch functionality—all through a single USB-C cable. For large-format 4K displays, a V-by-One M.2 module is also available.
For turnkey integration, the BPCPRO-X51 Box PC variant offers the same high performance in a fully enclosed system.
Key Features:
- Modular expansion via M.2 slots for maximum flexibility
- USB-C M.2 module: Power, DisplayPort, and touch over a single cable
- V-by-One M.2 module: Ideal for large-format 4K displays
- Wide operating temperature range: -20°C to +80°C
- Reliable 24/7 operation
- Dual 2.5GbE LAN ports for fast, stable network connectivity
- Wi-Fi support for wireless applications
- Windows 11 IoT Enterprise
- LTSC compatible
If you are interested in our product, you can contact us through our contact page.
The SBCPRO-X51 is a powerful 3.5" single board computer featuring the Intel® Atom® x7211RE “Amston Lake-N” processor, engineered for high-performance industrial and IoT applications.
Its real strength lies in its M.2 expansion capabilities, offering virtually limitless customisation for your project requirements.
One standout option is the USB-C M.2 module, which simplifies system design by enabling display connection, power supply, and touch functionality—all through a single USB-C cable. For large-format 4K displays, a V-by-One M.2 module is also available.
For turnkey integration, the BPCPRO-X51 Box PC variant offers the same high performance in a fully enclosed system.
Key Features:
- Modular expansion via M.2 slots for maximum flexibility
- USB-C M.2 module: Power, DisplayPort, and touch over a single cable
- V-by-One M.2 module: Ideal for large-format 4K displays
- Wide operating temperature range: -20°C to +80°C
- Reliable 24/7 operation
- Dual 2.5GbE LAN ports for fast, stable network connectivity
- Wi-Fi support for wireless applications
- Windows 11 IoT Enterprise
- LTSC compatible
| Dimensions: | 146 x 102 mm |
|---|---|
| Storage temperature range: | -20°C to + 80°C |
| CPU: | x7211RE |
| Processor Family: | Intel® Atom® |
| Memory : | DDR5 4800MHz SO-DIMM ×1 Max. 16GB (Non-ECC, un-buffered) |
| Interface: | Audio line out, DisplayPort, GPIO, I²C, M.2, RS232/422/485, TPM 2.0, USB-C, USB2.0, USB 3.2 Gen1, V-by-One, Watchdog |
| Operating Temperature: | -20 to +80 degC |
