PrismaMINI-HDMI-DP-II

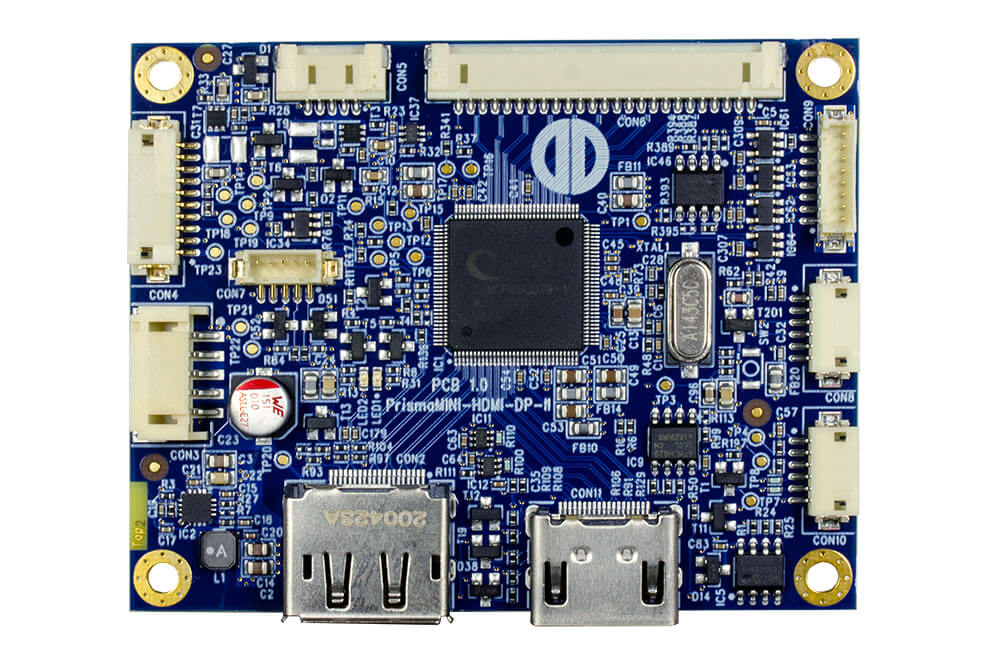

Engineered to meet high industrial quality standards while offering compact size and cost efficiency, the PrismaMINI-HDMI-DP-II is built on MStar's TSUMOP88CDT9-1 graphic chip. It can be customised to fit your specific project requirements.
Read More
In collaboration with our developers, you can define the PCB shape, input/output interfaces, and desired features to create a solution tailored to your application.
Key Features of PrismaMINI-HDMI-DP-II:
- Highly cost-effective and space-saving design
- Supports 3.3V, 5V, and 12V panels
- HDCP compliant
- HDMI 1.4 and DisplayPort inputs
- Single and dual LVDS output (up to 1920x1200)
- DDC interface for image parameter control, eliminating the need for an OSD keypad
- Serial interface (UART, RS-232) for remote OSD control (command set available upon request)
- DDC/CI functions via DP and HDMI auxiliary channel
- Optimised for LED TFT support
- HDMI/DP bridging capability
Optional:
- Â Remote OSD via serial command protocol on USB interface (additional COM port)
-  Brightness sensor for automatic brightness control (I²C)
-  Temperature sensor for internal temperature monitoring (I²C)
-  Frozen screen sensor for detecting image failure or frozen image (I²C)
PrismaMINI-HDMI-DP-II's custom options:
- Â Wide choice of input interfaces (max, input resolution 1920 x 1200 @ 60Hz)
- Â Display Port
- Â HDMI
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
PR-01-431_A1
Product information "PrismaMINI-HDMI-DP-II"
Engineered to meet high industrial quality standards while offering compact size and cost efficiency, the PrismaMINI-HDMI-DP-II is built on MStar's TSUMOP88CDT9-1 graphic chip. It can be customised to fit your specific project requirements.
In collaboration with our developers, you can define the PCB shape, input/output interfaces, and desired features to create a solution tailored to your application.
Key Features of PrismaMINI-HDMI-DP-II:
- Highly cost-effective and space-saving design
- Supports 3.3V, 5V, and 12V panels
- HDCP compliant
- HDMI 1.4 and DisplayPort inputs
- Single and dual LVDS output (up to 1920x1200)
- DDC interface for image parameter control, eliminating the need for an OSD keypad
- Serial interface (UART, RS-232) for remote OSD control (command set available upon request)
- DDC/CI functions via DP and HDMI auxiliary channel
- Optimised for LED TFT support
- HDMI/DP bridging capability
Optional:
- Â Remote OSD via serial command protocol on USB interface (additional COM port)
-  Brightness sensor for automatic brightness control (I²C)
-  Temperature sensor for internal temperature monitoring (I²C)
-  Frozen screen sensor for detecting image failure or frozen image (I²C)
PrismaMINI-HDMI-DP-II's custom options:
- Â Wide choice of input interfaces (max, input resolution 1920 x 1200 @ 60Hz)
- Â Display Port
- Â HDMI
| Inputs: | DisplayPort, HDMI |
|---|---|
| Outputs: | LVDS 18/24-bit single/dual |
| Series: | DP Video MIPI, RGB DVI HDMI, TFT-Controller |
| Storage temperature range: | -35°C to +85°C |
| Resolution: | 640x480, Full HD / WUXGA |
| Operating Temperature: | -20 to +70 degC |
