FORTEC Integrated

Prisma-V

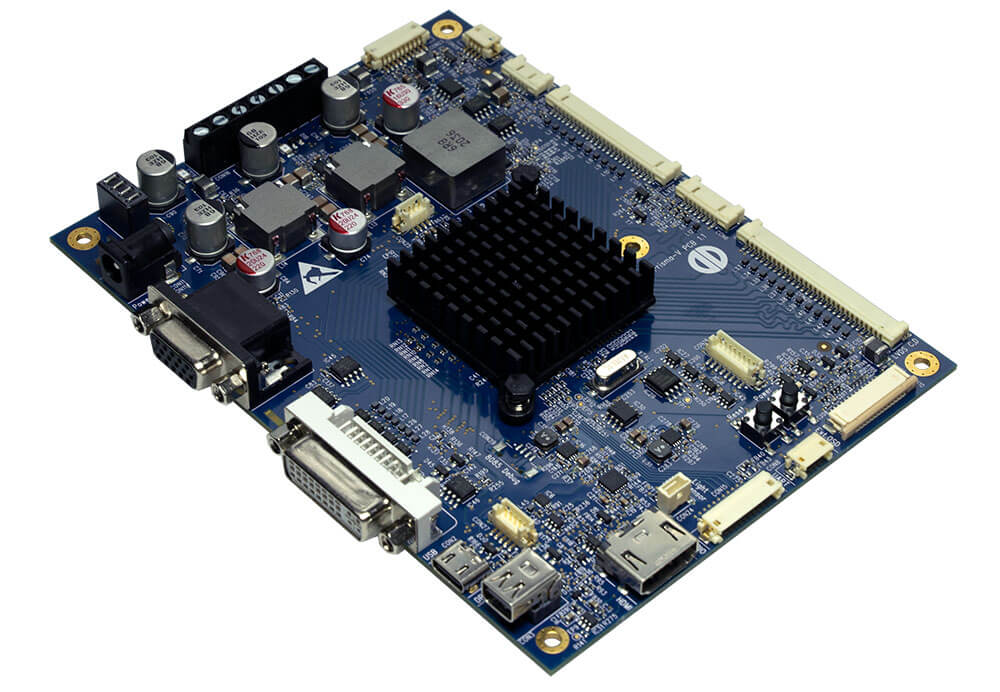

Our in-house developed Prisma-V TFT Controller board delivers exceptional graphics performance for various applications.

The Prisma-V-00 supports 2-channel LVDS displays, while the Prisma-V-01 is designed for 4-channel LVDS displays.
Both models offer:
 Interface Inputs:
 RGB analog (VGA) with optional Sync on Green (SOG)
 DVI (HDMI 1.4/HDCP) with additional AUX input

Special Features:
  •  Integrated operating hours counter
  •  Customisable input interface configuration
  •  Advanced Picture-in-Picture (PIP) and Picture-and-Picture (PAP) functionalities
  •  RS-232 serial interface for remote OSD control
  •  DDC remote control (VESA, DVI)
  •  Analog RGB Sync on Green capable (15.75 to 68KHz)
  •  4-button keypad
  •  Flexibility for VGA input with Sync-On-Green
  •  Digital DVI signal implementation with scaling up to WUXGA (1920x1200)
  •  Adjustable output frame rate via MarsRover to minimise artifacts
  •  Power supply: +12V to +24V
  •  DDC/CI functions

 Options:
  •  Ambient Light Sensor for automatic brightness control (I²C)
  •  Adjustable backlight brightness via OSD
  •  Temperature sensor (I²C)
  •  Infrared remote control
  •  Multilingual OSD menu
  •  Prisma Remote Control software for serial function control (Windows 7, 8, 10 compatibility)

 Prisma-V enables users to configure parameters using MStarRover software.
Read More

If you are interested in our product, you can contact us through our contact page.

In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU: PR-01-350 / PR-01-351
Product information "Prisma-V"
Our in-house developed Prisma-V TFT Controller board delivers exceptional graphics performance for various applications.

The Prisma-V-00 supports 2-channel LVDS displays, while the Prisma-V-01 is designed for 4-channel LVDS displays.
Both models offer:
 Interface Inputs:
 RGB analog (VGA) with optional Sync on Green (SOG)
 DVI (HDMI 1.4/HDCP) with additional AUX input

Special Features:
  •  Integrated operating hours counter
  •  Customisable input interface configuration
  •  Advanced Picture-in-Picture (PIP) and Picture-and-Picture (PAP) functionalities
  •  RS-232 serial interface for remote OSD control
  •  DDC remote control (VESA, DVI)
  •  Analog RGB Sync on Green capable (15.75 to 68KHz)
  •  4-button keypad
  •  Flexibility for VGA input with Sync-On-Green
  •  Digital DVI signal implementation with scaling up to WUXGA (1920x1200)
  •  Adjustable output frame rate via MarsRover to minimise artifacts
  •  Power supply: +12V to +24V
  •  DDC/CI functions

 Options:
  •  Ambient Light Sensor for automatic brightness control (I²C)
  •  Adjustable backlight brightness via OSD
  •  Temperature sensor (I²C)
  •  Infrared remote control
  •  Multilingual OSD menu
  •  Prisma Remote Control software for serial function control (Windows 7, 8, 10 compatibility)

 Prisma-V enables users to configure parameters using MStarRover software.
Inputs: DVI, HDMI, VGA
Outputs: LVDS 18/24/30-bit 1/2/4 - channel
Series: DP Video MIPI, RGB DVI HDMI, TFT-Controller
Storage temperature range: -35°C to +85°C
Resolution: 640x480, Full HD / WUXGA
Operating Temperature: -20 to +70 degC
