PICO-V2K4
PICO-V2K4

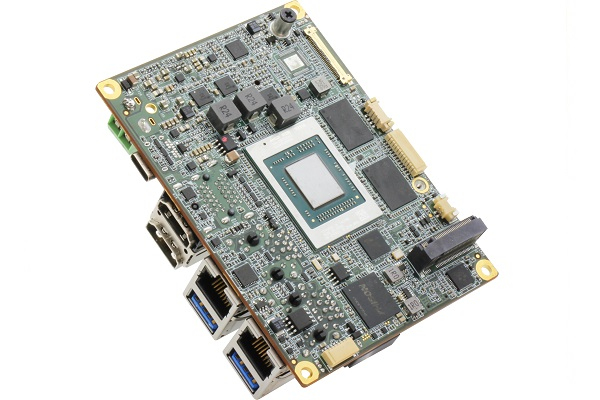

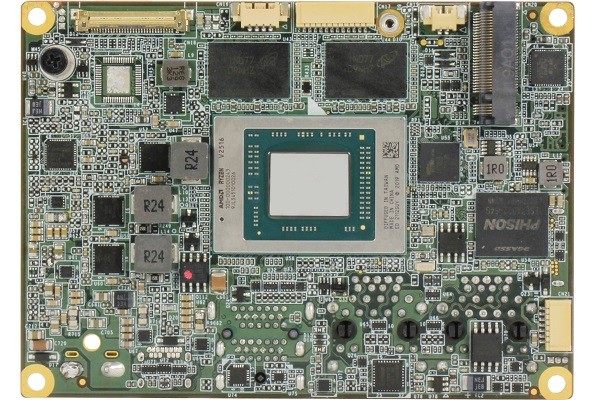

Pico-ITX Board with AMD RYZEN™ V2000 embedded Processor Family
Key features:
- AMD RYZEN™ V2000 embedded Processor Family (V2718/V2516)
- LPDDR4x onboard memory, up to 32 GB
- Intel® i226, 10/100/2500Base x 1
- Intel® i210, 10/100/1000Base x 1
- HDMI x 2 (4Kx2K, 2.0b x 1, 1.4 x 1)
- Type C to DP x 1; LVDS/eDP x 1
- M.2 2280 M key (PCIE x4 GEN3/SATA) x 1
- Full size mPCIe/mSATA x 1
- USB 3.2 Gen 2 x 2, USB 3.2 Gen 2 Type C x 1 , USB 2.0 x 4
- RS-232/422/485 x 4
| PART NUMBER | PICO-V2K4-A11-0002 | PICO-V2K4-A11-0003 | PICO-V2K4-A11-0004 | PICO-V2K4-A11-0005 | PICO-V2K4-A11-0006 | PICO-V2K4W2-A11-0006 |
|---|---|---|---|---|---|---|
| CPU | V2516 | V2516 | V2718 | V2718 | V2718 | V2718 |
| MEMORY | 4GB | 8GB | 8GB | 16GB | 32GB | 32GB |
| DISPLAY | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 eDP x 1 | Type C to DP x 1 HDMI x 2 eDP x 1 |
| STORAGE | SATAIII x 1 | SATAIII x 1 Onboard NVME SSD 64GB x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 |
| RS-232/422/485 | 4 | 4 | 4 | 4 | 4 | 4 |
| EXPANSION SLOT | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | 0~60˚C | 0~60˚C | 0~60˚C | 0~60˚C | 0~60˚C | -40~85˚C |
| AUDIO | — | — | — | — | — | — |
| OTHERS | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
PICO-V2K4
Product information "PICO-V2K4"
Pico-ITX Board with AMD RYZEN™ V2000 embedded Processor Family
Key features:
- AMD RYZEN™ V2000 embedded Processor Family (V2718/V2516)
- LPDDR4x onboard memory, up to 32 GB
- Intel® i226, 10/100/2500Base x 1
- Intel® i210, 10/100/1000Base x 1
- HDMI x 2 (4Kx2K, 2.0b x 1, 1.4 x 1)
- Type C to DP x 1; LVDS/eDP x 1
- M.2 2280 M key (PCIE x4 GEN3/SATA) x 1
- Full size mPCIe/mSATA x 1
- USB 3.2 Gen 2 x 2, USB 3.2 Gen 2 Type C x 1 , USB 2.0 x 4
- RS-232/422/485 x 4
| PART NUMBER | PICO-V2K4-A11-0002 | PICO-V2K4-A11-0003 | PICO-V2K4-A11-0004 | PICO-V2K4-A11-0005 | PICO-V2K4-A11-0006 | PICO-V2K4W2-A11-0006 |
|---|---|---|---|---|---|---|
| CPU | V2516 | V2516 | V2718 | V2718 | V2718 | V2718 |
| MEMORY | 4GB | 8GB | 8GB | 16GB | 32GB | 32GB |
| DISPLAY | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 LVDS x 1 | Type C to DP x 1 HDMI x 2 eDP x 1 | Type C to DP x 1 HDMI x 2 eDP x 1 |
| STORAGE | SATAIII x 1 | SATAIII x 1 Onboard NVME SSD 64GB x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 | USB 2.0 x 4 USB3.2 Gen 2 x 2 USB 3.2 Gen 2 Type C x 1 |
| RS-232/422/485 | 4 | 4 | 4 | 4 | 4 | 4 |
| EXPANSION SLOT | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | 0~60˚C | 0~60˚C | 0~60˚C | 0~60˚C | 0~60˚C | -40~85˚C |
| AUDIO | — | — | — | — | — | — |
| OTHERS | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 | SMBUS x 1 TPM2.0 |
| CPU: | AMD Ryzen™ Embedded V2000 processors, V2516, V2718 |
|---|---|
| Memory : | 32GB |
| Display : | HDMI / Type C, LVDS, eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | mSATA / mPCIe |
| Expansion : | M.2 2280 M-key x 1 |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 1, i219, 1GbE RJ-45 x 1, i226 |
