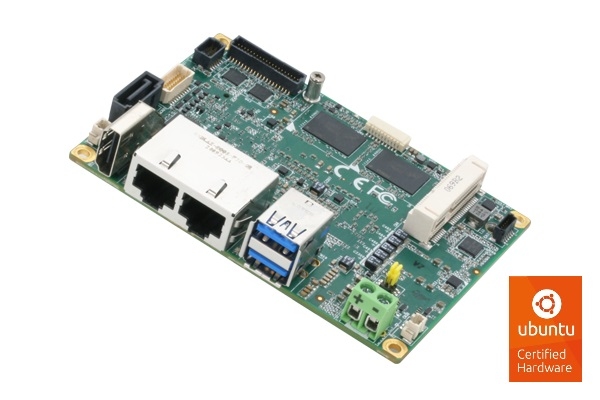

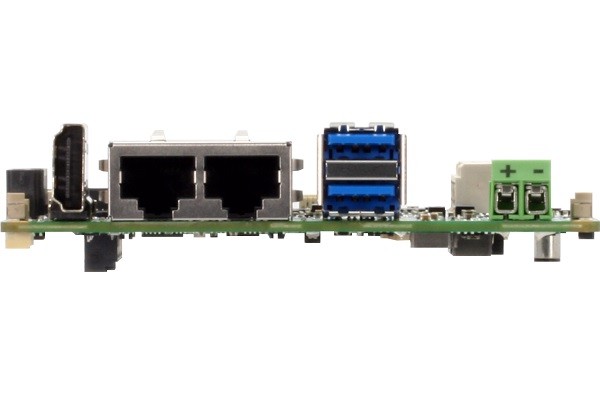

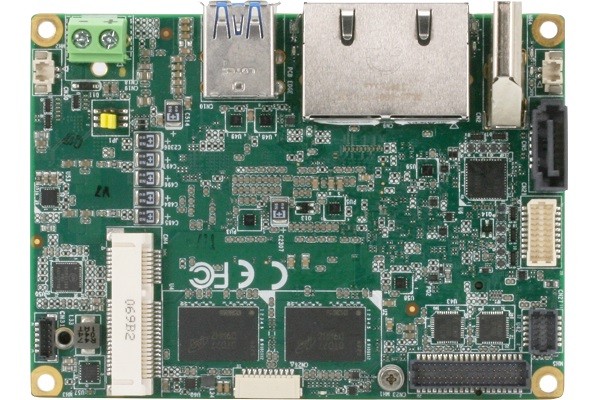

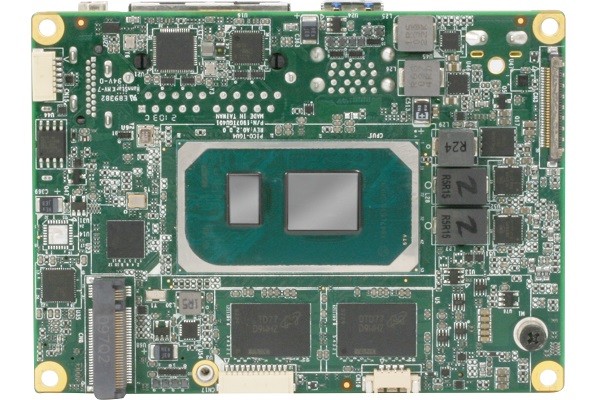

Intel Tiger Lake | Pico-ITX Board with 11th Generation Intel® Core™ i7/i5/i3/Celeron® U-Series Processor SoC
Key features:
- 11th Gen Intel® Core™ i7/i5/i3/Celeron Processor SoC
- LPDDR4x Onboard memory, Max. 32 GB
- 2.5GbE Intel i226 + 1GbE Intel i219
- HDMI2.0b x 1, 4Kx2K + eDP, up to HBR3 8K
- M.2 2280 M key(PCIE by4 GEN4/SATA) x 1
- SATA 6.0 Gb/s x 1
- Full size mPCIe/mSATA x 1
- USB 3.2 Gen 2 x 2, USB 3.2 Gen 1 x 2, USB 2.0 x 4
- RS-232/422/485 x 2
- Line-in/Line-out/MIC (Optional)
- GPIO 8 bit
| PART NUMBER | PICO-TGU4-A10-0003 | PICO-TGU4-A10-0004 | PICO-TGU4-A10-0005 | PICO-TGU4-A10-0006 | PICO-TGU4-A10-0007 | PICO-TGU4-A10-0008 | PICO-TGU4W1-A10-0005 |
|---|---|---|---|---|---|---|---|
| CPU | i3-1115G4E | i5-1145G7E | i7-1185G7E | i7-1185G7E | i7-1185G7E | i5-1145G7E | i7-1185G7E |
| MEMORY | 8G | 8G | 8G | 32G | 16G | 16G | 8G |
| DISPLAY | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 |
| STORAGE | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 | SATAIII x 1 |
| LAN | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 | 2.5GbE x 1 GbE x 1 |
| USB | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) | USB3.2 GEN2 x 2 (Rear) USB3.2 GEN1 x 2 (header) USB2.0 x 4 (header) |
| RS-232/422/485 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 | M.2 2280 M-key x 1 mini-PCIe(Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -20°C~70°C |
| AUDIO | — | — | — | — | — | — | — |
| OTHERS | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 | GPIO, SMBUS/eSPI x 1 |
