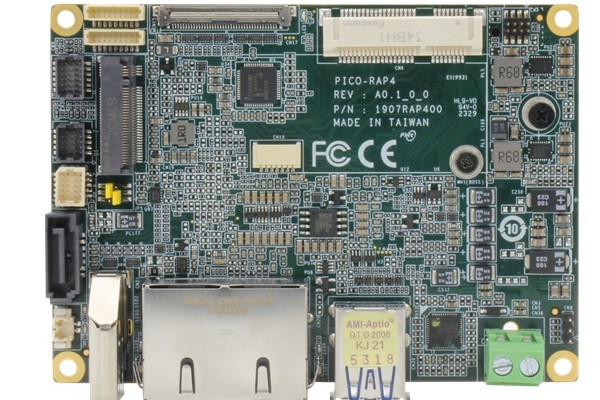

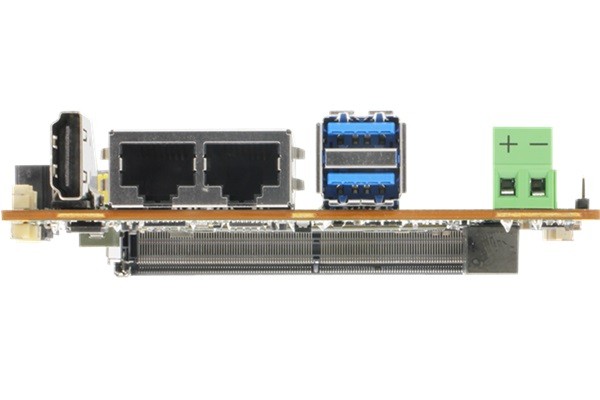

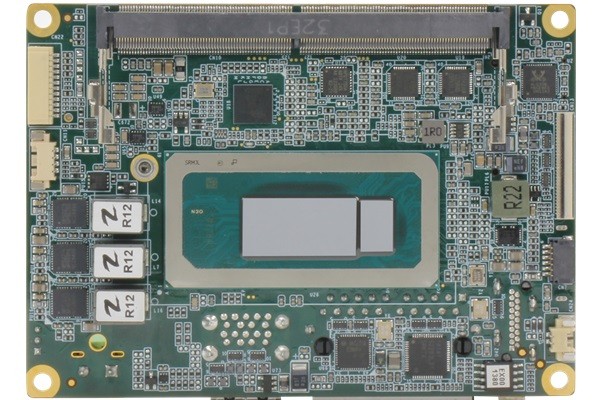

PICO-RAP4
Pico-ITX Board with 13th Gen Intel® Core™ i7/i5/i3 Processor
- 13th Gen Intel® Core™ i7/i5/i3 Processor SoC
- DDR5 SODIMM, Max. 32GB
- Intel® Ethernet Controller I226, 2.5GbE + Intel® Ethernet Connection I219, 1GbE
- HDMI 1.4 + eDP 1.4/LVDS, 18/24-bit Dual-Channel
- Half-size mPCIe/mSATA x 1, M.2 2280 M-Key x 1
- USB 3.2 Gen 2 x 2, USB 2.0 x 2, RS-232/422/485 x 2
- TPM 2.0, SATA 6Gb/s x 1, SMBus/I2C x 1, GPIO 8-bit
- MIPI-CSI 4-lane x 2
- Line-in/Line-out/Mic (Optional)
| PART NUMBER | PICO-RAP4-A10-0001 | PICO-RAP4-A10-0002 | PICO-RAP4-A10-0003 | PICO-RAP4-A10-0004 | PICO-RAP4W2-A10-0005 | PICO-RAP4-A10-0006 |
|---|---|---|---|---|---|---|
| CPU | Intel® Processor U300E | Intel® Core™ i3-1320PE | Intel® Core™ i5-1340PE | Intel® Core™ i7-1370PE | Intel® Core™ i7-1370PRE | Intel® Core™ i7-1360P |
| MEMORY | DDR5 SODIMM | DDR5 SODIMM | DDR5 SODIMM | DDR5 SODIMM | DDR5 SODIMM | DDR5 SODIMM |
| DISPLAY | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 |
| STORAGE | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 |
| COM | 2 | 2 | 2 | 2 | 2 | 2 |
| EXPANSION SLOT | M.2 2280 M-Key x 1 miniCard (Half) x 1 | M.2 2280 M-Key x 1 miniCard (Half) x 1 | M.2 2280 M-Key x 1 miniCard (Half) x 1 | M.2 2280 M-Key x 1 miniCard (Half) x 1 | M.2 2280 M-Key x 1 miniCard (Half) x 1 | M.2 2280 M-Key x 1 miniCard (Half) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) | +12V (DC Jack) |
| OPERATING TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C | -40°C ~ 85°C | 0°C ~ 60°C |
| AUDIO | — | — | — | — | — | Line-in/Line-out/Mic |
| OTHERS | GPIO, SMBUS, TPM, MIPI-CSI | GPIO, SMBUS, TPM, MIPI-CSI | GPIO, SMBUS, TPM, MIPI-CSI | GPIO, SMBUS, TPM, MIPI-CSI | GPIO, SMBUS, TPM, MIPI-CSI | GPIO, SMBUS, TPM, MIPI-CSI |
