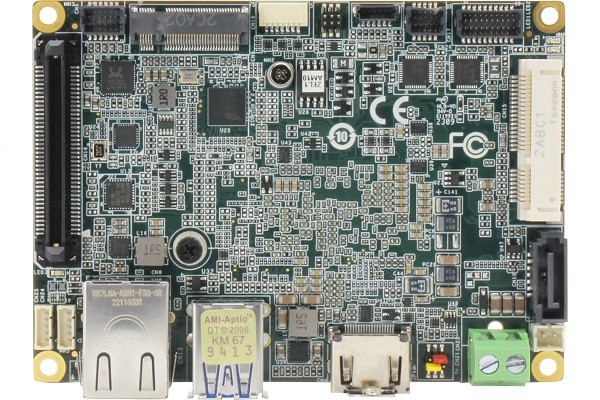

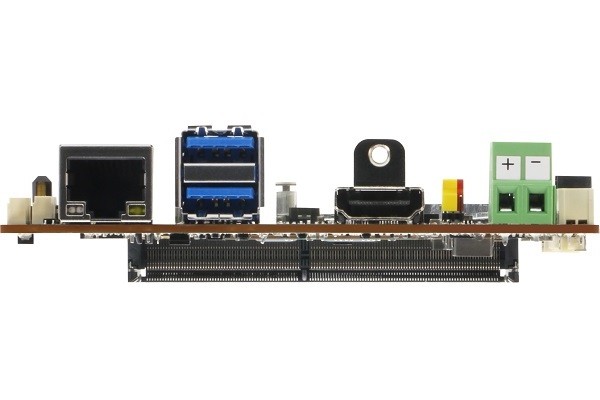

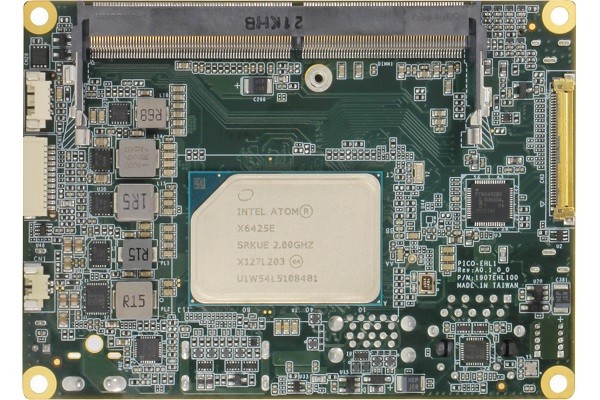

PICO-EHL1
Pico-ITX Board with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Processors
Key features:
- DDR4 3200MHz SODIMM x 1, up to 32GB
- eDP 1.3/LVDS x 1 (2CH 18/24-bit)
- HDMI 1.4b x 1
- Realtek RTL8111H-CG x 1
- Line-in/Line-out/MIC (Optional)
- TPM 2.0 (Optional)
- Full Size mPCIe/mSATA x 1
- M.2 2242 B-Key x 1
- USB 3.2 Gen 2 x 2, USB 2.0 x 2
- RS-232/422/485 x 2
- BIO (PCIe /[x2/], line out, DDI, GPIO, LPC, SMBUS, USB 3.0/2.0)
| PART NUMBER | PICO-EHL1-A10-0001 | PICO-EHL1-A10-0002 | PICO-EHL1W2-A10-0003 |
|---|---|---|---|
| CPU | Intel® Celeron® Processor N6210 | Intel® Celeron® Processor J6412 | Intel Atom® x6425E |
| DISPLAY | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 |
| STORAGE | SATA III x 1 | SATA III x 1 | SATAIII x 1 |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 2.0 x 2 USB 3.2 Gen 2 x 2 | USB 2.0 x 2 USB 3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 |
| RS-232/422/485 | 2 | 2 | 2 |
| EXPANSION SLOT | M.2 2242 B-Key x 1 Full Size Mini Card x 1 | M.2 2242 B-Key x 1 Full Size Mini Card x 1 | M.2 2242 B-key x 1 miniCard (Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | 0~60˚C | 0~60˚C | -40~85˚C |
| OTHERS | DIO | DIO | DIO |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
PICO-EHL1
Product information "PICO-EHL1"
Pico-ITX Board with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Processors
Key features:
- DDR4 3200MHz SODIMM x 1, up to 32GB
- eDP 1.3/LVDS x 1 (2CH 18/24-bit)
- HDMI 1.4b x 1
- Realtek RTL8111H-CG x 1
- Line-in/Line-out/MIC (Optional)
- TPM 2.0 (Optional)
- Full Size mPCIe/mSATA x 1
- M.2 2242 B-Key x 1
- USB 3.2 Gen 2 x 2, USB 2.0 x 2
- RS-232/422/485 x 2
- BIO (PCIe /[x2/], line out, DDI, GPIO, LPC, SMBUS, USB 3.0/2.0)
| PART NUMBER | PICO-EHL1-A10-0001 | PICO-EHL1-A10-0002 | PICO-EHL1W2-A10-0003 |
|---|---|---|---|
| CPU | Intel® Celeron® Processor N6210 | Intel® Celeron® Processor J6412 | Intel Atom® x6425E |
| DISPLAY | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 |
| STORAGE | SATA III x 1 | SATA III x 1 | SATAIII x 1 |
| LAN | GbE x 1 | GbE x 1 | GbE x 1 |
| USB | USB 2.0 x 2 USB 3.2 Gen 2 x 2 | USB 2.0 x 2 USB 3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 |
| RS-232/422/485 | 2 | 2 | 2 |
| EXPANSION SLOT | M.2 2242 B-Key x 1 Full Size Mini Card x 1 | M.2 2242 B-Key x 1 Full Size Mini Card x 1 | M.2 2242 B-key x 1 miniCard (Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | 0~60˚C | 0~60˚C | -40~85˚C |
| OTHERS | DIO | DIO | DIO |
| CPU: | J6412, N6210, x6211E, x6425E |
|---|---|
| Processor Family: | Intel® Atom®, Intel® Celeron®, Intel® Pentium® |
| Memory : | 32GB |
| Display : | HDMI / LVDS / eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB 2.0 x2, USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2242 B-Key x 1, mSATA / mPCIe |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | RJ45 x 1, Realtek 8111H-CG 1 GbE |
