PICO-BT01
PICO-BT01

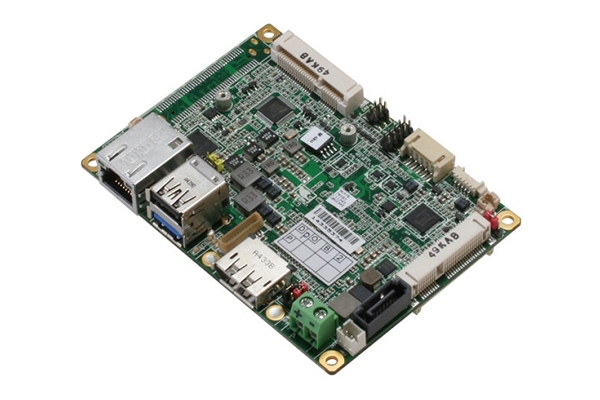

The PICO-BT01 is the embedded board with PICO-ITX form factor AAEON developed. It supports Intel®’s Atom™ E3845/E3825 SoC Up to 1.91 GHz. Moreover, the Intel® Atom™ E3845/E3825 SoC offers a high performance computing platform with low power consumption. This new product supports DDR3L SODIMM at speeds of 1066/1333 MHz, up to 8 GB.
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
PICO-BT01
Product information "PICO-BT01"
The PICO-BT01 is the embedded board with PICO-ITX form factor AAEON developed. It supports Intel®’s Atom™ E3845/E3825 SoC Up to 1.91 GHz. Moreover, the Intel® Atom™ E3845/E3825 SoC offers a high performance computing platform with low power consumption. This new product supports DDR3L SODIMM at speeds of 1066/1333 MHz, up to 8 GB.
| Certifications Technical Data: | CE, FCC Class A |
|---|---|
| Operating humidity Technical Data: | 0% - 90% relative humidity |
| Power Connector Technical Data: | 2-Pin Pheonix connector x1 / Lockable DC-in x1 |
| SMBus/I2C Technical Data: | I2C/SMbus x 1 |
| CPU: | Intel® Celeron® J1900/N2930/N2807, Atom® E3845/E3825 |
| Processor Family: | Intel® Atom®, Intel® Celeron® |
| Memory : | DDR3L-1333 SO DIMM, up to 8GB x 1 |
| Display : | Display Port / VGA / LVDS |
| Storage : | SATA 3.0 Gb/s x1 |
| USB Ports: | USB 3.2 Gen 1 x1, USB 2.0 x1, USB 2.0 x1 (Pin header) |
| COM: | RS232 x1, RS232/422/485 x1 |
| Expansion : | M.2 / mSATA / mPCIe |
| Expansion : | Full-size mSATA/mPCIe x1, Half-size mPCIe x1 |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC / -40 to +85 degC |
| Ethernet Technical Data: | RJ45 x1, Intel i210 1 GbE |
| Display Output Technical Data: | Display Port x1, VGA x1, LVDS (18/24-bit 2CH) x1 |
| Dimensions Technical Data: | 100mm(L) x 72mm(W) |
| DIO/GPIO Technical Data: | 4-bit x1 |
| Audio Technical Data: | Realtek ALC897/892 Audio x1 |
