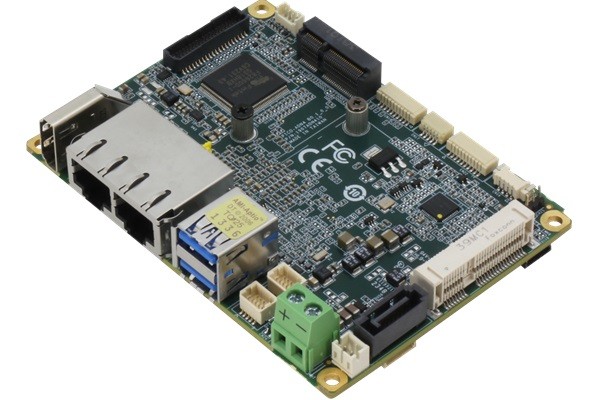

PICO-ASL4 REV.B
Pico-ITX Board with Intel Atom® x7000RE Series
- Intel Atom® x7000RE series
- DDR5 4800 MHz, SODIMM x 1, Up to 16GB
- HDMI1.4 x 1, eDP1.4b/LVDS x 1
- Intel® i226v 2.5GbE, RJ-45 x 1 , REALTEK.RTL8111H 1GbE, RJ-45 x 1
- Full-Size mSATA/mPCIe x 1, M.2 2230 E-key x1
- USB 3.2 Gen2[x1] x 2 ports, USB2.0 x 4,
- RS-232/422/485 x 2, RS-232 x 2
- TPM2.0, SATA 6.0Gbps x 1, GPIO 4-bit, SMBUS/I2C x 1
- DC 9~36V input (Optional, support by power adapter card)
| PART NUMBER | PICO-ASL4W2-B10-0001 | PICO-ASL4W2-B10-0002 |
|---|---|---|
| CPU | x7433RE | x7835RE |
| MEMORY | DDR5 SO-DIMM | DDR5 SO-DIMM |
| DISPLAY | HDMI x 1 LVDS x 1 | HDMI x 1 LVDS x 1 |
| STORAGE | SATAIII x 1 | SATAIII x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 2.0 x 4 USB3.2 Gen 2 x 2 | USB 2.0 x 4 USB3.2 Gen 2 x 2 |
| COM | RS232/422/485 x 2 RS232 x 2 | RS232/422/485 x 2 RS232 x 2 |
| EXPANSION SLOT | M.2 2230 E-key x 1 miniCard (Full) x 1 | M.2 2230 E-key x 1 miniCard (Full) x 1 |
| POWER | +12V (Terminal block) | +12V (Terminal block) |
| OPERATING TEMP | -40°C ~ 85°C | -40°C ~ 85°C |
| AUDIO | — | — |
| OTHERS | SMBus x 1, TPM2.0, GPIO | SMBus x 1, TPM2.0, GPIO |
