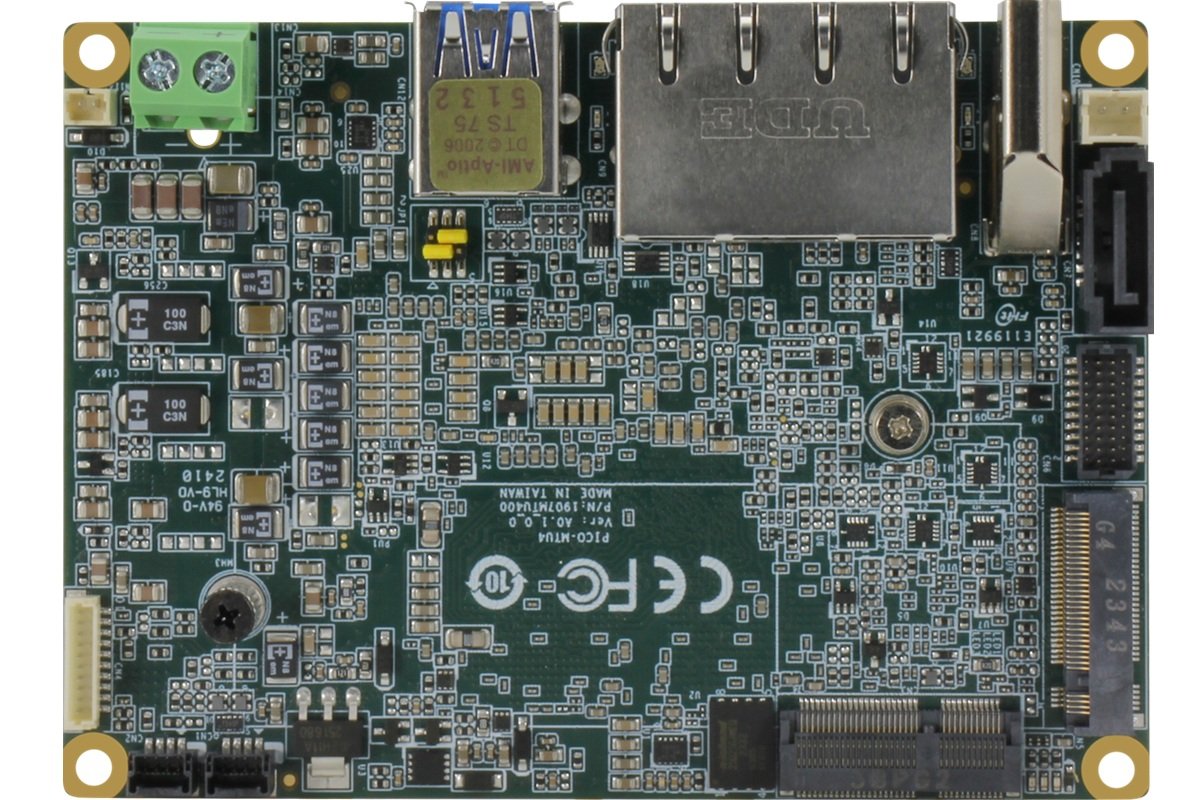

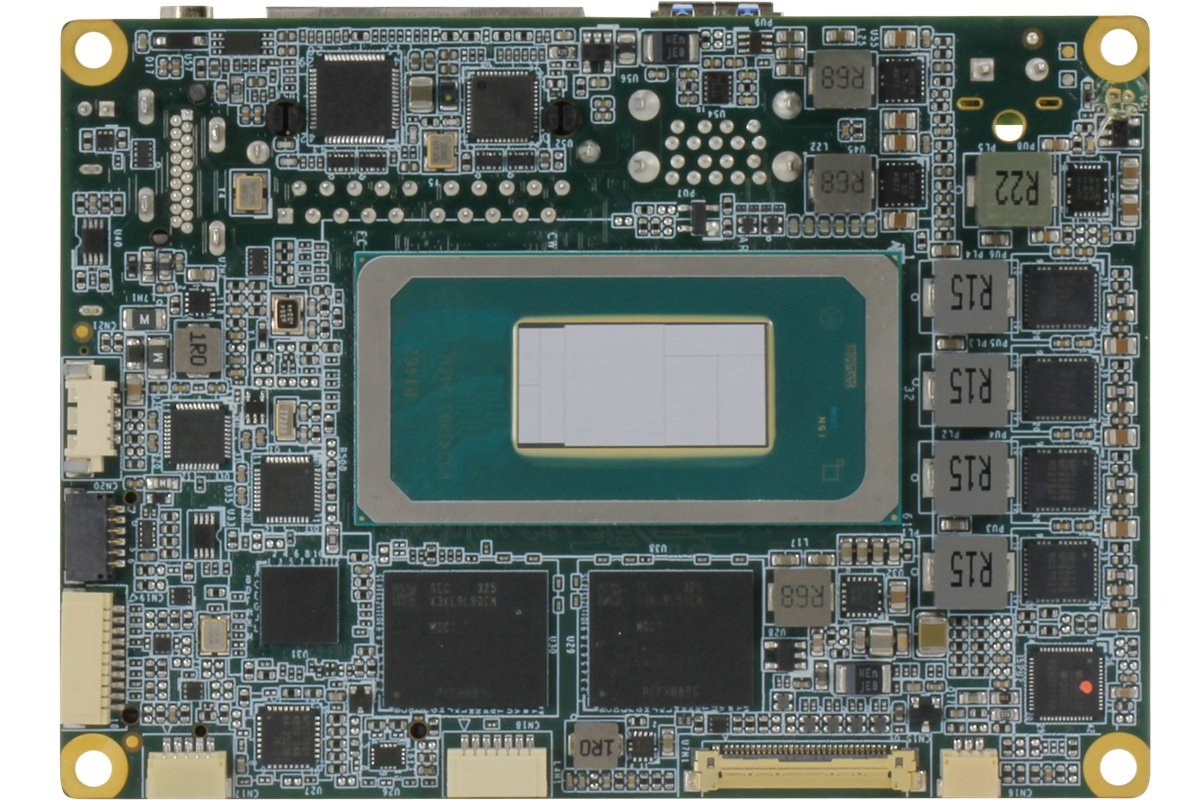

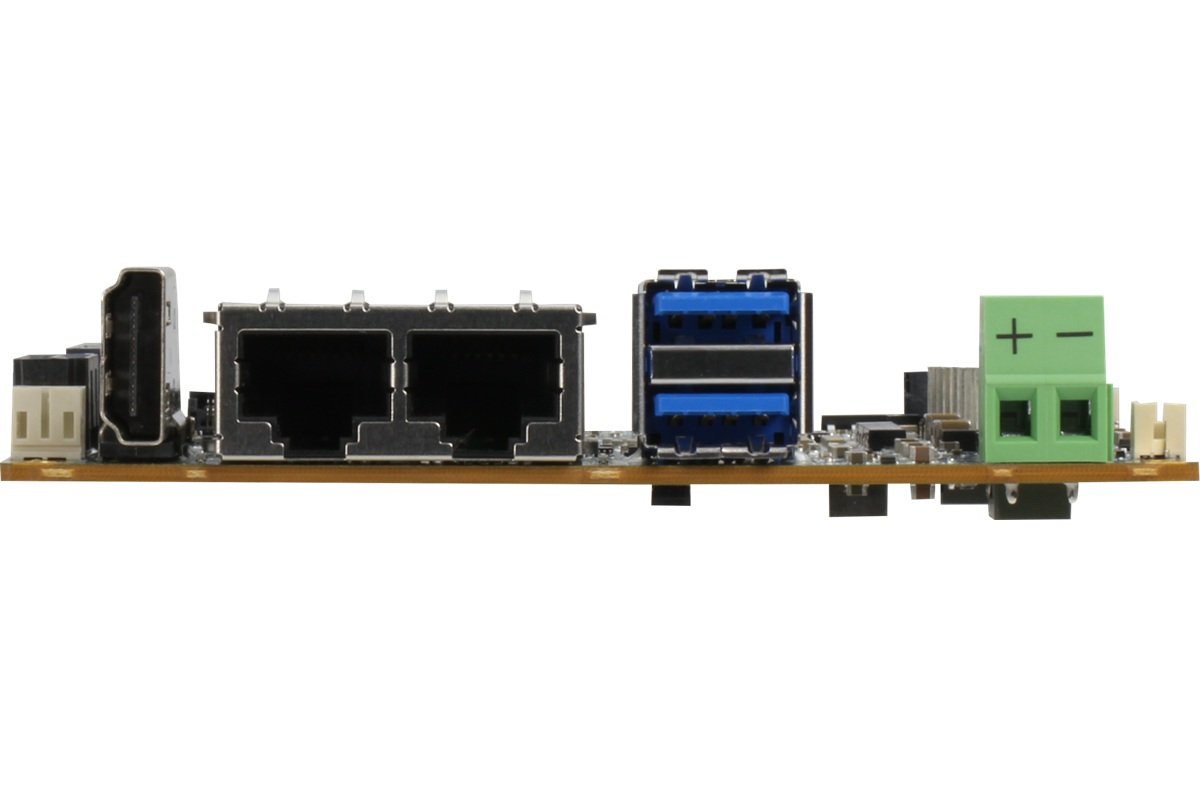

PICO-ARU4
Pico-ITX Board with Intel® Core™ Ultra Processors (Series 2)
Key features:
- Intel® Core™ Ultra Processors (Series 2) SoC
- Onboard LPDDR5, up to 32GB
- 2.5GbE + 1GbE
- HDMI 1.4 + eDP 1.4
- M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
- M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
- USB 3.2 Gen 2 x 2 + USB 2.0 x 2
- RS-232/422/485 x 2
- TPM, GPIO 4-bit, SATA 6Gb/s x 1
- SMBus/I2C (Default: SMBus)
- Intel® AMT Support
| PART NUMBER | PICO-ARU4-A10-0002 | PICO-ARU4-A10-0003 | PICO-ARU4-A10-0004 |
|---|---|---|---|
| CPU | Intel® Core™ Ultra 5 Processor 225U | Intel® Core™ Ultra 5 Processor 225U | Intel® Core™ Ultra 7 Processor 255U |
| Memory | LPDDR5 16GB | LPDDR5 32GB | LPDDR5 32GB |
| Display | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 |
| Storage | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 |
| COM | RS232/422/485 x 2 | RS232/422/485 x 2 | RS232/422/485 x 2 |
| Expansion slot | M.2 2230 E-key x 1 M.2 2280 M-key x 1 | M.2 2230 E-key x 1 M.2 2280 M-key x 1 | M.2 2230 E-key x 1 M.2 2280 M-key x 1 |
| Power | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| Operating Temp | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Audio | — | — | — |
| Others | SMBus x 1, TPM2.0, GPIO | SMBus x 1, TPM2.0, GPIO | SMBus x 1, TPM2.0, GPIO |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
PICO-ARU4
Product information "PICO-ARU4 "
Pico-ITX Board with Intel® Core™ Ultra Processors (Series 2)
Key features:
- Intel® Core™ Ultra Processors (Series 2) SoC
- Onboard LPDDR5, up to 32GB
- 2.5GbE + 1GbE
- HDMI 1.4 + eDP 1.4
- M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
- M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
- USB 3.2 Gen 2 x 2 + USB 2.0 x 2
- RS-232/422/485 x 2
- TPM, GPIO 4-bit, SATA 6Gb/s x 1
- SMBus/I2C (Default: SMBus)
- Intel® AMT Support
| PART NUMBER | PICO-ARU4-A10-0002 | PICO-ARU4-A10-0003 | PICO-ARU4-A10-0004 |
|---|---|---|---|
| CPU | Intel® Core™ Ultra 5 Processor 225U | Intel® Core™ Ultra 5 Processor 225U | Intel® Core™ Ultra 7 Processor 255U |
| Memory | LPDDR5 16GB | LPDDR5 32GB | LPDDR5 32GB |
| Display | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 | HDMI x 1 eDP x 1 |
| Storage | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 | SATA 6Gb/s x 1 |
| LAN | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 | GbE x 1 2.5GbE x 1 |
| USB | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 | USB 2.0 x 2 USB3.2 Gen 2 x 2 |
| COM | RS232/422/485 x 2 | RS232/422/485 x 2 | RS232/422/485 x 2 |
| Expansion slot | M.2 2230 E-key x 1 M.2 2280 M-key x 1 | M.2 2230 E-key x 1 M.2 2280 M-key x 1 | M.2 2230 E-key x 1 M.2 2280 M-key x 1 |
| Power | +12V (Terminal block) | +12V (Terminal block) | +12V (Terminal block) |
| Operating Temp | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Audio | — | — | — |
| Others | SMBus x 1, TPM2.0, GPIO | SMBus x 1, TPM2.0, GPIO | SMBus x 1, TPM2.0, GPIO |
| CPU: | Ultra 5 Processor 225U, Ultra 7 Processor 255U |
|---|---|
| Processor Family: | Intel® Core |
| Memory : | 32GB |
| Display : | HDMI / eDP |
| Storage : | SATA 6.0 Gb/s x 1 |
| USB Ports: | USB 3.2 Gen2 x2, USB 2.0 x2 (Pin header) |
| Expansion : | M.2 2230 E-Key x 1, M.2 2280 M-key x 1 |
| Power Requirement: | 12v |
| Operating Temperature: | 0 to +60 degC |
| Ethernet Technical Data: | 2.5GbE RJ-45 x 1, i219, 1GbE RJ-45 x 1, i226 |
