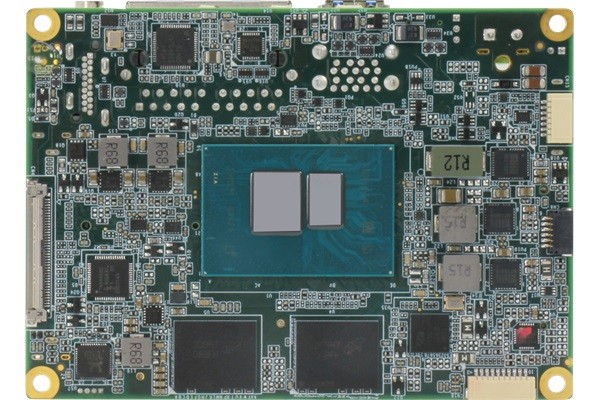

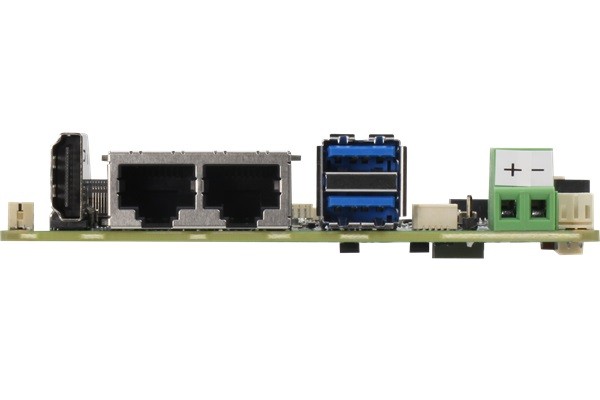

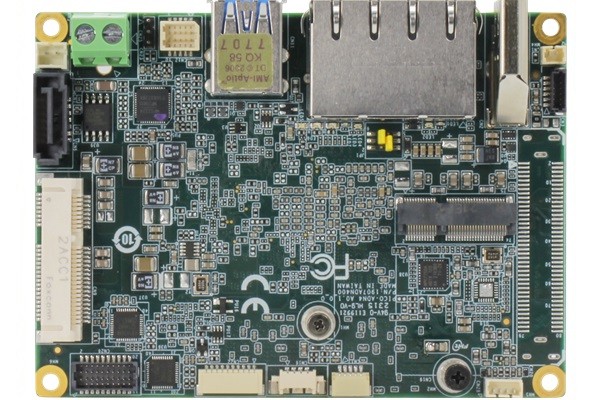

PICO-ADN4
PICO-ADN4
Intel Atom® x7000E Series, N-series, Core™ i3-N305 Processor (formerly Alder Lake N)
- Onboard LPDDR5 4800, Single Channel (Max.16GB)
- HDMI1.4 x 1, eDP1.4/LVDS x 1
- Intel® i226v 2.5GbE, RJ-45 x 1
- REALTEK.RTL8111H-CG 1GbE, RJ-45 x 1
- Full-Size mSATA/mPCIe x 1, M.2 2230 E-key x1
- USB 3.2 Gen2 x 2, USB2.0 x 2, RS-232/422/485 x 2
- TPM2.0, SATA 6.0Gbps x 1, GPIO 4-bit, SMBUS/I2C x 1
- BIO support (Optional), Audio: Line out (Optional)
- DC 9-36V input (Optional, support by power adapter card)
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
PICO-ADN4
Product information "PICO-ADN4"
PICO-ADN4
Intel Atom® x7000E Series, N-series, Core™ i3-N305 Processor (formerly Alder Lake N)
- Onboard LPDDR5 4800, Single Channel (Max.16GB)
- HDMI1.4 x 1, eDP1.4/LVDS x 1
- Intel® i226v 2.5GbE, RJ-45 x 1
- REALTEK.RTL8111H-CG 1GbE, RJ-45 x 1
- Full-Size mSATA/mPCIe x 1, M.2 2230 E-key x1
- USB 3.2 Gen2 x 2, USB2.0 x 2, RS-232/422/485 x 2
- TPM2.0, SATA 6.0Gbps x 1, GPIO 4-bit, SMBUS/I2C x 1
- BIO support (Optional), Audio: Line out (Optional)
- DC 9-36V input (Optional, support by power adapter card)
| Processor Family: | Intel® Atom®, Intel® Core |
|---|---|
| Memory : | 16G |
| Display : | HDMI / LVDS / eDP |
| Storage : | SATA III x1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 / mSATA / mPCIe, M.2 2230 E-Key x 1 |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | RJ45 x2, Intel I226LM 2.5GbE |
