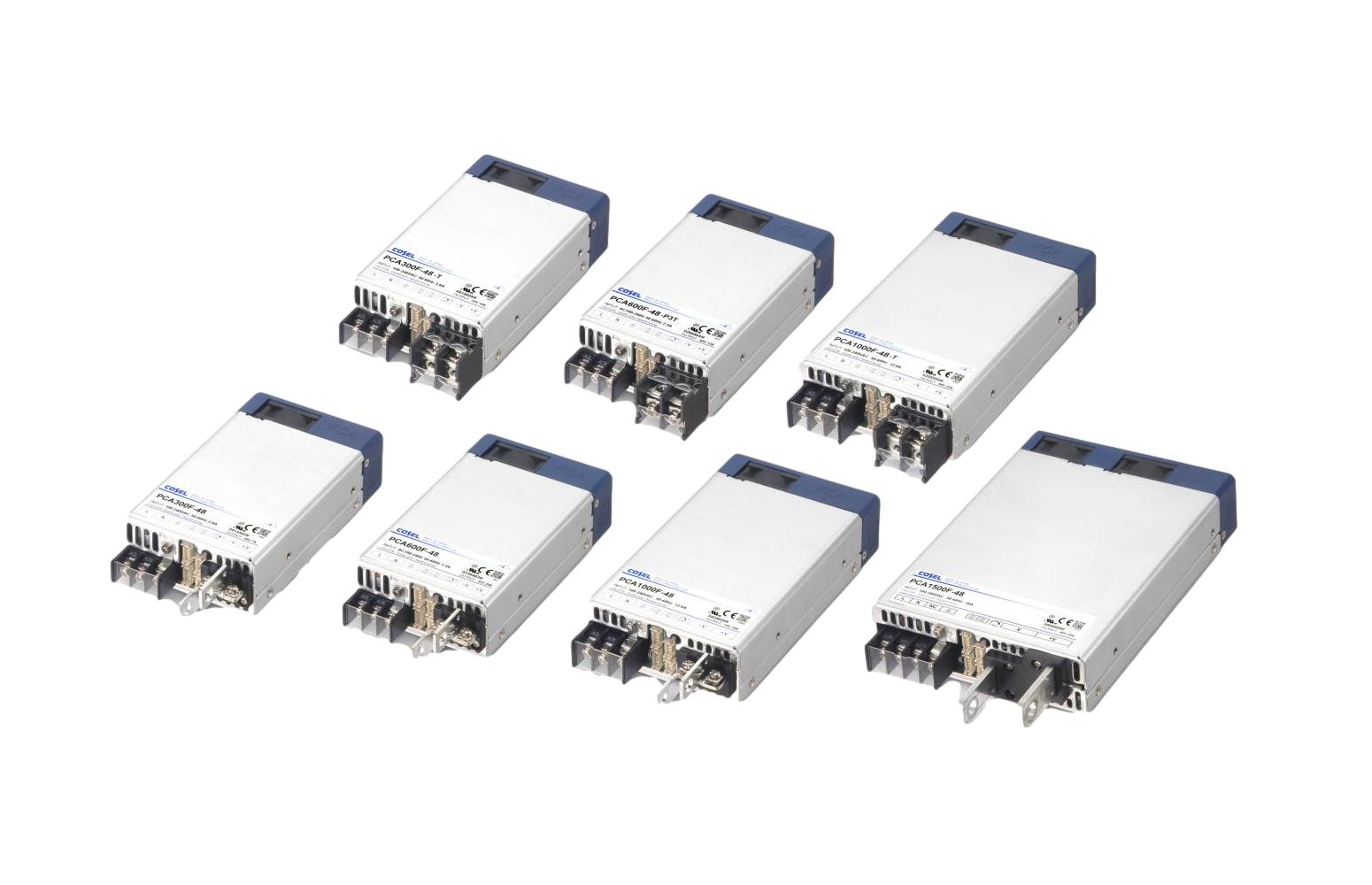

The PCA Series from Cosel is an AC/DC full function power supply in an enclosed frame (1U high), suitable for medical and industrial applications. Accepting both AC as well as DC inputs and features an auxiliary 5V to 12V 0.1A output.
Available in the following power ratings: 300W / 600W / 1000W / 1500W
Features:
- Power factor correction
- Medical isolation Grade 2MOPP
- Parallel operation
- PMBus
- Inrush current limiting, overcurrent and overvoltage protection
- Remote on/off
- EN62368-1, EN60601-1, EN55011-B, EN55032-B, EN61000, EN61204
Example of model numbers: PCA300F-12 / PCA600F-24 / PCA600F-48 / PCA1000F-24 / PCA1000F-48 / PCA1500F-24 / PCA1500F-48
| Model | PCA300F | PCA600F | PCA1000F | PCA1500F |
| Output power | 300 W | 600 W | 1000 W | 1500 W |
| Output Type | Single | Single | Single | Single |
| Output Voltage | 5V, 12V, 15V, 24V, 32V, 48V | 5V, 12V, 15V, 24V, 32V, 48V | 5V, 12V, 15V, 24V, 32V, 48V | 5V, 12V, 15V, 24V, 32V, 48V |
If you are interested in our product, you can contact us through our contact page.
The PCA Series from Cosel is an AC/DC full function power supply in an enclosed frame (1U high), suitable for medical and industrial applications. Accepting both AC as well as DC inputs and features an auxiliary 5V to 12V 0.1A output.
Available in the following power ratings: 300W / 600W / 1000W / 1500W
Features:
- Power factor correction
- Medical isolation Grade 2MOPP
- Parallel operation
- PMBus
- Inrush current limiting, overcurrent and overvoltage protection
- Remote on/off
- EN62368-1, EN60601-1, EN55011-B, EN55032-B, EN61000, EN61204
Example of model numbers: PCA300F-12 / PCA600F-24 / PCA600F-48 / PCA1000F-24 / PCA1000F-48 / PCA1500F-24 / PCA1500F-48
| Model | PCA300F | PCA600F | PCA1000F | PCA1500F |
| Output power | 300 W | 600 W | 1000 W | 1500 W |
| Output Type | Single | Single | Single | Single |
| Output Voltage | 5V, 12V, 15V, 24V, 32V, 48V | 5V, 12V, 15V, 24V, 32V, 48V | 5V, 12V, 15V, 24V, 32V, 48V | 5V, 12V, 15V, 24V, 32V, 48V |
| Dimensions: | 89 x 41 x 152 mm, 102 x 41 x 178 mm, 140 x 41 x 203 mm |
|---|---|
| Efficiency: | 86%, 87%, 88%, 89%, 90%, 91%, 92%, 93% |
| Input Voltage: | 85-264V |
| Operating Temp Range: | -20 to +70 degC |
| Output Current: | 7A, 10A, 13A, 14A, 20A, 22A, 27A, 33A, 35A, 43A, 44A, 52A, 53A, 60A, 70A, 88A, 100A, 125A, 200A |
| Output Power: | 300W, 600W, 1000W, Up to 1500W |
| Output Voltage: | 5V, 12V, 15V, 24V, 32V, 48V |
| Storage temperature range: | -20°C to +75°C |
| Certifications: | ANSI/AAMI ES 60601-1, CAN/CSA C22.2 No. 62368-1, CAN/CSA C22.2 No 60601-1, EN 60601-1, EN 62368-1, IEC 60601-1, UL 508, UL 62368-1 |
