PBA_Series
PBA_Series

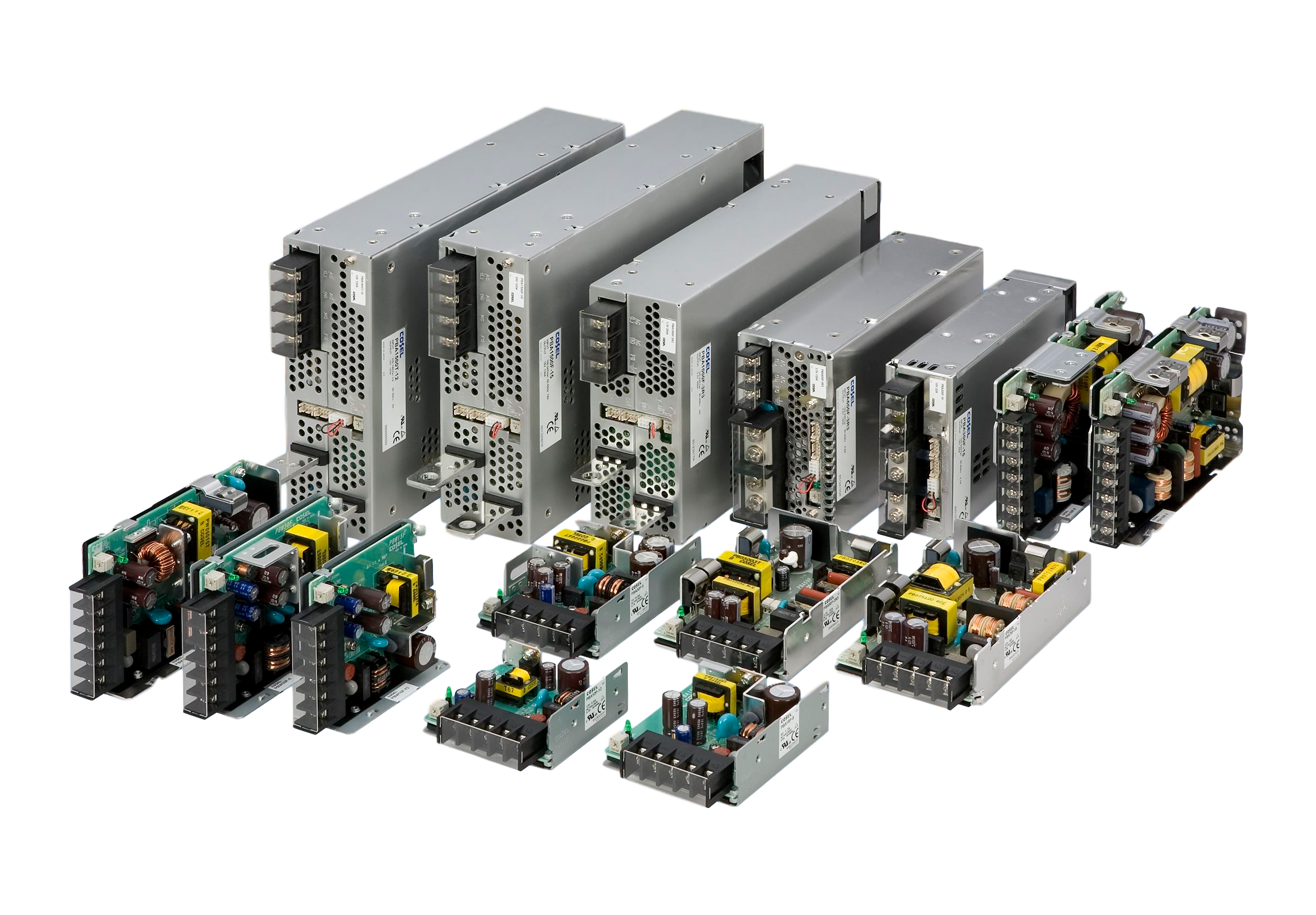

The PBA Series from Cosel is a full function AC-DC Power Supply, small and lightweight.
Available in the following power ratings: 10W / 15W / 30W / 50W / 75W / 100W / 150W / 300W / 600W / 1000W / 1500W
Features:
- Variety of options available, including low leakage current
- Output voltage adjustable
- PFC correction
- Parallel/Redundancy operation
- Built in remote on/off
- Peak power handling and inrush current limiting
- Overcurrent and overvoltage protection
- Constant current
- 5 year warranty
- EN61204-3, EN61000-6-2, EN60950-1, EN62368-1, EN55011-B approved
Example of Model Part Numbers: PBA50F / PBA100F / PBA300F / PBA600F / PBA1000F / PBA1500F / PBA1500T
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
PBA_Series
Product information "PBA_Series"
The PBA Series from Cosel is a full function AC-DC Power Supply, small and lightweight.
Available in the following power ratings: 10W / 15W / 30W / 50W / 75W / 100W / 150W / 300W / 600W / 1000W / 1500W
Features:
- Variety of options available, including low leakage current
- Output voltage adjustable
- PFC correction
- Parallel/Redundancy operation
- Built in remote on/off
- Peak power handling and inrush current limiting
- Overcurrent and overvoltage protection
- Constant current
- 5 year warranty
- EN61204-3, EN61000-6-2, EN60950-1, EN62368-1, EN55011-B approved
Example of Model Part Numbers: PBA50F / PBA100F / PBA300F / PBA600F / PBA1000F / PBA1500F / PBA1500T
| Cooling Method: | Forced Air |
|---|---|
| Format: | Enclosed |
| Input Voltage: | 85-264V |
| Operating Temp Range: | -20 to +71°C |
| Output Power: | Up to 1500W |
| Output Voltage: | 3.3, 5, 7.5, 12, 15, 24, 36, 48V |
| Power Format: | Enclosed |
| Power Type: | AC-DC |
| Series: | CoselPBA |
