NL6448BC33-71D
NL6448BC33-71D

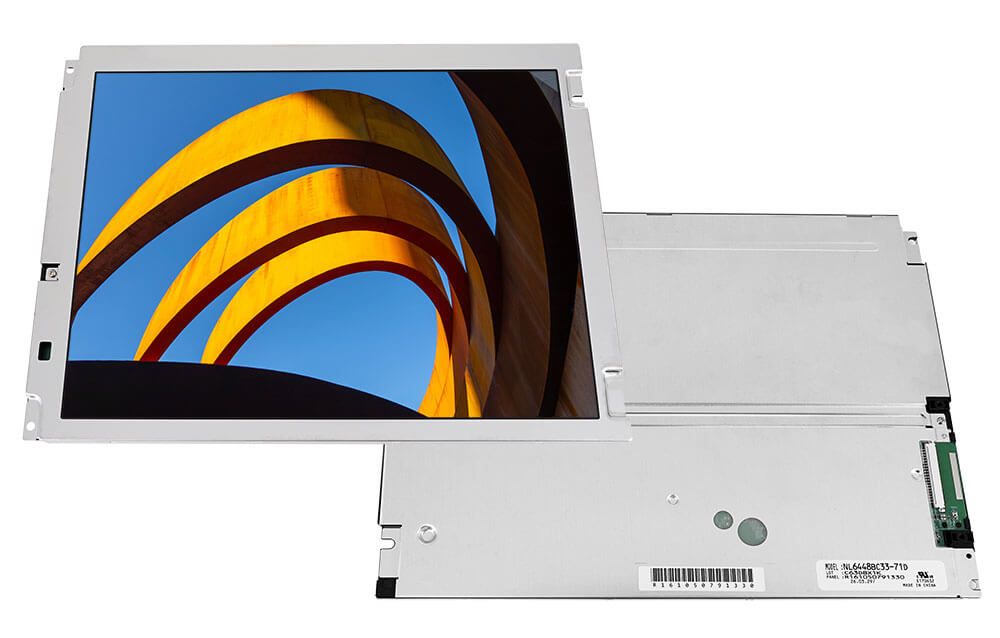

The Tianma NL6448BC33-71D is a high-quality 10.4-inch TFT LCD display designed for industrial, medical, transportation and embedded applications that demand long-term reliability and excellent image quality. Featuring a VGA resolution of 640 × 480 pixels in a classic 4:3 aspect ratio, the display provides crisp and stable visuals for human-machine interfaces (HMI), industrial controllers and legacy systems. With a typical brightness of 450 cd/m² and a 900:1 contrast ratio, it delivers clear, high-contrast images even in brightly lit environments. The display offers wide 80° viewing angles in all directions (160° total), ensuring consistent image quality from multiple viewing positions. An LVDS 6/8-bit interface enables fast and reliable integration into modern embedded platforms, while the LED backlight provides a long operational lifetime of up to 70,000 hours, reducing maintenance requirements. The panel supports 16.7 million colours (8-bit) and features an anti-glare surface with a 3H hard coating, making it suitable for demanding industrial environments. Designed to operate across a wide temperature range of -30 °C to +80 °C, the NL6448BC33-71D is well suited for applications exposed to harsh environmental conditions. Its compact mechanical design and low power consumption make it an excellent choice for space-constrained systems where efficiency is important. Whether used in industrial automation, medical equipment, transportation systems or test and measurement devices, the Tianma NL6448BC33-71D delivers reliable performance, long service life and outstanding image quality for professional applications.
Key Features
- 10.4-inch industrial TFT LCD display
- VGA resolution (640 × 480 pixels)
- Classic 4:3 aspect ratio
- LED backlight with up to 70,000-hour lifetime
- Brightness: 450 cd/m²
- Contrast ratio: 900:1
- Wide viewing angles: 80°/80°/80°/80° (160° total)
- Supports 16.7 million colours (8-bit) or 262K colours (6-bit)
- LVDS 6/8-bit interface
- Fast 18 ms typical response time
- Anti-glare surface with 3H hard coating
- Operating temperature: -30 °C to +80 °C
- Low power consumption of approximately 3.5 W
- Ideal for industrial automation, medical devices, transportation, HMI systems and embedded computing
If you are interested in our product, you can contact us through our contact page.
The Tianma NL6448BC33-71D is a high-quality 10.4-inch TFT LCD display designed for industrial, medical, transportation and embedded applications that demand long-term reliability and excellent image quality. Featuring a VGA resolution of 640 × 480 pixels in a classic 4:3 aspect ratio, the display provides crisp and stable visuals for human-machine interfaces (HMI), industrial controllers and legacy systems. With a typical brightness of 450 cd/m² and a 900:1 contrast ratio, it delivers clear, high-contrast images even in brightly lit environments. The display offers wide 80° viewing angles in all directions (160° total), ensuring consistent image quality from multiple viewing positions. An LVDS 6/8-bit interface enables fast and reliable integration into modern embedded platforms, while the LED backlight provides a long operational lifetime of up to 70,000 hours, reducing maintenance requirements. The panel supports 16.7 million colours (8-bit) and features an anti-glare surface with a 3H hard coating, making it suitable for demanding industrial environments. Designed to operate across a wide temperature range of -30 °C to +80 °C, the NL6448BC33-71D is well suited for applications exposed to harsh environmental conditions. Its compact mechanical design and low power consumption make it an excellent choice for space-constrained systems where efficiency is important. Whether used in industrial automation, medical equipment, transportation systems or test and measurement devices, the Tianma NL6448BC33-71D delivers reliable performance, long service life and outstanding image quality for professional applications.
Key Features
- 10.4-inch industrial TFT LCD display
- VGA resolution (640 × 480 pixels)
- Classic 4:3 aspect ratio
- LED backlight with up to 70,000-hour lifetime
- Brightness: 450 cd/m²
- Contrast ratio: 900:1
- Wide viewing angles: 80°/80°/80°/80° (160° total)
- Supports 16.7 million colours (8-bit) or 262K colours (6-bit)
- LVDS 6/8-bit interface
- Fast 18 ms typical response time
- Anti-glare surface with 3H hard coating
- Operating temperature: -30 °C to +80 °C
- Low power consumption of approximately 3.5 W
- Ideal for industrial automation, medical devices, transportation, HMI systems and embedded computing
| Screen Diagonal: | 10.4" |
|---|---|
| Brightness: | 450cd/m2 |
| Resolution: | 640x480 VGA |
| Viewing Angle: | 160°/160° |
| Interface: | LVDS 6/8b |
| Ratio: | 900:1 |
| Operating Temperature: | -30 to +80 degC |
