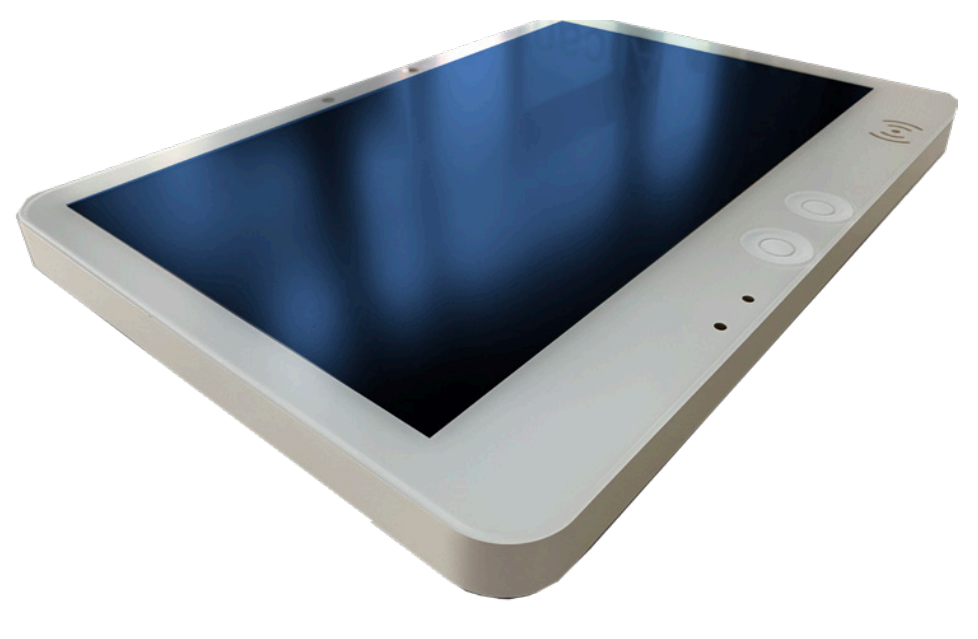

Med-Line 15.6" High End Touch Monitor
The MED-Line 15.6 High-End Touch Monitor from FORTEC is a medical-grade display platform designed for integration into modern healthcare equipment and ISO 13485 medical device development projects. Featuring a 15.6" Full HD display with 500 cd/m² brightness and wide viewing angles, the monitor ensures clear visualisation of clinical data across a range of medical workstation environments.
Read More
Key Features:Â
- IP65 proof front monitor solution
- Automatic function testing and display
- Flexibly configurable connectivity box for security-compliant data transmission
- One-cable solution
- Light sensor: Automatically adjusts display brightness
- Proximity sensor: Detects if someone is in front of the monitor
- Integrated camera: Perfect for telemedicine applications
- NFC reader: For fast and secure authentication
- Front control buttons: Simple and intuitive operation
- Complete integration into ISO 13485 designs possible
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
SW10128
Product information "Med-Line 15.6" High End Touch Monitor "
The MED-Line 15.6 High-End Touch Monitor from FORTEC is a medical-grade display platform designed for integration into modern healthcare equipment and ISO 13485 medical device development projects. Featuring a 15.6" Full HD display with 500 cd/m² brightness and wide viewing angles, the monitor ensures clear visualisation of clinical data across a range of medical workstation environments.
Key Features:Â
- IP65 proof front monitor solution
- Automatic function testing and display
- Flexibly configurable connectivity box for security-compliant data transmission
- One-cable solution
- Light sensor: Automatically adjusts display brightness
- Proximity sensor: Detects if someone is in front of the monitor
- Integrated camera: Perfect for telemedicine applications
- NFC reader: For fast and secure authentication
- Front control buttons: Simple and intuitive operation
- Complete integration into ISO 13485 designs possible
| Output Current: | 2A |
|---|---|
| Output Voltage: | 21-29V |
| Screen Diagonal: | 15.6" |
| Storage temperature range: | -20°C to +60°C |
| Touch Option: | PCAP |
| Brightness: | 500cd/m2 |
| Display Resolution: | 1920x1080 |
| Viewing Angle: | 80°/80°/80°/80° |
| Ratio: | 1000:1 |
| Operating Temperature: | -10 to +60degC |
| Certifications: | EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3 |
