Introducing Nottrot Marine Monitors – Now Available from FORTEC UK
Built for bridge navigation, control systems, and 24/7 operation, the N-Line series combines full-glass panel mount design, IP 65/67 protection (front only), optical bonding, and wide dimming with a sleek, modern appearance.

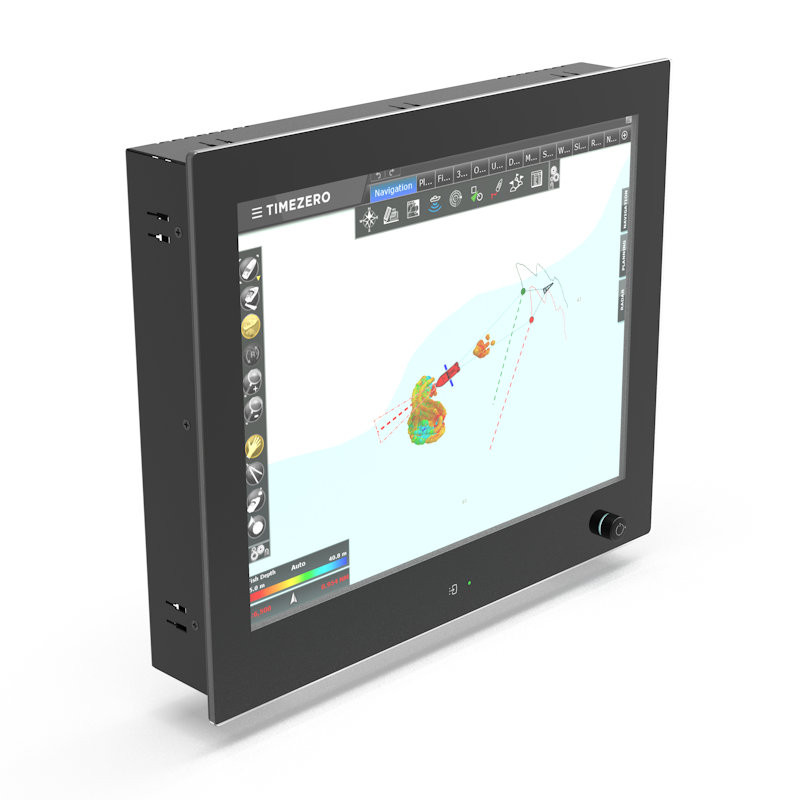

N-Line N150KGE
- 15.0" TFT display, XGA 1024 × 768
- Brightness: 500 nits (optional 1500 nits)
- Contrast ratio: 700:1
- Viewing angle: 89°/89°/89°/89°
- Inputs: VGA, DVI-D, HDMI, Composite Video
- Dimming function
- Operating temperature: -30°C to +80°C
- IP65 protection (front only)
- Option to be DNV approved

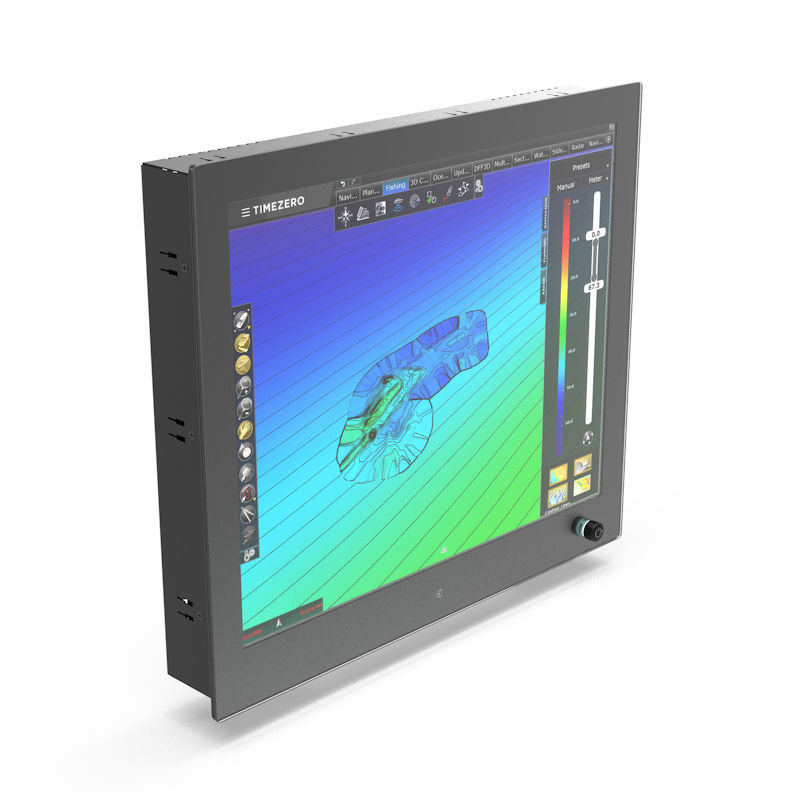

N-Line N190KGE
- 19.0" TFT display, SXGA 1280 × 1024
- Brightness: 400 nits (optional 1500 nits)
- Contrast ratio: 900:1
- Viewing angle: 89°/89°/89°/89°
- Inputs: VGA, DVI-D, HDMI, Composite Video
- Dimming function
- Operating temperature: -10°C to +70°C
- IP65 protection (front only)
- Option to be DNV approved

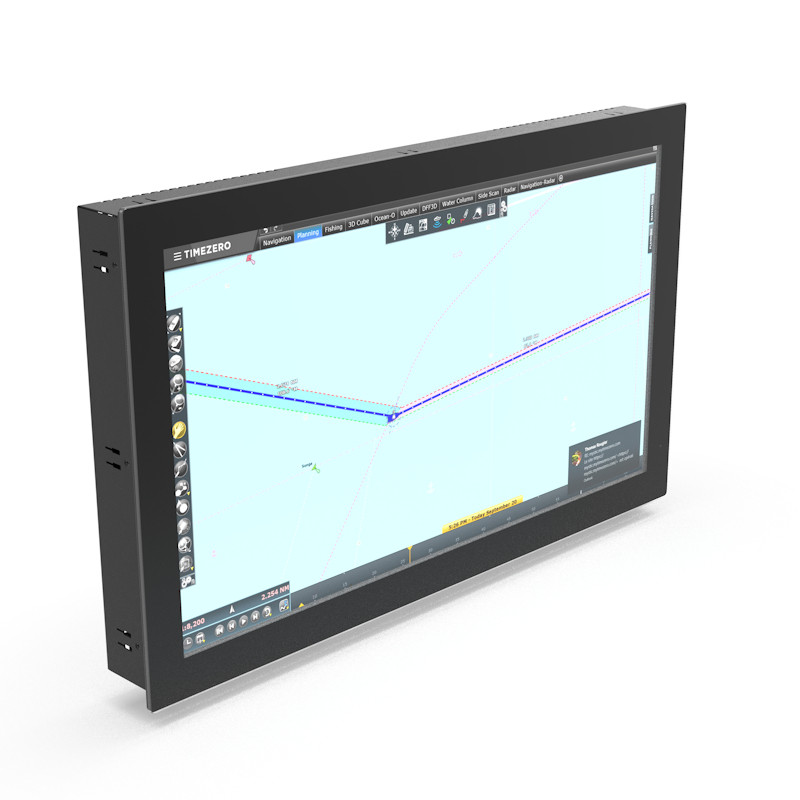

N-Line N240KG
- 24.0" TFT display, Full HD 1920 × 1080
- Brightness: 300 nits (optional 1000 nits)
- Contrast ratio: 5000:1
- Viewing angle: 89°/89°/89°/89°
- Inputs: VGA, DVI-D, HDMI, Composite Video
- Dimming function
- Operating temperature: -20°C to +70°C
- IP67 protection (front only)
- Option to be DNV approved
DNV Approved Marine Monitors with Intuitive Control Options
The models are DNV Type Approved, giving shipyards, operators, and system integrators the confidence that these displays meet international standards for safety and reliability at sea.
Control is simple and intuitive:
-
KGE models include a front-mounted multifunctional dimming knob and a hidden capacitive switch for easy input selection (DVI, VGA, HDMI, Video).
-
KG models feature an external dimming option for flexible integration.
Key Features
Please note: Features marked with * are enhancements required to reach DNV approval.
- Projected capacitive touchscreen with raindrop detection *
- Remote dimming (0.05–100%) *
- High-brightness display for excellent sunlight readability
- Optical bonding to minimise reflection and prevent condensation *
- Anti-glare glass for consistently clear visibility *
- Wide input voltage (9–36V), electrically isolated power supply with EMC filtering *
- Integrated embedded board (from 15”) for all-in-one solutions
Mounting options:
Primarily designed for flush-mount installation, these monitors can also be mounted using a VESA bracket for stand or wall placement.
Engineered for reliability, style, and compliance, these monitors deliver certified performance where it matters most — from navigation bridges to control systems.
Trusted Partnership for Maritime Displays
At FORTEC UK, our expertise in engineering, integration, and local customer support combines with Nottrot’s decades of experience in designing rugged maritime displays. Together, we deliver solutions that are not only DNV Type Approved but also engineered for long-term reliability at sea.
This trusted approach is proven worldwide:
-
In Palma de Mallorca, C-Tronics selected Nottrot B.V.’s fully glass-front, IP67 monitors for on-deck use, delivering clarity and durability in bright sunlight and salt spray.
-
In Australia, Active Marine Electronics installed N150KGE high-bright LED displays, providing clear visuals even in the harshest lighting conditions.
Whether you are a shipbuilder, system integrator, or fleet operator, you can trust this partnership to bring you the very best in marine monitor performance, compliance, and lifecycle support.
Ready to discuss your project?
Contact us info@fortec.uk
