MINMAX Technology

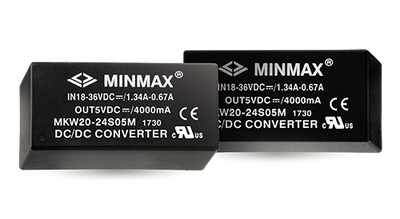

MKW20M-24
MKW20M-24
The
MINMAX MKW20M series is a range of high performance 20W medical approved DC-DC
converter within encapsulated 2”x1” package which specifically design for
medical applications. There are 21 models available for input voltage of 12,
24, 48VDC with wide 2:1 input range and fixed output voltage. The I/O isolation
is specified for 4200VAC with reinforced insulation, which rated for 300Vrms
working voltage. Further features include under-voltage, overload, over
voltage, short circuit protection, no min. load requirement, EMI emission EN
55011 class A approved, low I/O leakage current 5μA
max. and operating ambient temp. range by -40℃ to 80℃ by high efficiency up to 90%.
Read More
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MKW20M-24
Product information "MKW20M-24"
The
MINMAX MKW20M series is a range of high performance 20W medical approved DC-DC
converter within encapsulated 2”x1” package which specifically design for
medical applications. There are 21 models available for input voltage of 12,
24, 48VDC with wide 2:1 input range and fixed output voltage. The I/O isolation
is specified for 4200VAC with reinforced insulation, which rated for 300Vrms
working voltage. Further features include under-voltage, overload, over
voltage, short circuit protection, no min. load requirement, EMI emission EN
55011 class A approved, low I/O leakage current 5μA
max. and operating ambient temp. range by -40℃ to 80℃ by high efficiency up to 90%.
| Industry: | Medical Safety |
|---|---|
| Input Voltage: | 24V |
| Operating Temp Range: | -40 to +80 degC |
| Output Power: | 20W |
| Output Voltage: | 5, 5.1, 12, 15, 24, ±12, ±15V |
| Package: | 2" x 1" |
| Power Type: | DC-DC |
