MINMAX Technology

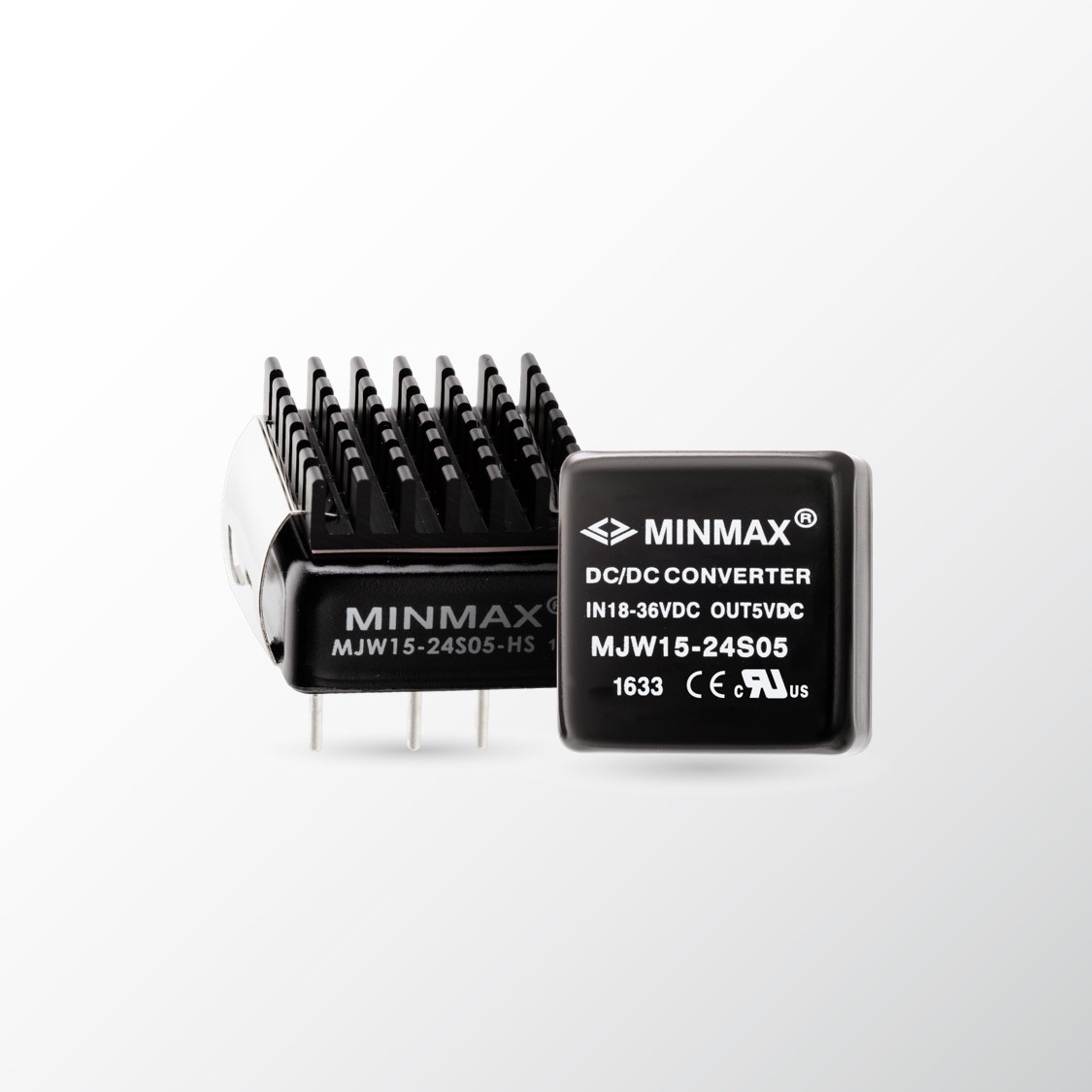

MJW15
MJW15
DC-DC Power Supply
15W Isolated Power Supply
Key Features:
- Wide 2:1 Input Voltage Range
- Fully Regulated Output Voltage
- I/O Isolation 1500VDC
- Low No Load Power Consumption
- No Min. Load Requirement
- Under-voltage, Overload/Voltage and Short Circuit Protection
- Remote On/Off Control, Output Voltage Trim
- Shielded Metal Case with Insulated Baseplate
Approvals: EN55032, EN62368-1, EN60950-1, FCC class A
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MJW15
Product information "MJW15"
DC-DC Power Supply
15W Isolated Power Supply
Key Features:
- Wide 2:1 Input Voltage Range
- Fully Regulated Output Voltage
- I/O Isolation 1500VDC
- Low No Load Power Consumption
- No Min. Load Requirement
- Under-voltage, Overload/Voltage and Short Circuit Protection
- Remote On/Off Control, Output Voltage Trim
- Shielded Metal Case with Insulated Baseplate
Approvals: EN55032, EN62368-1, EN60950-1, FCC class A
Cooling Method: | Convection |
---|---|
Format: | PCB Mount |
Input Voltage: | 9-18, 18-36, 36-75V |
No. of Outputs: | Single |
Operating Temp Range: | -40 to +80 degC |
Output Power: | Up to 15W |
Output Voltage: | 3.3, 5, 12, 15, 24, ±12, ±15V |
Power Format: | PCB Mount |
Power Type: | DC-DC |
