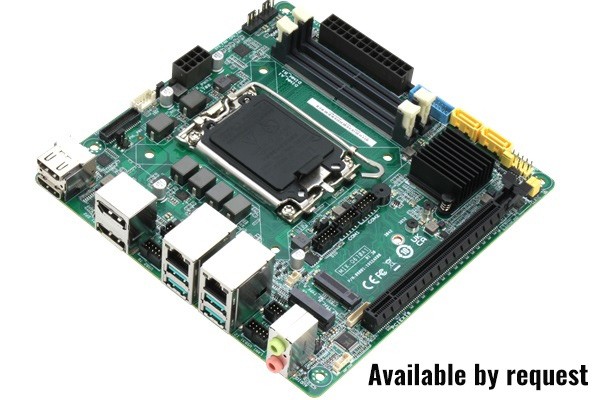

MIX-Q670A1
MIX-Q670A1
Mini-ITX with Intel® 12th Generation Core™ LGA1700 Socket Processor, Max. 65W TDPs, HDMI2.0 x 2 + DP1.2 x 2, Giga-LAN x 2, DDR5x2 Max. 64GB
Features include:
- 12th Gen. Intel® Core™ LGA1700 Processor
- DDR5 DRAM Support, 4800MHz, Max. 64GB

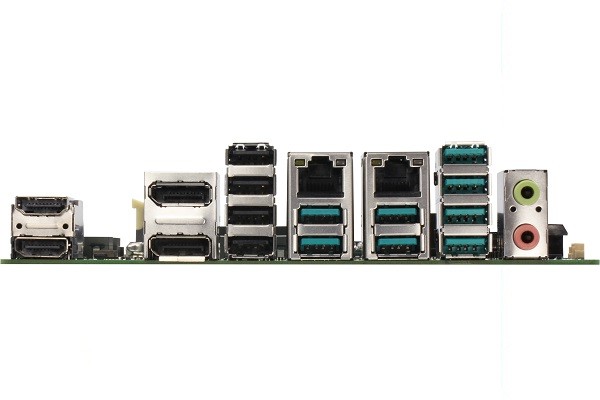

- HDMI2.0 x 2 + DP1.2 x 2
- M.2 Slot (M key) x 1, M.2 Slot (B key) x 1
- USB 3.2 Port x 8, USB 2.0 Port x 4
- Intel GbE LAN x 2
- SATA 6.0 Gb/s x 2
- PCI-Express [x16] x 1
- ATX Power
| PART NUMBER | MIX-Q670A1-A10 | MIX-Q670A1-A11-EK | MIX-Q670A1-A13-AN(available by request) |
|---|---|---|---|
| CPU | Socket | Socket | Socket |
| RAM | SODIMM x 2 | SODIMM x 2 | SODIMM x 2 |
| FAN/FANLESS | Fan | Fan | Fan |
| DISPLAY | HDMIx2, DPx2, LVDS/ eDPx1 | HDMIx2, DPx2, LVDS/ eDPx1 | HDMIx2, DPx2, LVDS/ eDPx1 |
| LVDS/EDP | 1 | 1 | 1 |
| STORAGE | SATA3 x2, M.2(M-key) | SATA3 x2, M.2(M-key) | SATA3 x2, M.2(M-key) |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB2.0 x 4, USB3.2 x 10 | USB2.0 x 2, USB3.2 x 10 | USB2.0 x 8, USB3.2 x 6 |
| RS-232 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 |
| EXPANSION SLOT | PCIe slot [x16] x 1, M.2(B-Key) x 1 | PCIe slot [x16] x 1, M.2(E-Key) x 1 | PCIe slot [x16] x 1, M.2(B-Key) x 1 |
| POWER | ATX | ATX | ATX |
| TPM | 2.0 | 2.0 | 2.0 |
| TEMP | 0~60˚C | 0~60˚C | 0~60˚C |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIX-Q670A1
Product information "MIX-Q670A1"
Mini-ITX with Intel® 12th Generation Core™ LGA1700 Socket Processor, Max. 65W TDPs, HDMI2.0 x 2 + DP1.2 x 2, Giga-LAN x 2, DDR5x2 Max. 64GB
Features include:
- 12th Gen. Intel® Core™ LGA1700 Processor
- DDR5 DRAM Support, 4800MHz, Max. 64GB
- HDMI2.0 x 2 + DP1.2 x 2
- M.2 Slot (M key) x 1, M.2 Slot (B key) x 1
- USB 3.2 Port x 8, USB 2.0 Port x 4
- Intel GbE LAN x 2
- SATA 6.0 Gb/s x 2
- PCI-Express [x16] x 1
- ATX Power
| PART NUMBER | MIX-Q670A1-A10 | MIX-Q670A1-A11-EK | MIX-Q670A1-A13-AN(available by request) |
|---|---|---|---|
| CPU | Socket | Socket | Socket |
| RAM | SODIMM x 2 | SODIMM x 2 | SODIMM x 2 |
| FAN/FANLESS | Fan | Fan | Fan |
| DISPLAY | HDMIx2, DPx2, LVDS/ eDPx1 | HDMIx2, DPx2, LVDS/ eDPx1 | HDMIx2, DPx2, LVDS/ eDPx1 |
| LVDS/EDP | 1 | 1 | 1 |
| STORAGE | SATA3 x2, M.2(M-key) | SATA3 x2, M.2(M-key) | SATA3 x2, M.2(M-key) |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB2.0 x 4, USB3.2 x 10 | USB2.0 x 2, USB3.2 x 10 | USB2.0 x 8, USB3.2 x 6 |
| RS-232 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 |
| EXPANSION SLOT | PCIe slot [x16] x 1, M.2(B-Key) x 1 | PCIe slot [x16] x 1, M.2(E-Key) x 1 | PCIe slot [x16] x 1, M.2(B-Key) x 1 |
| POWER | ATX | ATX | ATX |
| TPM | 2.0 | 2.0 | 2.0 |
| TEMP | 0~60˚C | 0~60˚C | 0~60˚C |
| CPU: | 12th Generation, 13th Generation, 14th Generation, Intel® Core 14th/13th/12th Gen i7/i5/i3, Pentium® & Celeron® - socket, LGA1700 socket |
|---|---|
| Processor Family: | Intel® Celeron®, Intel® Core, Intel® Pentium® |
| Memory : | Dual Channel DDR5 DDR5 SO-DIMM ×2 4800 MHz, Max. 64 GB |
| Display : | DP 1.2 ×2, DP up to 3840 × 2160 @60Hz, HDMI 2.0 ×2, HDMI up to 3840 × 2160 @60Hz |
| Storage : | SATA III x 2, M.2 M-Key 2280 x 1 |
| USB Ports: | USB 3.2 ×6, USB 2.0 ×8 (A13-AN), USB 3.2 ×10, USB 2.0 ×2 (A11-EK), USB 3.2 ×10, USB 2.0 ×4 (A10) |
| Expansion : | M.2 2230 E-Key x 1, M.2 3042 B-Key x1, M.2 3052 B-key x 1 |
| Power Requirement: | ATX 24-pin + ATX 12V connector, ATX power |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | Intel® Q670 Chipset, Mini-ITX form factor (170 mm × 170 mm) |
| Audio Technical Data: | Realtek ALC897/892 Audio x1 |
