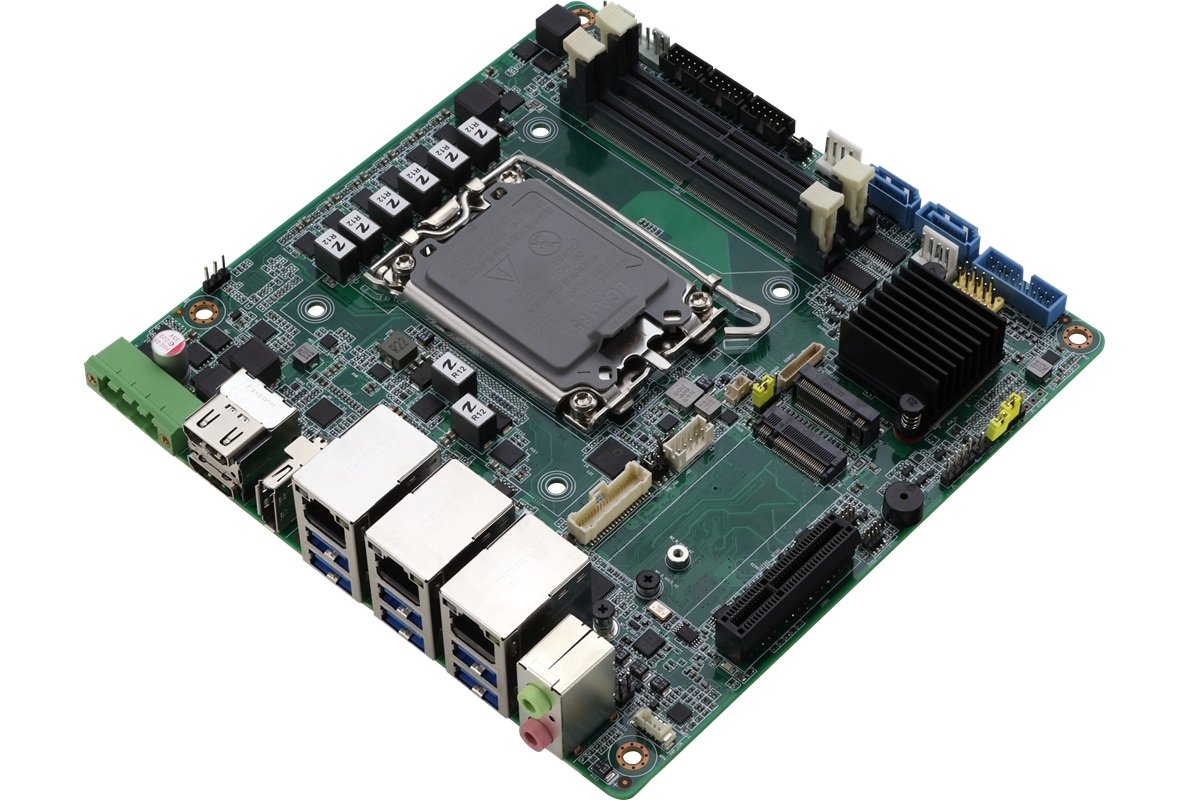

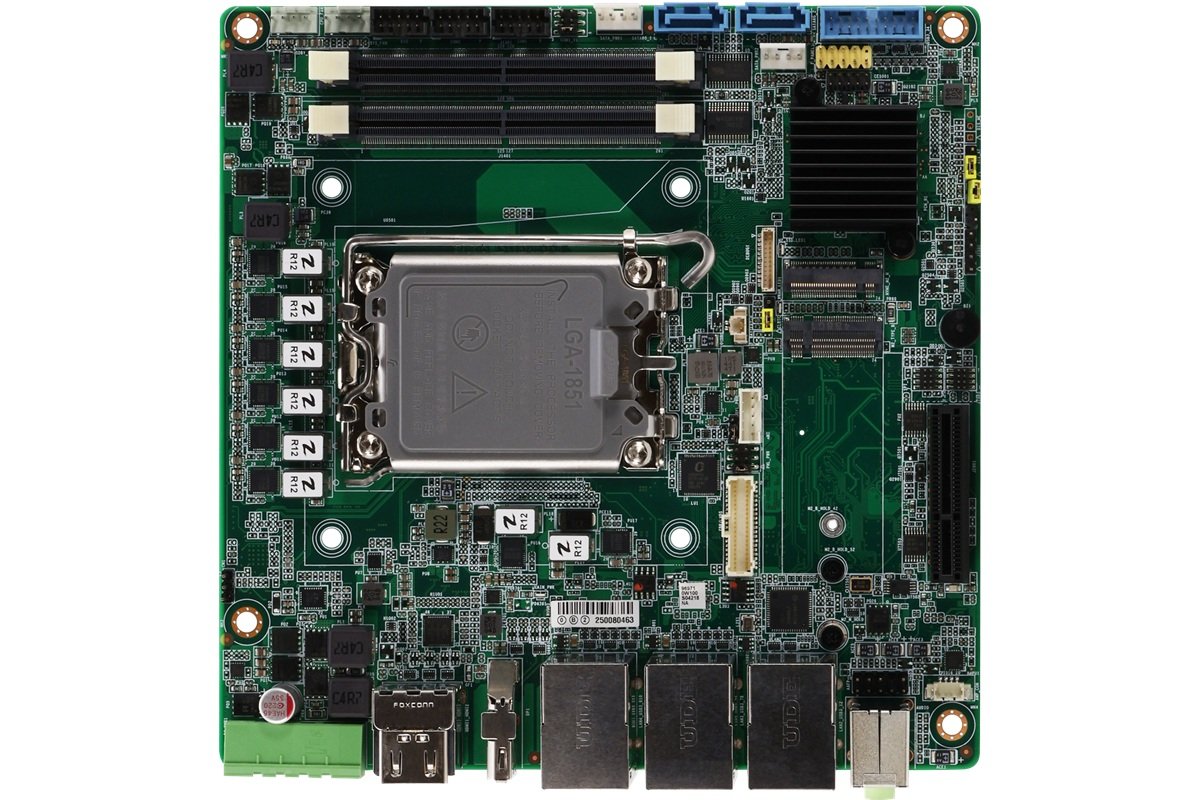

MIX-H810WV1
Mini-ITX with Intel® Core™ Ultra 200S Series Processors
Key features:Â
- Intel® Coreâ„¢ Ultra 200S SeriesÂ
- DDR5 up to 6400MHzÂ
- PCIe [x4] x 1, M.2 3042/52 B-key x 1Â
- USB 2.0 x 6, USB 3.2 Gen 1 x 2, USB 3.2 Gen 2 x 2Â
- SATA 6Gb/s x 2Â

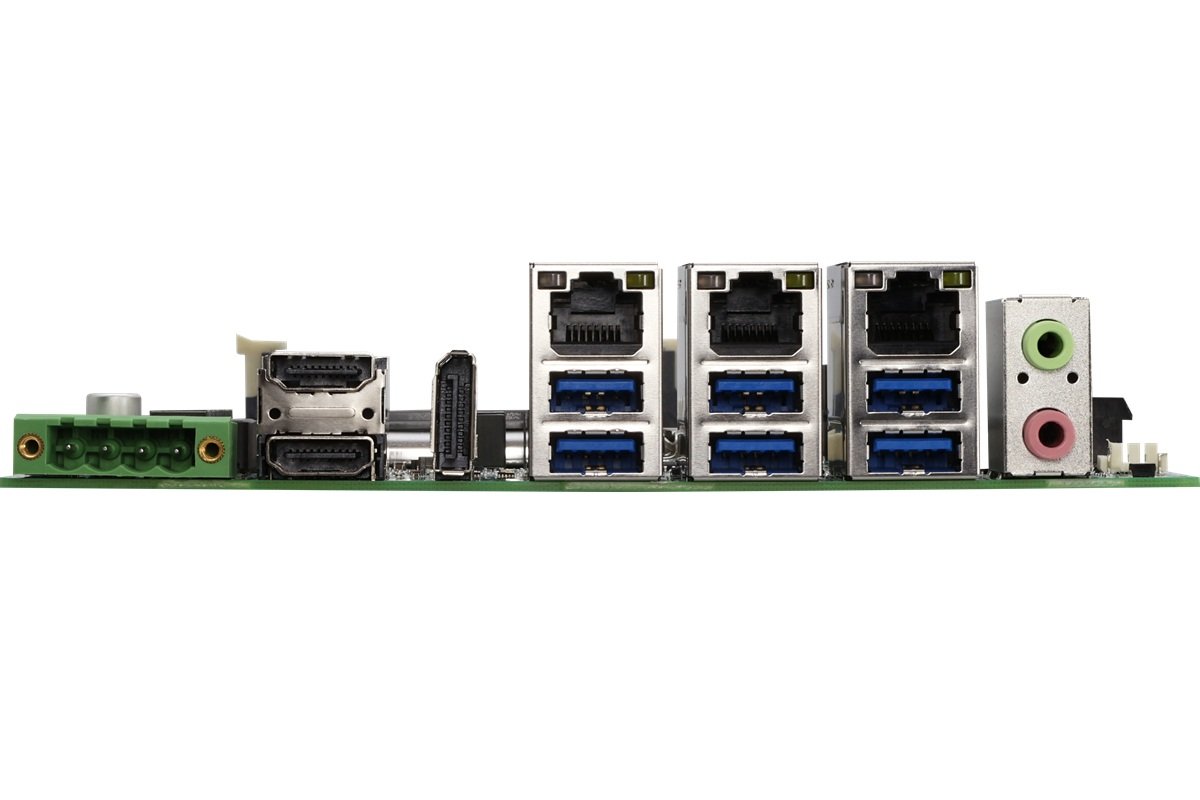

- HDMI 2.0 x 2, DP 1.4 x 1Â
- Intel® Ethernet Controller I226-V, 2.5GbE x 2Â
- DC-in 19V ~ 24VÂ
- Supports OOB function by BOM option
| PART NUMBER | MIX-H810WV1-A10-2L | MIX-H810WV1-A10-3LO | MIX-H810WV1-A11-2L |
|---|---|---|---|
| CPU | Intel® Core™ Ultra 200S Series | Intel® Core™ Ultra 200S Series | Intel® Core™ Ultra 200S Series |
| RAM | SODIMM/ CSODIMM x 2 | SODIMM/ CSODIMM x 2 | SODIMM/ CSODIMM x 2 |
| Fan/Fanless | Fan | Fan | Fan |
| Display | HDMI2.0 x 2, DP1.4 x 1 | HDMI2.0 x 2, DP1.4 x 1 | HDMI2.0 x 2, DP1.4 x 1 |
| LVDS/eDP | LVDS/eDP x 1 | LVDS/eDP x 1 | LVDS/eDP x 1 |
| Storage | SATA 6.0Gb/s x 2 M.2-1A M key x 1 | SATA 6.0Gb/s x 2 M.2-1A M key x 1 | SATA 6.0Gb/s x 2 M.2-1A M key x 1 |
| LAN | i226V x 2 | i226V x 2 + i210AT x 1 | i226V x 2 |
| USB | USB 3.2 x 4 USB 2.0 x 6 | USB 3.2 x 4 USB 2.0 x 6 | USB 3.2 x 4 USB 2.0 x 6 |
| RS- 232/422/485 | RS-232 x2 | RS-232 x2 | RS-232 x2 |
| RS-232 | RS-232/422/485 x 2 | RS-232/422/485 x 2 | RS-232/422/485 x 2 |
| Expansion Slot | PCIe[x4] x 1 B-key x 1 | PCIe[x4] x 1 B-key x 1 | PCIe[x4] x 1 E-key x 1 |
| Power | DC-in 19V~24V | DC-in 19V~24V | DC-in 19V~24V |
| TPM | TPM2.0 | TPM2.0 | TPM2.0 |
| Temp. | 0ËšC ~60ËšC | 0ËšC ~60ËšC OOB | 0ËšC ~60ËšC OOB |
| Note | — | OOB | — |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIX-H810WV1
Product information "MIX-H810WV1"
Mini-ITX with Intel® Core™ Ultra 200S Series Processors
Key features:Â
- Intel® Coreâ„¢ Ultra 200S SeriesÂ
- DDR5 up to 6400MHzÂ
- PCIe [x4] x 1, M.2 3042/52 B-key x 1Â
- USB 2.0 x 6, USB 3.2 Gen 1 x 2, USB 3.2 Gen 2 x 2Â
- SATA 6Gb/s x 2Â
- HDMI 2.0 x 2, DP 1.4 x 1Â
- Intel® Ethernet Controller I226-V, 2.5GbE x 2Â
- DC-in 19V ~ 24VÂ
- Supports OOB function by BOM option
| PART NUMBER | MIX-H810WV1-A10-2L | MIX-H810WV1-A10-3LO | MIX-H810WV1-A11-2L |
|---|---|---|---|
| CPU | Intel® Core™ Ultra 200S Series | Intel® Core™ Ultra 200S Series | Intel® Core™ Ultra 200S Series |
| RAM | SODIMM/ CSODIMM x 2 | SODIMM/ CSODIMM x 2 | SODIMM/ CSODIMM x 2 |
| Fan/Fanless | Fan | Fan | Fan |
| Display | HDMI2.0 x 2, DP1.4 x 1 | HDMI2.0 x 2, DP1.4 x 1 | HDMI2.0 x 2, DP1.4 x 1 |
| LVDS/eDP | LVDS/eDP x 1 | LVDS/eDP x 1 | LVDS/eDP x 1 |
| Storage | SATA 6.0Gb/s x 2 M.2-1A M key x 1 | SATA 6.0Gb/s x 2 M.2-1A M key x 1 | SATA 6.0Gb/s x 2 M.2-1A M key x 1 |
| LAN | i226V x 2 | i226V x 2 + i210AT x 1 | i226V x 2 |
| USB | USB 3.2 x 4 USB 2.0 x 6 | USB 3.2 x 4 USB 2.0 x 6 | USB 3.2 x 4 USB 2.0 x 6 |
| RS- 232/422/485 | RS-232 x2 | RS-232 x2 | RS-232 x2 |
| RS-232 | RS-232/422/485 x 2 | RS-232/422/485 x 2 | RS-232/422/485 x 2 |
| Expansion Slot | PCIe[x4] x 1 B-key x 1 | PCIe[x4] x 1 B-key x 1 | PCIe[x4] x 1 E-key x 1 |
| Power | DC-in 19V~24V | DC-in 19V~24V | DC-in 19V~24V |
| TPM | TPM2.0 | TPM2.0 | TPM2.0 |
| Temp. | 0ËšC ~60ËšC | 0ËšC ~60ËšC OOB | 0ËšC ~60ËšC OOB |
| Note | — | OOB | — |
| CPU: | Intel® Core™ Ultra 200S Series Processors (LGA1851) |
|---|---|
| Processor Family: | Intel® Core™ Ultra 200S Series |
| Memory : | DDR5 UDIMM ×2, up to 6400 MHz, Max. 96 GB (Non-ECC / ECC Un-buffered) |
| Display : | DP 1.4 ×1, DP up to 7680×4320 @60Hz, HDMI 2.0 ×2, HDMI up to 4096×2160 @60Hz |
| Storage : | SATA III x 2, M.2 M-Key 2280 x 1 |
| USB Ports: | USB 2.0 x2, USB3.2 GEN1 x 2 (header), USB 3.2 Gen2 x4 |
| Expansion : | M.2 2242 E-Key x 1, M.2 2280 E-key x 1, M.2 3042 E-Key x 1, PCIe x16 (Gen5) ×1 |
| Power Requirement: | 19V-24V |
| Operating Temperature : | -20 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | I226-V/IT 2.5GbE x 2 |
| Dimensions Technical Data: | 170mm x 170mm |
| Audio Technical Data: | Realtek ALC897/892 Audio x1 |
