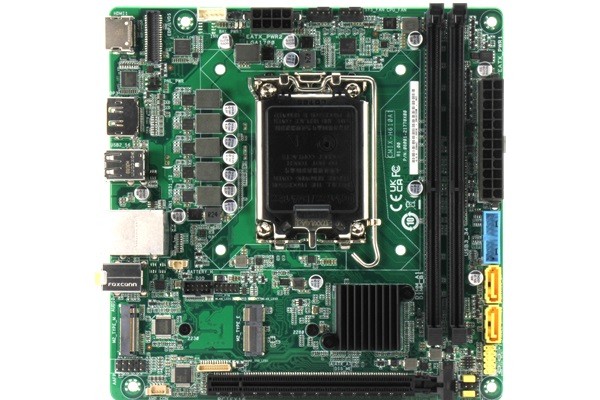

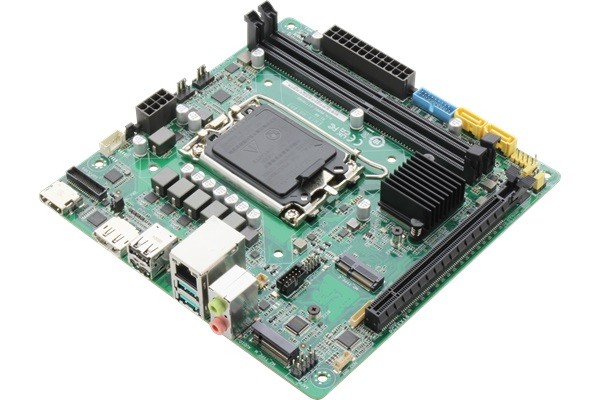

MIX-H610A2
Mini-ITX with 12th/13th/14th Generation Intel® Core™ LGA 1700 Socket Processors, Max. 65W TDP
Key features:
- 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processor
- Dual Channel DDR4 Support, 3200MHz, Max. 32GB
- HDMI 1.4 x 1 + DP 1.4 x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1
- USB 3.2 x 4, USB 2.0 x 4
- Realtek RTL8111H Ethernet x 1
- SATA 6Gb/s x 2
- PCIe [x16] slot x 1
- ATX power
| PART NUMBER | MIX-H610A2-A10 |
|---|---|
| CPU | Socket |
| RAM | U-DIMM x 2 |
| FAN/FANLESS | Fan |
| DISPLAY | HDMI x 1, DP x 1 |
| LVDS/EDP | LVDS x 1 |
| STORAGE | SATA 6Gb/s x 2, M.2 M-Key |
| LAN | GbE x 1 |
| USB | USB 3.2 x 4, USB 2.0 x 4 |
| RS-232 | — |
| RS-232/422/485 | — |
| EXPANSION SLOT | M.2 E-Key x 1, PCIe [x16] x 1 |
| POWER | ATX |
| TPM | fTPM |
| TEMP | 0~60˚C |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIX-H610A2
Product information "MIX-H610A2"
Mini-ITX with 12th/13th/14th Generation Intel® Core™ LGA 1700 Socket Processors, Max. 65W TDP
Key features:
- 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processor
- Dual Channel DDR4 Support, 3200MHz, Max. 32GB
- HDMI 1.4 x 1 + DP 1.4 x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1
- USB 3.2 x 4, USB 2.0 x 4
- Realtek RTL8111H Ethernet x 1
- SATA 6Gb/s x 2
- PCIe [x16] slot x 1
- ATX power
| PART NUMBER | MIX-H610A2-A10 |
|---|---|
| CPU | Socket |
| RAM | U-DIMM x 2 |
| FAN/FANLESS | Fan |
| DISPLAY | HDMI x 1, DP x 1 |
| LVDS/EDP | LVDS x 1 |
| STORAGE | SATA 6Gb/s x 2, M.2 M-Key |
| LAN | GbE x 1 |
| USB | USB 3.2 x 4, USB 2.0 x 4 |
| RS-232 | — |
| RS-232/422/485 | — |
| EXPANSION SLOT | M.2 E-Key x 1, PCIe [x16] x 1 |
| POWER | ATX |
| TPM | fTPM |
| TEMP | 0~60˚C |
| CPU: | 12th Generation, 13th Generation, 14th Generation, LGA1700 socket, Max. 65W TDP |
|---|---|
| Memory : | Dual Channel DDR4 DDR4 UDIMM ×2 3200 MHz, Max. 32 GB |
| Display : | DP 1.4 ×1, DP up to 4096 × 2160 @60Hz, HDMI 1.4 ×1, HDMI up to 4096×2160 @60Hz |
| Storage : | SATA III x 2, M.2 M-Key 2280 x 1 |
| USB Ports: | USB2.0 x 4 (header), USB 3.2 Gen2 x4 |
| Expansion : | M.2 2230 E-Key x 1, PCIe [x16] slot ×1 |
| Power Requirement: | ATX 24-pin + ATX 12V connector, ATX power |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | Audio: Realtek ALC897, Line-out / Mic-in, Intel® H610 Chipset, Mini-ITX form factor (170 mm × 170 mm), RTL8111H |
