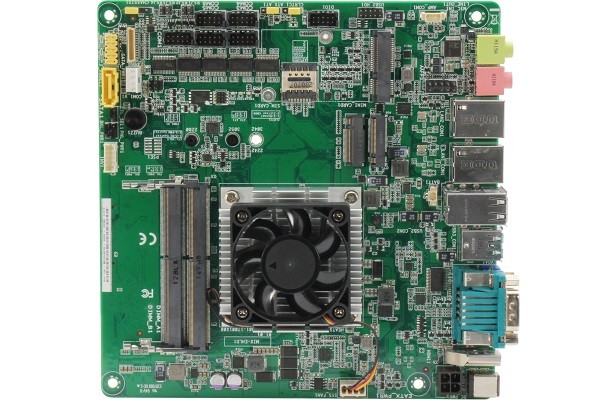

MIX-EHLD1
Mini-ITX with Intel Atom® x6000E Series/Intel® Pentium®/Celeron® N & J Series Processors (12W)
Key features:
- Intel Atom® x6000E Series/Intel® Pentium®/Celeron® N & J Series Processors (12W)Â
- DDR4 SODIMM x 2, Max 32GBÂ
- M.2 2280 M-Key x 1, M.2 3042/3052 B-Key, Mini Card x 1Â
- USB 3.2 Gen 1 x 2, USB 2.0 x 4Â
- LAN x 2Â
- HDMI 2.0 x 1, VGA x 1, LVDS/eDP x 1Â

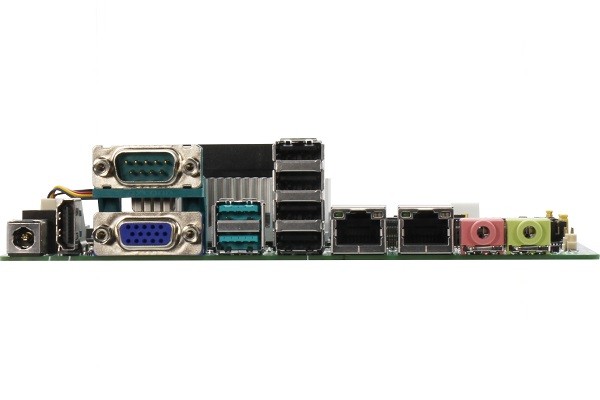

- Flexible rear I/O (Full I/O or Low-Profile)Â
- 12V DC input
| PART NUMBER | MIX-EHLD1-A11-J6412 | MIX-EHLD1-A11-X6413 |
|---|---|---|
| CPU | Intel® Celeron® Processor J6412 | Intel Atom® x6413E |
| RAM | SODIMM x 2 | SODIMM x 2 |
| FAN/FANLESS | Fan | Fan |
| DISPLAY | VGA,HDMI, LVDS/eDP | VGA,HDMI, LVDS/eDP |
| LVDS | Daul Channel 18/24 bit | Daul Channel 18/24 bit |
| STORAGE | SATA3 x 1, M.2(M-key) | SATA3 x 1, M.2(M-key) |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 2.0 x 6, USB 3.2 Gen 1 x 2 | USB 2.0 x 6, USB 3.2 Gen 1 x 2 |
| RS-232 | 5 | 5 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | Mini-Card x 1, M.2(B-Key) x 1 | Mini-Card x 1, M.2(B-Key) x 1 |
| POWER | 12V DC | 12V DC |
| TPM | 2.0 | 2.0 |
| TEMP | 32°F ~140°F (0°C ~ 60°C) | 32°F ~140°F (0°C ~ 60°C) |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIX-EHLD1
Product information "MIX-EHLD1"
Mini-ITX with Intel Atom® x6000E Series/Intel® Pentium®/Celeron® N & J Series Processors (12W)
Key features:
- Intel Atom® x6000E Series/Intel® Pentium®/Celeron® N & J Series Processors (12W)Â
- DDR4 SODIMM x 2, Max 32GBÂ
- M.2 2280 M-Key x 1, M.2 3042/3052 B-Key, Mini Card x 1Â
- USB 3.2 Gen 1 x 2, USB 2.0 x 4Â
- LAN x 2Â
- HDMI 2.0 x 1, VGA x 1, LVDS/eDP x 1Â
- Flexible rear I/O (Full I/O or Low-Profile)Â
- 12V DC input
| PART NUMBER | MIX-EHLD1-A11-J6412 | MIX-EHLD1-A11-X6413 |
|---|---|---|
| CPU | Intel® Celeron® Processor J6412 | Intel Atom® x6413E |
| RAM | SODIMM x 2 | SODIMM x 2 |
| FAN/FANLESS | Fan | Fan |
| DISPLAY | VGA,HDMI, LVDS/eDP | VGA,HDMI, LVDS/eDP |
| LVDS | Daul Channel 18/24 bit | Daul Channel 18/24 bit |
| STORAGE | SATA3 x 1, M.2(M-key) | SATA3 x 1, M.2(M-key) |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 2.0 x 6, USB 3.2 Gen 1 x 2 | USB 2.0 x 6, USB 3.2 Gen 1 x 2 |
| RS-232 | 5 | 5 |
| RS-232/422/485 | 1 | 1 |
| EXPANSION SLOT | Mini-Card x 1, M.2(B-Key) x 1 | Mini-Card x 1, M.2(B-Key) x 1 |
| POWER | 12V DC | 12V DC |
| TPM | 2.0 | 2.0 |
| TEMP | 32°F ~140°F (0°C ~ 60°C) | 32°F ~140°F (0°C ~ 60°C) |
| CPU: | Celeron® N & J Series Processors, Intel Atom® x6000E Series, Intel® Pentium® N, TDP 12W |
|---|---|
| Processor Family: | Celeron® N & J Series, Intel Atom® x6000E Series, Intel® Pentium® |
| Memory : | Dual-Channel DDR4 DDR4 SO-DIMM ×2 Max. 32 GB (Non-ECC) |
| Display : | HDMI 2.0 ×1, HDMI up to 4096×2160 @60Hz, LVDS / eDP ×1, LVDS up to 1920 × 1080 @60Hz, VGA, VGA up to 1920 × 1200 @60Hz, eDP up to 3840 × 2160 @30Hz |
| Storage : | SATA III x 2, M.2 M-Key 2280 x 1 |
| USB Ports: | USB2.0 x 4 (header), USB3.2 GEN1 x 2 (header) |
| Expansion : | M.2 3042 B-Key x1, M.2 3052 B-key x 1, Mini Card (Half Size) x 1, SIM |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |
| Ethernet Technical Data: | Audio: Realtek ALC897, Line-out / Mic-in, Mini-ITX form factor (170 mm × 170 mm), Realtek RTL8111H Gigabit Ethernet x 2, Watchdog timer |
