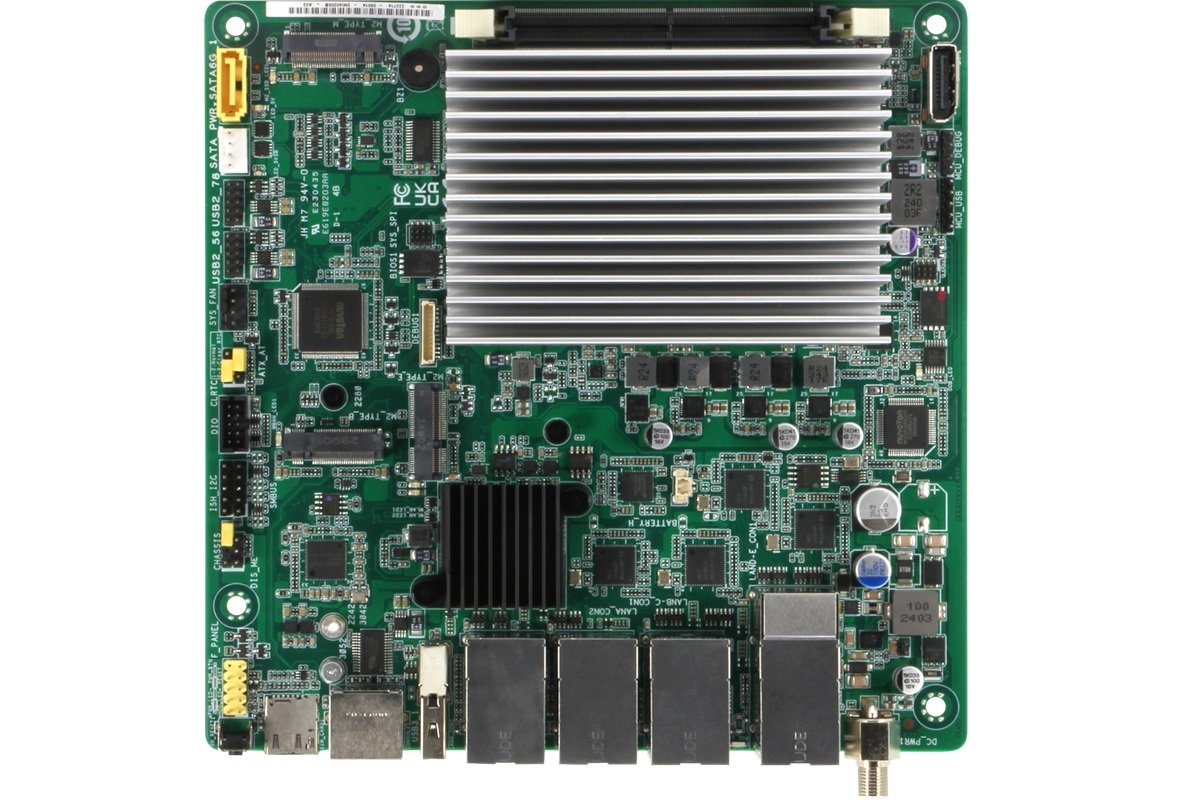

MIX-ASLD1
Mini-ITX with Intel® Processor N-series
Key features:
- Intel® Processor N-series (Next Generation Compatible)Â
- DDR5, 4800MHz, Max 16GBÂ
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3042/52 B-Key x 1 with SIM socketÂ
- USB 3.2 x 1, USB 2.0 x 4Â
- SATA 6Gb/s x 1Â
- PoE x 1, 1GbE LAN x 7Â
- Console Port x 1Â
- 12V DC-in powerÂ
- Software Reset Button x 1Â
- OOB Support (Onboard)Â
- DPDK Support
| PART NUMBER | MIX-ASLD1-A10-N97 |
|---|---|
| CPU | Intel® Processor N97 |
| RAM | SODIMM x 1 |
| Fan/Fanless | Fanless |
| Display | — |
| LVDS/eDP | — |
| Storage | SATA 6Gb/s x 1 M.2 M-Key x 1 |
| LAN | PoE x 1 1GbE LAN x 7 |
| USB | USB 2.0 x 4 USB 3.2 x 1 |
| RS-232 | — |
| RS-232/422/485 | — |
| Expansion Slot | M.2 B-Key x 1 M.2 E-Key x 1 Nano SIM Slot x 1 |
| Power | DC 12V |
| TPM | 2.0 |
| Temp. | 0ËšC ~60ËšC |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIX-ASLD1
Product information "MIX-ASLD1"
Mini-ITX with Intel® Processor N-series
Key features:
- Intel® Processor N-series (Next Generation Compatible)Â
- DDR5, 4800MHz, Max 16GBÂ
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3042/52 B-Key x 1 with SIM socketÂ
- USB 3.2 x 1, USB 2.0 x 4Â
- SATA 6Gb/s x 1Â
- PoE x 1, 1GbE LAN x 7Â
- Console Port x 1Â
- 12V DC-in powerÂ
- Software Reset Button x 1Â
- OOB Support (Onboard)Â
- DPDK Support
| PART NUMBER | MIX-ASLD1-A10-N97 |
|---|---|
| CPU | Intel® Processor N97 |
| RAM | SODIMM x 1 |
| Fan/Fanless | Fanless |
| Display | — |
| LVDS/eDP | — |
| Storage | SATA 6Gb/s x 1 M.2 M-Key x 1 |
| LAN | PoE x 1 1GbE LAN x 7 |
| USB | USB 2.0 x 4 USB 3.2 x 1 |
| RS-232 | — |
| RS-232/422/485 | — |
| Expansion Slot | M.2 B-Key x 1 M.2 E-Key x 1 Nano SIM Slot x 1 |
| Power | DC 12V |
| TPM | 2.0 |
| Temp. | 0ËšC ~60ËšC |
| CPU: | Intel® Processor N-series (N97, 4C, TDP 12W) |
|---|---|
| Processor Family: | Intel® Processor N-series (N97, 4C, TDP 12W) |
| Memory : | DDR5 4800MHz SO-DIMM ×1 Max. 16GB (Non-ECC, un-buffered memory) |
| Display : | DP (internal) ×1, HDMI, HDMI up to 3840 × 2160 @60Hz |
| Storage : | SATA III x 2, M.2 M-Key 2280 x 1 |
| USB Ports: | USB2.0 x 4 (header), USB 3.2 Gen 1 ×1 |
| Expansion : | M.2 2230 E-Key x 1, M.2 3042 B-Key x1, M.2 3052 B-key x 1, SIM |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| TPM : | TPM 2.0 |

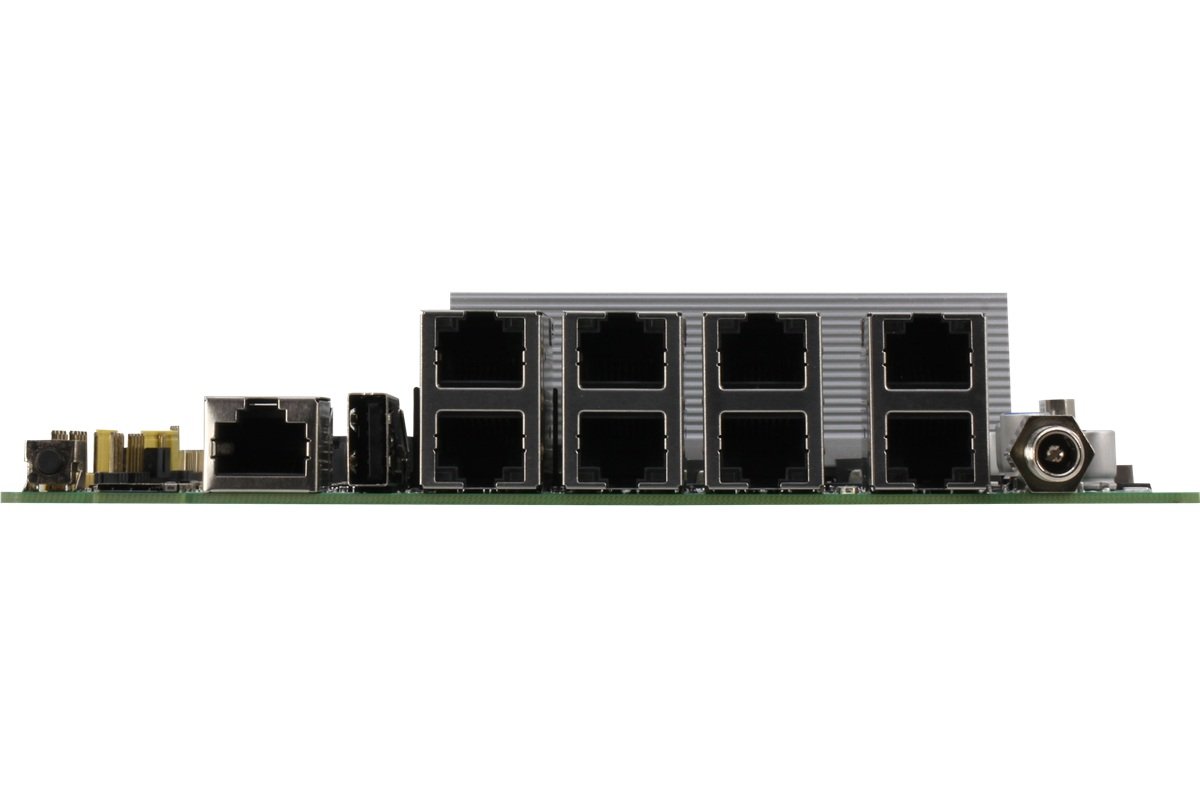

| Ethernet Technical Data: | Console Port ×1, DPDK Support, Intel® Ethernet Controller I210-AT ×1, Intel® Ethernet Controller I226-V ×6 (1GbE ×7 total, PoE ×1), Mini-ITX form factor (170 mm × 170 mm), OOB Module Support: MOD-MB (via i210-AT), Software Reset Button ×1 |
