MIX-ALND1

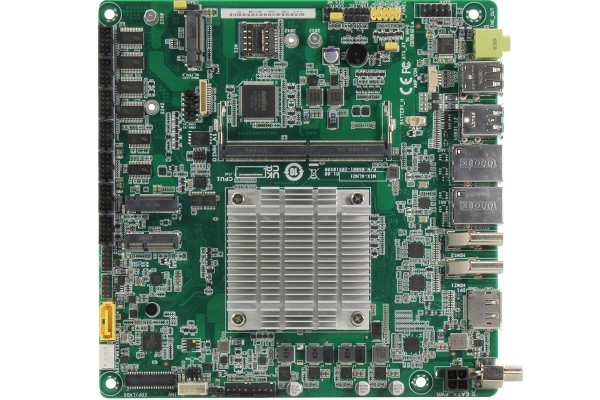

MIX-ALND1 | Alder Lake N | Mini-ITX with Intel Atom® x7000E Series and Intel® Processor N-series Processors
Key features:
- Intel Atom® x7000E Series and Intel® Processor N-series Processors
- DDR5 4800MHz SODIMM, Max 16GB

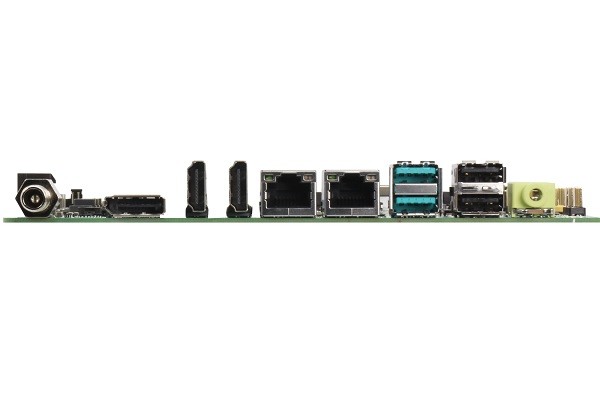

- HDMI 2.0 x 2 + DP 1.2 x 1, LVDS/eDP x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3042/52 B-Key x 1 withSIM socket
- USB 3.2 x 2, USB 2.0 x 6
- GbE x 2
- RS-232/422/485 Pin Header x 2, RS-232 Pin Header x 4
- SATA III x 1
- 12V DC Input
| PART NUMBER | MIX-ALND1-A11-N97 | MIX-ALND1-A10-N50 |
|---|---|---|
| CPU | Intel® Processor N97 | Intel® Processor N50 |
| RAM | DDR5 SODIMM x 1 | DDR5 SODIMM x 1 |
| FAN/FANLESS | Fanless | Fanless |
| DISPLAY | HDMI x 2, DP x 1 | HDMI x 2, DP x 1 |
| LVDS/EDP | 1 | 1 |
| STORAGE | SATA III x 1, M.2 M-key x 1 | SATA III x 1, M.2 M-key x 1 |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 2.0 x 6 , USB 3.2 x 2 | USB 2.0 x 6 , USB 3.2 x 2 |
| RS-232 | 4 | 4 |
| RS-232/422/485 | 2 | 2 |
| EXPANSION SLOT | M.2 B-Key x 1, M.2 E-Key x 1 | M.2 B-Key x 1, M.2 E-Key x 1 |
| POWER | DC 12V | DC 12V |
| TPM | fTPM | fTPM |
| TEMP | 0~60˚C | 0~60˚C |
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIX-ALND1
Product information "MIX-ALND1"
MIX-ALND1 | Alder Lake N | Mini-ITX with Intel Atom® x7000E Series and Intel® Processor N-series Processors
Key features:
- Intel Atom® x7000E Series and Intel® Processor N-series Processors
- DDR5 4800MHz SODIMM, Max 16GB
- HDMI 2.0 x 2 + DP 1.2 x 1, LVDS/eDP x 1
- M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, M.2 3042/52 B-Key x 1 withSIM socket
- USB 3.2 x 2, USB 2.0 x 6
- GbE x 2
- RS-232/422/485 Pin Header x 2, RS-232 Pin Header x 4
- SATA III x 1
- 12V DC Input
| PART NUMBER | MIX-ALND1-A11-N97 | MIX-ALND1-A10-N50 |
|---|---|---|
| CPU | Intel® Processor N97 | Intel® Processor N50 |
| RAM | DDR5 SODIMM x 1 | DDR5 SODIMM x 1 |
| FAN/FANLESS | Fanless | Fanless |
| DISPLAY | HDMI x 2, DP x 1 | HDMI x 2, DP x 1 |
| LVDS/EDP | 1 | 1 |
| STORAGE | SATA III x 1, M.2 M-key x 1 | SATA III x 1, M.2 M-key x 1 |
| LAN | GbE x 2 | GbE x 2 |
| USB | USB 2.0 x 6 , USB 3.2 x 2 | USB 2.0 x 6 , USB 3.2 x 2 |
| RS-232 | 4 | 4 |
| RS-232/422/485 | 2 | 2 |
| EXPANSION SLOT | M.2 B-Key x 1, M.2 E-Key x 1 | M.2 B-Key x 1, M.2 E-Key x 1 |
| POWER | DC 12V | DC 12V |
| TPM | fTPM | fTPM |
| TEMP | 0~60˚C | 0~60˚C |
| CPU: | Intel Atom® x7000E Series, Intel® Processor N-series (Alder Lake-N) |
|---|---|
| Processor Family: | Intel® Atom™ x7000E Series, Intel® Processor N-series |
| Memory : | DDR5 4800MHz SO-DIMM ×1 Max. 16GB (Non-ECC, un-buffered) |
| Display : | DP 1.2 ×1, DP up to 4096 × 2160 @60Hz, HDMI 2.0 ×2, HDMI up to 4096×2160 @60Hz, LVDS / eDP ×1, LVDS up to 1920 × 1200 @60Hz |
| Storage : | SATA III x 2, M.2 M-Key 2280 x 1 |
| USB Ports: | USB 2.0 x6, USB3.2 GEN2 x 2 (Rear) |
| Expansion : | M.2 2230 E-Key x 1, M.2 3042 B-Key x1, M.2 3052 B-key x 1, SIM |
| Power Requirement: | 12v |
| Operating Temperature : | 0 to +60 degC |
| Ethernet Technical Data: | Mini-ITX form factor (170 mm × 170 mm), RS-232 Pin Header ×4, RS-232/422/485 Pin Header ×2, Realtek RTL8111H Gigabit Ethernet x 2 |
