MINMAX Technology

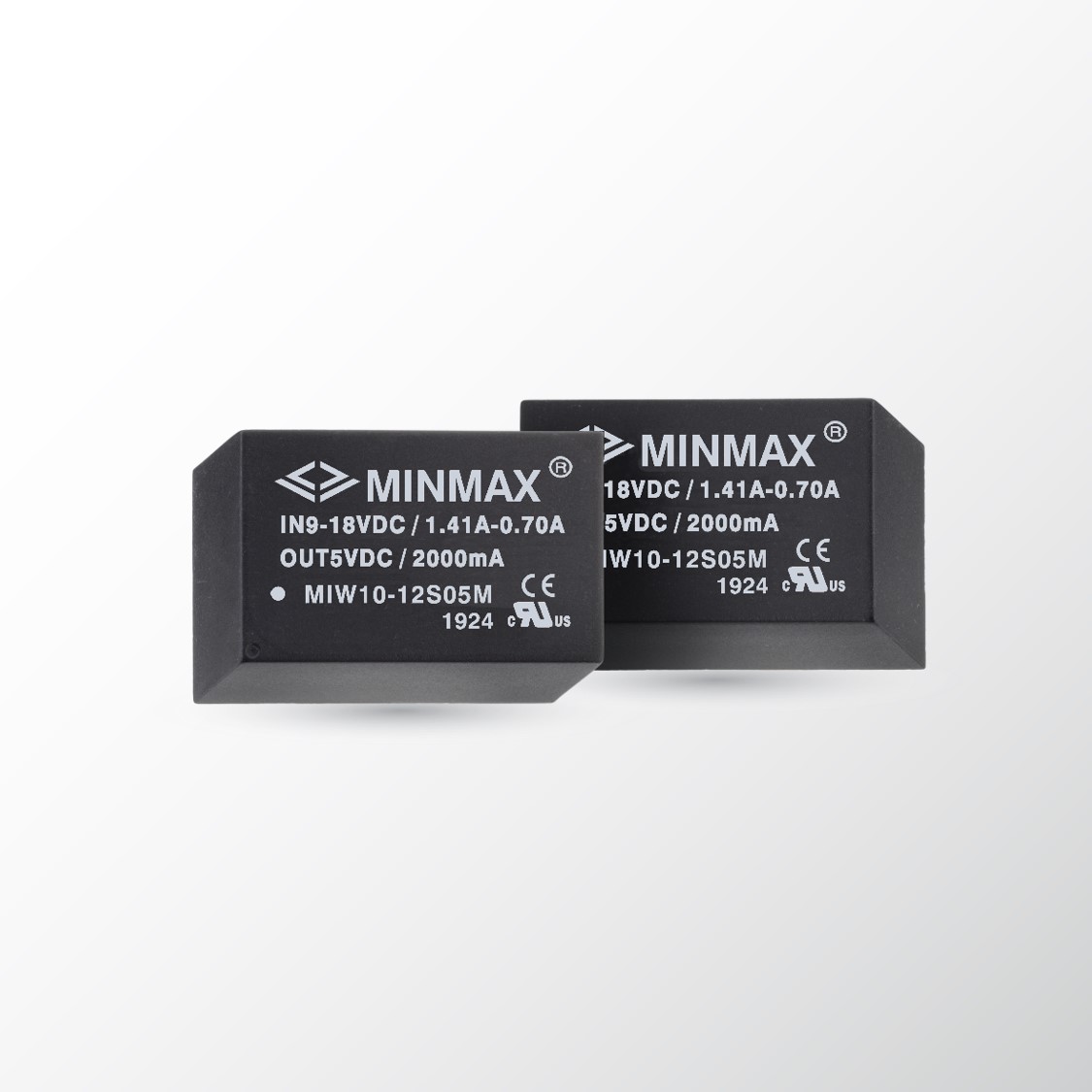

MIW10M
MIW10M
DC-DC Power Supply
10W Medical Power Supply
Key Features:
- Fully Regulated Output Voltage
- I/O Isolation 5000VAC with Reinforced Insulation, rated for 250Vrms Working Voltage
- Creepage & Clearance Distance meet 8mm
- No Min. Load Requirement
- Under-voltage, Overload and Short Circuit Protection
Approvals: EN 55011 Class A, EN 60601-1-2, 2xMOPP, EN 60601-1, CE
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIW10M
Product information "MIW10M"
DC-DC Power Supply
10W Medical Power Supply
Key Features:
- Fully Regulated Output Voltage
- I/O Isolation 5000VAC with Reinforced Insulation, rated for 250Vrms Working Voltage
- Creepage & Clearance Distance meet 8mm
- No Min. Load Requirement
- Under-voltage, Overload and Short Circuit Protection
Approvals: EN 55011 Class A, EN 60601-1-2, 2xMOPP, EN 60601-1, CE
| Cooling Method: | Convection |
|---|---|
| Format: | PCB Mount |
| Input Voltage: | 9-18, 18-36, 36-75V |
| Market Sector: | Industrial, Medical |
| No. of Outputs: | Single |
| Operating Temp Range: | -40 to +90 degC |
| Output Power: | Up to 10W |
| Output Voltage: | 3.3, 5, 5.1, 12, 15, 24, ±12, ±15V |
| Power Format: | PCB Mount |
| Power Type: | DC-DC |
