MINMAX Technology
MIW06M-12
MIW06M-12

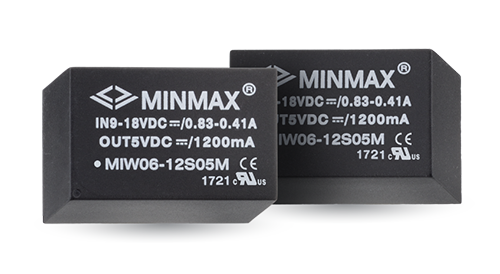

The MINMAX MIW06M series – an innovative range of
high-performance 6W medical-approved DC-DC converters encapsulated in a DIP-24
package, purposefully designed for medical applications. With an extensive
selection of 15 models supporting input voltages of 12, 24, and 48VDC, featuring
a wide 2:1 input range and fixed output voltage, this series ensures
adaptability to diverse medical device specifications.
The MIW06M series boasts an I/O isolation specified for 5000VAC with reinforced insulation, rated for a reliable 250Vrms working voltage. Advanced features include under-voltage, overload, over-voltage, and short-circuit protection, along with no minimum load requirement, conducted EMI EN 55011 class A approval, low I/O leakage current of 2µA max, and an operating ambient temperature range from -40℃ to +95℃ without derating, achieved through high efficiency up to 89%.
Aligned with the 4th edition medical EMC standard, the MIW06M series holds medical safety approval with 2xMOPP (Means Of Patient Protection) per the 3.2 Edition of IEC/EN 60601-1 & ANSI/AAMI ES 60601-1, incorporating an 8mm creepage and clearance.
Read More
The MIW06M series boasts an I/O isolation specified for 5000VAC with reinforced insulation, rated for a reliable 250Vrms working voltage. Advanced features include under-voltage, overload, over-voltage, and short-circuit protection, along with no minimum load requirement, conducted EMI EN 55011 class A approval, low I/O leakage current of 2µA max, and an operating ambient temperature range from -40℃ to +95℃ without derating, achieved through high efficiency up to 89%.
Aligned with the 4th edition medical EMC standard, the MIW06M series holds medical safety approval with 2xMOPP (Means Of Patient Protection) per the 3.2 Edition of IEC/EN 60601-1 & ANSI/AAMI ES 60601-1, incorporating an 8mm creepage and clearance.
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIW06M-12
Product information "MIW06M-12"
The MINMAX MIW06M series – an innovative range of
high-performance 6W medical-approved DC-DC converters encapsulated in a DIP-24
package, purposefully designed for medical applications. With an extensive
selection of 15 models supporting input voltages of 12, 24, and 48VDC, featuring
a wide 2:1 input range and fixed output voltage, this series ensures
adaptability to diverse medical device specifications.
The MIW06M series boasts an I/O isolation specified for 5000VAC with reinforced insulation, rated for a reliable 250Vrms working voltage. Advanced features include under-voltage, overload, over-voltage, and short-circuit protection, along with no minimum load requirement, conducted EMI EN 55011 class A approval, low I/O leakage current of 2µA max, and an operating ambient temperature range from -40℃ to +95℃ without derating, achieved through high efficiency up to 89%.
Aligned with the 4th edition medical EMC standard, the MIW06M series holds medical safety approval with 2xMOPP (Means Of Patient Protection) per the 3.2 Edition of IEC/EN 60601-1 & ANSI/AAMI ES 60601-1, incorporating an 8mm creepage and clearance.
The MIW06M series boasts an I/O isolation specified for 5000VAC with reinforced insulation, rated for a reliable 250Vrms working voltage. Advanced features include under-voltage, overload, over-voltage, and short-circuit protection, along with no minimum load requirement, conducted EMI EN 55011 class A approval, low I/O leakage current of 2µA max, and an operating ambient temperature range from -40℃ to +95℃ without derating, achieved through high efficiency up to 89%.
Aligned with the 4th edition medical EMC standard, the MIW06M series holds medical safety approval with 2xMOPP (Means Of Patient Protection) per the 3.2 Edition of IEC/EN 60601-1 & ANSI/AAMI ES 60601-1, incorporating an 8mm creepage and clearance.
| Industry: | Medical Safety |
|---|---|
| Input Voltage: | 12V |
| Operating Temp Range: | -40 to +95 degC |
| Output Power: | 6W |
| Output Voltage: | 5, 12, 15, ±12, ±15V |
| Package: | DIP-24 |
| Power Type: | DC-DC |
