MIW03M-24
MIW03M-24
The

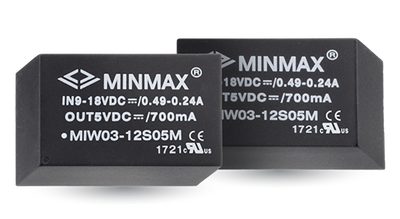

MINMAX MIW03M series - an innovative range of high-performance 3.5W
medical-approved DC-DC converters encapsulated in a DIP-24 package,
purposefully designed for medical applications. With an extensive selection of
21 models supporting input voltages of 5, 12, 24, and 48VDC, featuring a wide
2:1 input range and fixed output voltage, this series ensures adaptability to
diverse medical device specifications. The MIW03M series boasts an I/O
isolation specified for 5000VAC with reinforced insulation, rated for a
reliable 250Vrms working voltage. Advanced features include under-voltage,
overload, over-voltage, and short-circuit protection, along with no minimum
load requirement, conducted EMI EN 55011 class A approval, low I/O leakage
current of 2µA max, and an operating ambient temperature range from -40℃ to +96℃ without derating, achieved through high
efficiency up to 87%
Read More
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
MIW03M-24
Product information "MIW03M-24"
The
MINMAX MIW03M series - an innovative range of high-performance 3.5W
medical-approved DC-DC converters encapsulated in a DIP-24 package,
purposefully designed for medical applications. With an extensive selection of
21 models supporting input voltages of 5, 12, 24, and 48VDC, featuring a wide
2:1 input range and fixed output voltage, this series ensures adaptability to
diverse medical device specifications. The MIW03M series boasts an I/O
isolation specified for 5000VAC with reinforced insulation, rated for a
reliable 250Vrms working voltage. Advanced features include under-voltage,
overload, over-voltage, and short-circuit protection, along with no minimum
load requirement, conducted EMI EN 55011 class A approval, low I/O leakage
current of 2µA max, and an operating ambient temperature range from -40℃ to +96℃ without derating, achieved through high
efficiency up to 87%
| Industry: | Medical Safety |
|---|---|
| Input Voltage: | 24V |
| Operating Temp Range: | -40 to +97 degC |
| Output Power: | 3.5W |
| Output Voltage: | 5, 5.8, 12, 15, ±12, ±15V |
| Package: | DIP |
| Power Type: | DC-DC |
